1.产 品 资 料 介 绍：

GIDDINGS & LEWIS 503-26683-01 以太网模块

产品概述

503-26683-01 是 Giddings & Lewis 的一款 工业以太网通信模块，用于实现数控机床或自动化系统与上位控制系统之间的高速数据传输。该模块通过标准以太网接口，将控制器、I/O 模块和伺服系统的数据进行实时交换，支持远程监控、数据采集和工业网络集成。

产品应用领域

1. 数控机床（CNC）

• 实现机床与工厂管理系统（MES/ERP）之间的数据通信。

• 支持远程监控、程序传输及加工状态反馈。

2. 工业自动化生产线

• 连接控制器、传感器和执行机构，实现生产线的数据集中管理。

• 提升生产调度和自动化管理效率。

3. 机器人系统

• 支持机器人控制器与上位系统的网络通信，实现远程监控和任务调度。

4. 包装与印刷机械

• 将设备运行状态、生产数据和故障信息实时上传到监控系统。

5. 实验及测试平台

• 提供实验设备或测试系统的实时数据传输与监控接口，便于分析和控制。

英文资料：

GIDINGS&LEWIS 503-26683-01 Ethernet Module

Product Overview

503-26683-01 is an industrial Ethernet communication module from Giddings&Lewis, used to achieve high-speed data transmission between CNC machine tools or automation systems and upper control systems. This module exchanges real-time data between the controller, I/O module, and servo system through a standard Ethernet interface, supporting remote monitoring, data acquisition, and industrial network integration.

Product application areas

Numerical Control Machine Tool (CNC)

Realize data communication between machine tools and factory management systems (MES/ERP).

Support remote monitoring, program transmission, and processing status feedback.

Industrial automation production line

Connect controllers, sensors, and actuators to achieve centralized data management of the production line.

Improve production scheduling and automation management efficiency.

robot system

Support network communication between robot controllers and upper level systems to achieve remote monitoring and task scheduling.

Packaging and Printing Machinery

Upload real-time device operating status, production data, and fault information to the monitoring system.

Experimental and testing platform

Provide real-time data transmission and monitoring interfaces for experimental equipment or testing systems, facilitating analysis and control.

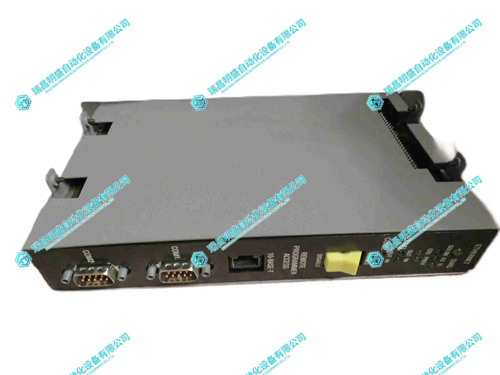

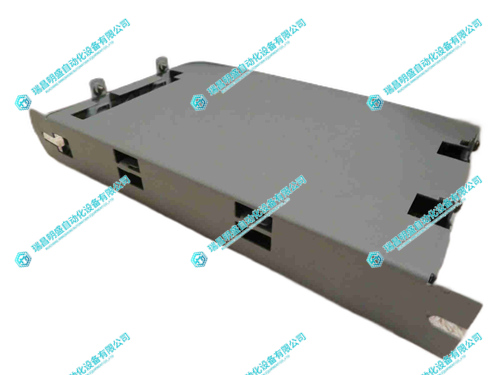

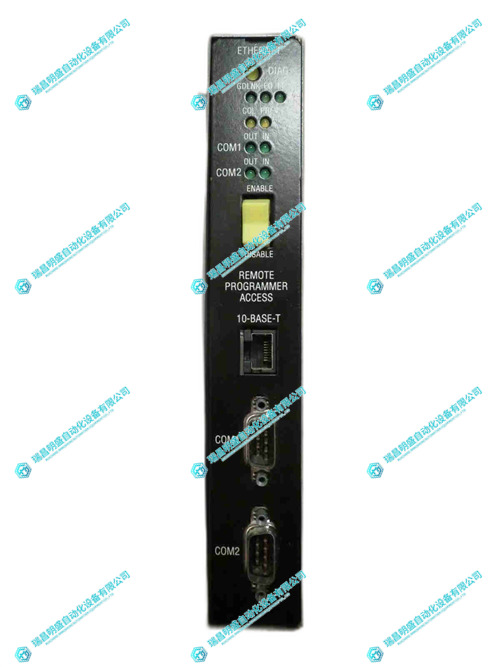

2.产      品      展      示
