GIDINGS&LEWIS 502-03093-41双总线印刷电路板 PDF资料

1.产 品 资 料 介 绍：

GIDDINGS & LEWIS 502-03093-41 双总线印刷电路板

产品概述

Giddings & Lewis 502-03093-41 是一款 双总线印刷电路板（Dual Bus PCB），用于工业控制系统中的数据交换与信号管理。该模块通过双总线架构提供冗余通信能力和高速数据传输，确保数控系统和自动化生产线的可靠性和连续运行。它是中央控制板、I/O 模块和伺服模块之间的重要连接枢纽。

技术参数（典型特性）

• 模块类型：双总线印刷电路板（Dual Bus PCB）

• 总线架构：双总线设计，提供主/备通信通道，支持冗余操作

• 数据接口：适配 G&L 系列控制器及外部 I/O 模块

• 信号类型：数字与模拟信号兼容，保证数据完整性

• 电源需求：+5 V 直流逻辑电源

• 状态指示：LED 显示总线状态和故障诊断

• 工作环境：

• 温度：0 °C ~ 55 °C

• 湿度：5% ~ 95%，无凝露

• 保护功能：过压、短路保护及信号隔离设计

应用场景

1. 数控机床（CNC）系统

• 作为中央控制与各 I/O、伺服模块之间的数据通信枢纽，保证加工精度和动作协调。

2. 工业自动化生产线

• 实现各工位控制器、传感器和执行器间的高速可靠数据传输。

• 提升生产线稳定性和自动化水平。

3. 机器人系统

• 支持机器人控制单元与传感器、执行机构之间的冗余通信。

• 增强多关节协作和运动同步的可靠性。

4. 包装与印刷设备

• 保障高速印刷和包装设备中传感器与驱动系统的数据同步与稳定性。

5. 测试与实验平台

• 在研发或实验装置中，实现多模块间可靠数据交换，保证实验数据准确性。

英文资料：

GIDINGS&LEWIS 502-03093-41 Dual Bus Printed Circuit Board

Product Overview

Giddings&Lewis 502-03093-41 is a Dual Bus PCB used for data exchange and signal management in industrial control systems. This module provides redundant communication capabilities and high-speed data transmission through a dual bus architecture, ensuring the reliability and continuous operation of CNC systems and automated production lines. It is an important connection hub between the central control board, I/O modules, and servo modules.

Technical parameters (typical characteristics)

Module type: Dual Bus PCB

Bus architecture: Dual bus design, providing primary/backup communication channels, supporting redundant operations

Data interface: compatible with G&L series controllers and external I/O modules

Signal type: compatible with digital and analog signals to ensure data integrity

Power requirement:+5V DC logic power supply

Status indication: LED displays bus status and fault diagnosis

Work environment:

Temperature: 0 ° C~55 ° C

Humidity: 5%~95%, no condensation

Protection function: overvoltage, short circuit protection, and signal isolation design

Application scenarios

Numerical Control Machine Tool (CNC) System

As a data communication hub between the central control and various I/O and servo modules, it ensures machining accuracy and motion coordination.

Industrial automation production line

Realize high-speed and reliable data transmission between controllers, sensors, and actuators at each workstation.

Improve the stability and automation level of the production line.

robot system

Support redundant communication between robot control units, sensors, and actuators.

Enhance the reliability of multi joint collaboration and motion synchronization.

Packaging and Printing Equipment

Ensure data synchronization and stability between sensors and drive systems in high-speed printing and packaging equipment.

Testing and experimental platform

In research and development or experimental equipment, reliable data exchange between multiple modules is achieved to ensure the accuracy of experimental data.

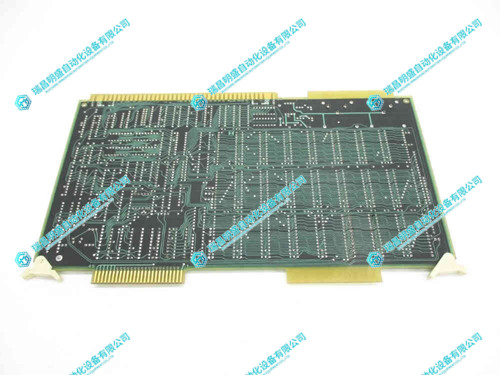

2.产      品      展      示
