GIDDINGS & LEWIS 502-02724-51接口电路板  PDF资料

1.产 品 资 料 介 绍：

产品概述

GIDDINGS & LEWIS 502-02724-51 接口电路板是一款用于工业自动化和数控系统的核心信号接口模块。它主要用于在控制器与外围设备之间传递数字信号或模拟信号，实现信号采集、分配和隔离。该模块能够有效提升系统的信号处理能力和稳定性，是复杂机床及自动化生产线中不可或缺的接口单元。

技术参数（典型）

• 接口类型：数字输入/输出或模拟信号接口

• 通道数：多通道设计，支持多路信号交互

• 信号隔离：具备光电隔离或电气隔离功能，提高抗干扰能力

• 电源要求：典型 24VDC 工业电源

• 响应速度：毫秒级或更快，满足实时控制要求

• 安装方式：模块化插卡设计，可嵌入机柜或机架

• 保护功能：过载、过压、短路及信号异常保护

• 状态指示：LED显示模块及通道状态，便于调试与维护

应用场景

1. 数控机床系统

• 作为控制器与伺服驱动器、步进电机及传感器之间的信号桥梁，实现精确加工动作控制。

2. 自动化生产线

• 协调装配、输送及分拣设备的信号传递，保证工艺动作同步。

3. 工业机器人

• 采集末端执行器和夹具的状态信号，实现多轴联动控制。

4. 包装与印刷机械

• 管理纸张或薄膜位置传感器信号，保证送料、切割和封装动作的精度。

5. 能源与过程控制设备

• 采集温度、压力、流量等传感器信号，为自动化控制提供数据支持。

6. 实验与测试平台

• 在多通道信号采集和执行动作控制中提供接口功能，确保实验数据准确。

英文资料：

Product Overview

The GIDINGS&LEWIS 502-02724-51 interface circuit board is a core signal interface module used in industrial automation and numerical control systems. It is mainly used to transmit digital or analog signals between controllers and peripheral devices, achieving signal acquisition, distribution, and isolation. This module can effectively enhance the signal processing capability and stability of the system, and is an indispensable interface unit in complex machine tools and automated production lines.

Technical parameters (typical)

Interface type: digital input/output or analog signal interface

Number of channels: Multi channel design, supporting multiple signal interactions

Signal isolation: equipped with photoelectric or electrical isolation functions to improve anti-interference ability

Power requirement: Typical 24VDC industrial power supply

Response speed: milliseconds or faster, meeting real-time control requirements

Installation method: Modular card insertion design, can be embedded in cabinets or racks

Protection function: Overload, overvoltage, short circuit, and signal abnormality protection

Status indication: LED display module and channel status for easy debugging and maintenance

Application scenarios

Numerical Control Machine Tool System

As a signal bridge between the controller and servo drivers, stepper motors, and sensors, it achieves precise machining action control.

Automatic production line

Coordinate the signal transmission of assembly, conveying, and sorting equipment to ensure synchronous process actions.

industrial robot

Collect status signals of end effectors and fixtures to achieve multi axis linkage control.

Packaging and Printing Machinery

Manage paper or film position sensor signals to ensure the accuracy of feeding, cutting, and packaging actions.

Energy and Process Control Equipment

Collect sensor signals such as temperature, pressure, and flow rate to provide data support for automation control.

Experimental and testing platform

Provide interface functionality in multi-channel signal acquisition and action control to ensure accurate experimental data.

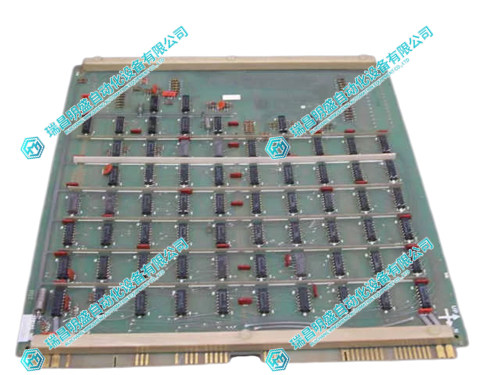

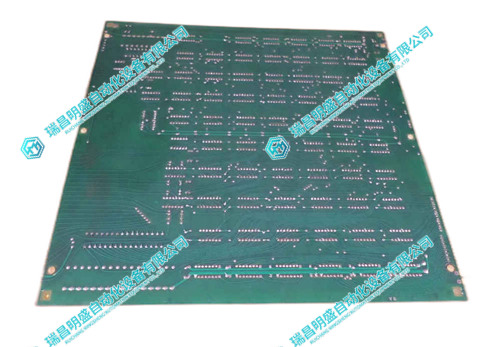

2.产      品      展      示
