GIDDINGS & LEWIS HSM620无刷伺服电机 PDF资料

1.产 品 资 料 介 绍：

产品概述

GIDDINGS & LEWIS HSM620 无刷伺服电机是一款为高性能运动控制而设计的交流无刷伺服电机。该电机结合高精度反馈装置与优化的电磁设计，能够在高速、高精度及高动态响应的工况下运行。HSM 系列电机广泛应用于数控机床、自动化生产线和工业机器人，是G&L运动控制系统的重要执行单元。

技术参数（典型）

• 类型：AC 无刷伺服电机

• 额定功率：中到高功率等级（适用于高惯量负载）

• 额定电压：常见 230V / 400V 工业电源

• 额定转速：3000 rpm（可选高速版本）

• 反馈装置：内置高分辨率光电编码器 / 解析器，支持闭环控制

• 控制模式：位置 / 速度 / 扭矩

• 冷却方式：自然冷却 / 外部风冷

• 保护等级：IP65（典型，适合工业环境）

• 接口：标准电机电源与反馈接口，兼容G&L伺服驱动器

（实际数值需参考电机铭牌或官方手册）

应用场景

1. 数控机床

• 驱动主轴或各进给轴，满足高速切削、重负载加工的需求。

2. 自动化生产线

• 用于装配、输送、分拣等环节，保证动作的同步与高效率。

3. 工业机器人

• 作为关节驱动单元，支持复杂轨迹与高精度重复定位。

4. 包装与印刷设备

• 实现高速走纸、切割与定位，保证节拍一致性。

5. 纺织机械

• 在卷绕、送料、张力控制中提供稳定驱动。

6. 测试平台与实验设备

• 用于要求高精度、高动态的运动控制试验系统。

英文资料：

Product Overview

GIDINGS&LEWIS HSM620 brushless servo motor is an AC brushless servo motor designed for high-performance motion control. The motor, combined with high-precision feedback device and optimized electromagnetic design, can operate under high-speed, high-precision, and high dynamic response conditions. HSM series motors are widely used in CNC machine tools, automated production lines, and industrial robots, and are important execution units of G&L motion control systems.

Technical parameters (typical)

Type: AC brushless servo motor

Rated power: medium to high power level (applicable to high inertia loads)

Rated voltage: common 230V/400V industrial power supply

Rated speed: 3000 rpm (optional high-speed version)

Feedback device: Built in high-resolution photoelectric encoder/parser, supporting closed-loop control

Control mode: Position/Speed/Torque

Cooling method: natural cooling/external air cooling

Protection level: IP65 (typical, suitable for industrial environments)

Interface: Standard motor power supply and feedback interface, compatible with G&L servo drives

(Actual values should refer to the motor nameplate or official manual)

Application scenarios

CNC machine tool

Drive the spindle or feed axes to meet the needs of high-speed cutting and heavy-duty machining.

Automatic production line

Used for assembly, transportation, sorting and other processes to ensure synchronization and high efficiency of actions.

industrial robot

As a joint driving unit, it supports complex trajectories and high-precision repetitive positioning.

Packaging and Printing Equipment

Realize high-speed paper feeding, cutting, and positioning to ensure consistent rhythm.

textile machinery

Provide stable driving in winding, feeding, and tension control.

Testing platform and experimental equipment

Used for motion control test systems that require high precision and high dynamics.

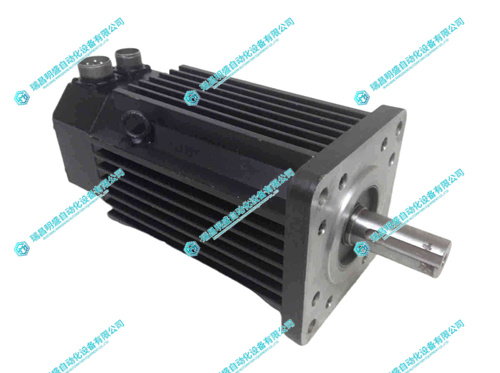

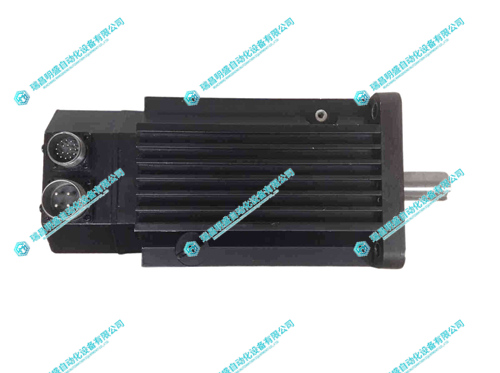

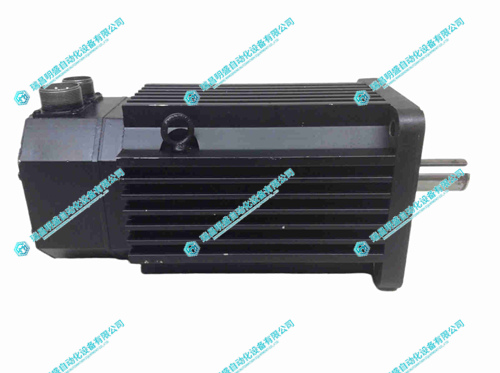

2.产      品      展      示
