GIDDINGS & LEWIS 502-03419-00伺服控制板 PDF资料

1.产 品 资 料 介 绍：

产品概述

GIDDINGS & LEWIS 502-03419-00 伺服控制板是一款工业级运动控制模块，专为伺服电机驱动和多轴机械系统设计。它通过精确处理来自上位控制器的指令，控制伺服电机的速度、位置和扭矩，实现机械设备的高精度运动控制。该控制板通常与数控机床、自动化生产线和工业机器人配合使用，是 G&L 系统实现运动控制的核心单元之一。

技术参数

• 控制类型：闭环伺服控制，支持位置、速度和扭矩控制模式。

• 输入/输出接口：提供多路数字量输入和输出接口，可接收编码器反馈信号。

• 电机兼容性：适用于 GIDDINGS & LEWIS 无刷交流伺服电机及其他工业伺服电机。

• 响应特性：高速信号处理，保证电机动作精确及时。

• 保护功能：具备过流、过载、过温及短路保护，提升系统可靠性。

• 模块化设计：便于安装、扩展和与其他控制模块组合使用。

• 工业适应性：抗振动、耐高温、抗电磁干扰，适合工业环境。

应用场景

1. 数控机床

• 精确控制主轴、刀架及进给轴，实现多轴联动加工。

2. 自动化生产线

• 管理输送、装配和分拣设备的伺服驱动，实现高效动作控制。

3. 工业机器人

• 控制机械臂关节和末端执行器，实现复杂动作序列。

4. 包装和印刷设备

• 驱动送料、定位及切割机构，保证动作同步与精度。

5. 实验及自动化测试设备

• 对电机驱动及精密运动装置进行精确控制与数据采集。

产品优势

• 精度高：闭环控制确保伺服运动的高精度和重复性。

• 动态响应快：高速处理能力提升动作响应速度和控制稳定性。

• 系统兼容性强：与 G&L 控制器及 I/O 模块无缝匹配，也可兼容其他工业平台。

• 安全可靠：内置多重保护功能，适应高负荷运行环境。

• 维护简便：状态指示清晰，支持故障诊断，便于系统维护和调试。

英文资料：

Product Overview

GIDINGS&LEWIS 502-03419-00 servo control board is an industrial grade motion control module designed specifically for servo motor drives and multi axis mechanical systems. It precisely processes instructions from the upper controller to control the speed, position, and torque of the servo motor, achieving high-precision motion control of mechanical equipment. This control board is usually used in conjunction with CNC machine tools, automated production lines, and industrial robots, and is one of the core units for implementing motion control in G&L systems.

Technical Specifications

Control type: Closed loop servo control, supporting position, speed, and torque control modes.

Input/Output Interface: Provides multiple digital input and output interfaces, capable of receiving encoder feedback signals.

Motor compatibility: Suitable for GIDINGS&LEWIS brushless AC servo motors and other industrial servo motors.

Response characteristics: High speed signal processing ensures precise and timely motor action.

Protection function: It has overcurrent, overload, over temperature, and short circuit protection to enhance system reliability.

Modular design: easy to install, expand, and combine with other control modules.

Industrial adaptability: resistant to vibration, high temperature, electromagnetic interference, suitable for industrial environments.

Application scenarios

CNC machine tool

Accurately control the spindle, tool holder, and feed axis to achieve multi axis linkage machining.

Automatic production line

Manage servo drives for conveying, assembly, and sorting equipment to achieve efficient motion control.

industrial robot

Control the joints and end effectors of the robotic arm to achieve complex action sequences.

Packaging and printing equipment

Drive the feeding, positioning, and cutting mechanisms to ensure synchronous and accurate movements.

Experimental and automated testing equipment

Accurate control and data acquisition of motor drives and precision motion devices.

Product advantages

High precision: Closed loop control ensures high precision and repeatability of servo motion.

Fast dynamic response: High speed processing capability improves action response speed and control stability.

Strong system compatibility: seamlessly matches with G&L controllers and I/O modules, and can also be compatible with other industrial platforms.

Safe and reliable: Built in multiple protection functions, suitable for high load operating environments.

Easy to maintain: Clear status indication, support for fault diagnosis, convenient for system maintenance and debugging.

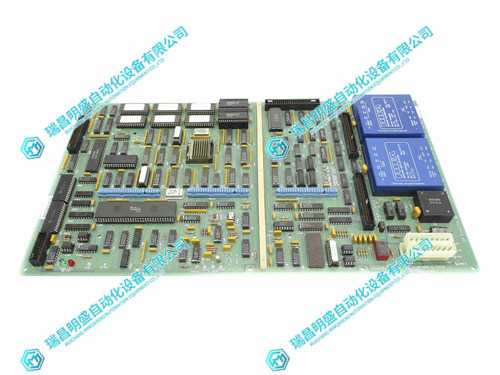

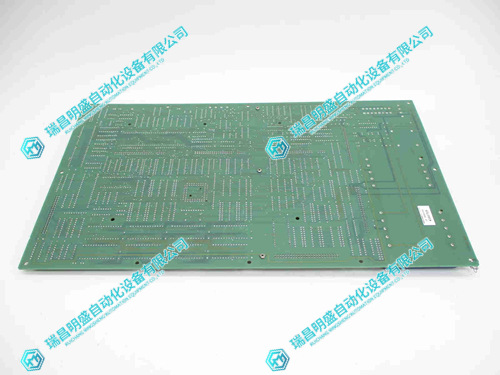

2.产      品      展      示
