GIDDINGS & LEWIS 502-03839-03输出模块 PDF资料

1.产 品 资 料 介 绍：

产品概述

GIDDINGS & LEWIS 502-03839-03 输出模块是一款用于工业控制系统的功能扩展单元，主要负责将控制器发出的逻辑指令转换为电气信号，以驱动现场执行器设备（如继电器、电磁阀、马达启动器等）。该模块具有高可靠性和快速响应特性，是 GIDDINGS & LEWIS 502 系列控制平台的重要组成部分。

技术参数（典型特征，型号相关）

• 输出类型：支持数字量输出（DO），适合开关量控制。

• 通道数：多通道输出设计，可同时驱动多个设备。

• 信号电平：兼容工业标准电压等级，适应多种控制需求。

• 响应时间：高速输出响应，保证执行器即时动作。

• 隔离保护：通道间具备电气隔离，提升系统抗干扰能力。

• 状态指示：每通道具备 LED 指示，便于监控与故障诊断。

• 模块化结构：支持与其他 I/O 模块及主控单元无缝集成。

应用场景

1. 数控机床

• 控制刀库换刀电机、冷却泵、润滑系统等外部执行单元。

2. 自动化生产线

• 驱动输送带、分拣装置、机械手和气动执行机构。

3. 工业机器人

• 控制夹具开合、末端工具启停以及辅助机构动作。

4. 包装和印刷设备

• 控制切刀、压合、喷墨等工艺环节，实现高效联动。

5. 过程控制系统

• 向泵、阀门、报警器等设备输出信号，实现集中控制。

英文资料：

Product Overview

The GIDINGS&LEWIS 502-03839-03 output module is a functional expansion unit used in industrial control systems, mainly responsible for converting logical instructions issued by the controller into electrical signals to drive on-site actuator devices (such as relays, solenoid valves, motor starters, etc.). This module has high reliability and fast response characteristics, and is an important component of the GIDINGS&LEWIS 502 series control platform.

Technical parameters (typical features, model related)

Output type: Supports digital output (DO), suitable for switch control.

Channel count: Multi channel output design, capable of driving multiple devices simultaneously.

Signal level: compatible with industrial standard voltage levels, suitable for various control requirements.

Response time: High speed output response ensures immediate action of the actuator.

Isolation protection: The channels have electrical isolation to enhance the system's anti-interference ability.

Status indication: Each channel is equipped with LED indicators for easy monitoring and fault diagnosis.

Modular structure: supports seamless integration with other I/O modules and main control units.

Application scenarios

CNC machine tool

Control external execution units such as tool changing motor, cooling pump, lubrication system, etc. in the tool magazine.

Automatic production line

Drive conveyor belts, sorting devices, robotic arms, and pneumatic actuators.

industrial robot

Control the opening and closing of fixtures, the start and stop of end tools, and the movement of auxiliary mechanisms.

Packaging and printing equipment

Control the cutting blade, pressing, inkjet and other process steps to achieve efficient linkage.

process control system

Output signals to pumps, valves, alarms, and other equipment to achieve centralized control.

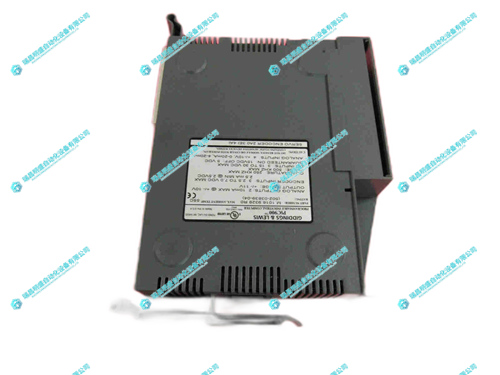

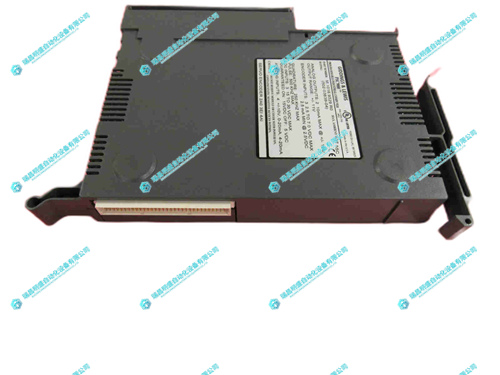

2.产      品      展      示
