GIDDINGS & LEWIS 401-56453-50交流伺服驱动器 PDF资料

1.产 品 资 料 介 绍：

产品概述

GIDDINGS & LEWIS 401-56453-50 交流伺服驱动器是一款工业级高性能驱动单元，主要用于配合无刷交流伺服电机实现精确的速度、位置和扭矩控制。该驱动器具有响应速度快、运行稳定、保护功能完善等特点，广泛应用于数控机床、自动化生产线以及机器人系统中，为设备提供精准的运动控制和高效能量转换。

技术参数（典型特征，型号相关）

• 输入电源：支持工业交流电源输入，具备过压、欠压及相序保护。

• 输出控制：适配无刷交流伺服电机，支持矢量控制和高速脉冲响应。

• 反馈接口：兼容增量式/绝对式编码器信号，实现闭环控制。

• 控制模式：支持速度控制、位置控制和转矩控制多模式切换。

• 保护功能：过流、过温、短路及过载自动保护，提升系统安全性。

• 通讯能力：支持与上位机、PLC 及 GIDDINGS & LEWIS 控制系统通讯，实现集中管理。

应用场景

1. 数控机床

• 主轴和进给伺服控制，实现高精度切削与稳定加工。

2. 自动化生产线

• 输送系统、分拣机构和装配设备的伺服控制，保证动作同步。

3. 工业机器人

• 关节驱动与执行机构控制，满足快速响应和高精度运动要求。

4. 包装与印刷机械

• 实现快速启停、位置精确和高速度运行。

5. 纺织及电子制造

• 用于需要精细控制和高速生产的设备，如绕线机、贴片机等。

英文资料：

Product Overview

GIDINGS&LEWIS 401-56453-50 AC servo drive is an industrial grade high-performance drive unit mainly used to achieve precise speed, position, and torque control in conjunction with brushless AC servo motors. This driver has the characteristics of fast response speed, stable operation, and complete protection function, and is widely used in CNC machine tools, automated production lines, and robot systems, providing precise motion control and efficient energy conversion for equipment.

Technical parameters (typical features, model related)

Input power supply: Supports industrial AC power input, with overvoltage, undervoltage, and phase sequence protection.

Output control: Suitable for brushless AC servo motors, supporting vector control and high-speed pulse response.

Feedback interface: compatible with incremental/absolute encoder signals, achieving closed-loop control.

Control mode: Supports multi-mode switching of speed control, position control, and torque control.

Protection function: Automatic protection against overcurrent, overheating, short circuit, and overload, enhancing system safety.

Communication capability: Supports communication with the upper computer, PLC, and GIDINGS&LEWIS control systems to achieve centralized management.

Application scenarios

CNC machine tool

Spindle and feed servo control achieve high-precision cutting and stable machining.

Automatic production line

Servo control of the conveying system, sorting mechanism, and assembly equipment to ensure synchronized actions.

industrial robot

Joint drive and actuator control meet the requirements of fast response and high-precision motion.

Packaging and Printing Machinery

Realize fast start stop, precise positioning, and high-speed operation.

Textile and Electronic Manufacturing

Used for equipment that requires precise control and high-speed production, such as winding machines, surface mount machines, etc.

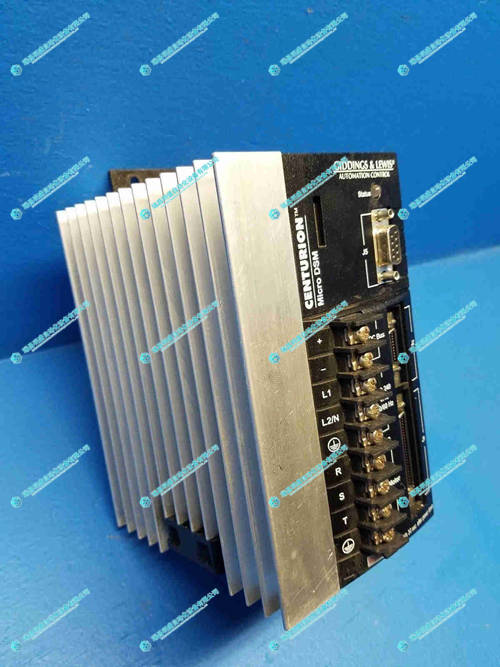

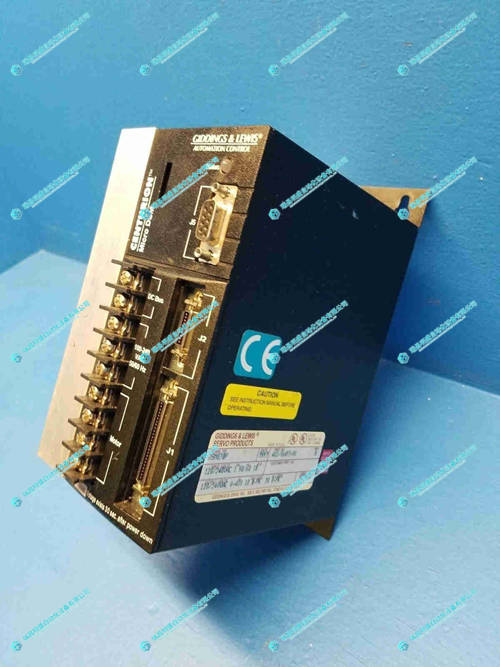

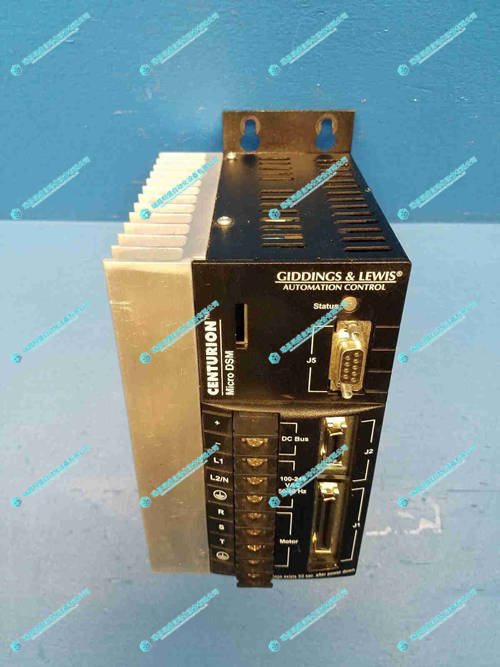

2.产      品      展      示
