TOYOTA 24250-10923-71逻辑卡 PDF资料

1.产 品 资 料 介 绍：

产品概述

TOYOTA 24250-10923-71 逻辑卡是一种用于纺织机械及工业控制设备中的关键电子单元电路板。其主要功能是实现逻辑运算、信号处理及控制逻辑分配，为主控制器提供支持，同时协调输入/输出信号的处理和设备运行的时序控制。它在整机的电气系统中扮演“大脑辅助”角色，确保设备在复杂工况下实现稳定和高效的运行。

技术参数

• 产品类型：逻辑控制电路板

• 核心功能：信号处理、逻辑运算、控制时序管理

• 电路结构：多层印刷电路设计，支持高速信号传输

• 输入/输出接口：多通道数字量信号接口，兼容主板与外围模块

• 电源规格：DC24V（典型）或与设备配套电源供电

• 防护功能：过压、过流及静电保护设计

• 环境适应性：耐高温、耐湿度，抗电磁干扰，适合纺织车间环境

应用场景

1. 纺织机械控制系统

• 应用于喷气织机、喷水织机、剑杆织机等高速织造设备。

• 承担喷嘴、选纬、张力控制等逻辑运算任务。

2. 工业控制设备

• 用于自动化机械的逻辑判断与动作控制。

• 协调信号输入与执行机构的指令输出。

3. 电气控制扩展模块

• 作为主控制器的逻辑扩展板，实现复杂工艺的控制逻辑。

• 提供额外的信号处理与逻辑分配能力。

英文资料：

Product Overview

TOYOTA 24250-10923-71 logic card is a key electronic unit circuit board used in textile machinery and industrial control equipment. Its main function is to implement logical operations, signal processing, and control logic allocation, provide support for the main controller, and coordinate the processing of input/output signals and timing control of device operation. It plays the role of a "brain assistant" in the electrical system of the entire machine, ensuring stable and efficient operation of the equipment under complex working conditions.

Technical Specifications

Product Type: Logic Control Circuit Board

Core functions: signal processing, logical operations, control timing management

Circuit structure: Multi layer printed circuit design, supporting high-speed signal transmission

Input/output interface: multi-channel digital signal interface, compatible with motherboard and peripheral modules

Power specification: DC24V (typical) or power supply compatible with the equipment

Protection function: overvoltage, overcurrent, and electrostatic protection design

Environmental adaptability: resistant to high temperature, humidity, electromagnetic interference, suitable for textile workshop environment

Application scenarios

Textile Machinery Control System

Applied to high-speed weaving equipment such as jet looms, water jet looms, and rapier looms.

Undertake logical operations tasks such as nozzle selection, weft selection, and tension control.

Industrial Control Equipment

Used for logical judgment and action control of automated machinery.

Coordinate signal input with instruction output of executing mechanism.

Electrical Control Expansion Module

As the logic expansion board of the main controller, it implements control logic for complex processes.

Provide additional signal processing and logic allocation capabilities.

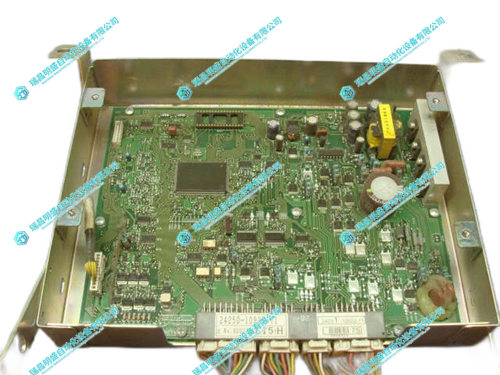

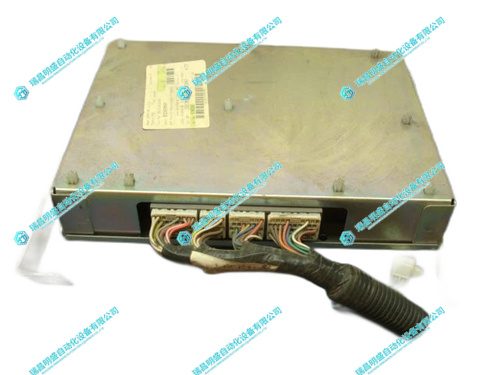

2.产      品      展      示
