Magnetek CIMR-G5M57P5交流驱动器 PDF资料
1.产 品 资 料 介 绍：
产品概述
Magnetek CIMR-G5M57P5 是一款高性能矢量控制型交流变频驱动器，用于调节和控制三相感应电动机的速度和转矩。该驱动器具备出色的动态响应能力和精确控制功能，适用于对电机控制有较高要求的工业自动化系统，尤其适合起重、搬运、提升等重载应用。
产品特点
无编码器矢量控制技术
实现高精度速度和转矩控制，即使在低速时也能提供稳定输出。内置制动晶体管
支持快速减速和制动功能（根据具体配置），适合高惯性负载。多功能I/O接口
便于与PLC、远程控制设备、传感器等系统集成。高可靠性设计
具备过流、过压、过热、欠压、短路等多种保护功能，适合恶劣工业环境。用户友好的参数设置
通过数字操作面板快速设置运行参数，便于维护和调试。兼容性强
可与多种标准工业通讯协议配合使用（如Modbus），实现远程监控与控制。
应用领域
桥式起重机、门式起重机
控制起升、变幅、小车和大车运行，保障平稳启动与精准停止。物流与搬运系统
用于传送带、提升机、堆垛机等，实现速度调节和安全控制。冶金、钢铁和矿山设备
驱动高负载电机，支持连续、重载运行环境。电梯和升降平台
提供平稳、安静的启动和停止过程，提升乘坐舒适性与控制精准度。风机、水泵系统
实现节能运行，根据工况调节流量或压力输出。
英文资料：
product overview
Magnetek CIMR-G5M57P5 is a high-performance vector control AC variable frequency drive used to regulate and control the speed and torque of three-phase induction motors. This driver has excellent dynamic response capability and precise control function, suitable for industrial automation systems with high requirements for motor control, especially for heavy-duty applications such as lifting, handling, and hoisting.
Product Features
Encoder free vector control technology
Realize high-precision speed and torque control, providing stable output even at low speeds.
Built in braking transistor
Supports rapid deceleration and braking functions (depending on specific configuration), suitable for high inertia loads.
Multi functional I/O interface
Easy to integrate with PLC, remote control equipment, sensors and other systems.
High reliability design
It has multiple protection functions such as overcurrent, overvoltage, overheating, undervoltage, short circuit, etc., suitable for harsh industrial environments.
User friendly parameter settings
Quickly set operating parameters through the digital control panel for easy maintenance and debugging.
Strong compatibility
Can be used in conjunction with multiple standard industrial communication protocols (such as Modbus) to achieve remote monitoring and control.
application area
Bridge crane, gantry crane
Control the lifting, amplitude, and operation of small and large vehicles to ensure smooth starting and precise stopping.
Logistics and Handling System
Used for conveyor belts, elevators, stackers, etc., to achieve speed regulation and safety control.
Metallurgical, steel and mining equipment
Drive high load motors and support continuous and heavy-duty operating environments.
Elevators and lift platforms
Provide a smooth and quiet start and stop process to enhance ride comfort and control accuracy.
Fan and water pump system
Realize energy-saving operation, adjust flow or pressure output according to working conditions.

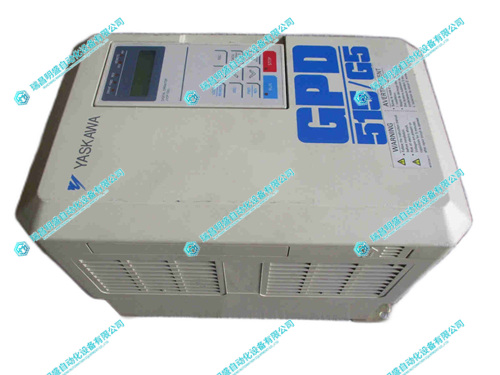

2.产 品 展 示
