Magnetek 460AFD5-G可调频起重机控制器 PDF资料
1.产 品 资 料 介 绍：
产品概述
Magnetek 460AFD5-G 是一款专门为起重机和物料搬运设备设计的可调频控制器，采用先进的矢量控制技术，实现对交流电机的高精度调速和扭矩控制。该控制器具备丰富的安全和保护功能，适合重载起升、运行和变幅等多种工况。
产品特点
矢量控制技术
支持无速度传感器矢量控制，实现高速响应和高精度的电机控制，保证起升平稳、无摆动。多功能安全保护
内置防摆控制、载荷监测、扭矩限制、制动监视和故障诊断功能，提升设备安全性和可靠性。宽输入电压范围
适应多种工业供电环境，具备良好的抗干扰和电压波动适应能力。灵活的接口配置
配备多路数字量和模拟量输入输出，支持与PLC及上位控制系统的无缝集成。人机界面友好
带有易于操作的面板，方便参数设置、状态监控和故障排查。模块化设计
体积紧凑，便于安装和维护，适合各类起重机控制柜应用。
应用领域
桥式起重机与门式起重机
实现起升、行走和变幅机构的精确控制，保障作业平稳安全。龙门吊和集装箱搬运设备
支持重载作业，提供高效的调速和保护功能。自动化仓储与物流系统
适用于堆垛机、输送系统等设备的速度和位置控制。矿山与冶金设备
满足高强度、高频率起升和运输需求，提升设备使用寿命。
英文资料：
product overview
Magnetek 460AFD5-G is a frequency adjustable controller specifically designed for cranes and material handling equipment. It uses advanced vector control technology to achieve high-precision speed regulation and torque control of AC motors. This controller has rich safety and protection functions, suitable for various working conditions such as heavy-duty lifting, operation, and amplitude adjustment.
Product Features
Vector control technology
Support sensorless vector control to achieve high-speed response and high-precision motor control, ensuring smooth lifting and no swinging.
Multi functional security protection
Built in anti sway control, load monitoring, torque limitation, brake monitoring, and fault diagnosis functions enhance equipment safety and reliability.
Wide input voltage range
Adapt to various industrial power supply environments, with good anti-interference and voltage fluctuation adaptability.
Flexible interface configuration
Equipped with multiple digital and analog inputs and outputs, supporting seamless integration with PLC and upper control systems.
Human computer interface friendly
Equipped with an easy-to-use panel for parameter settings, status monitoring, and troubleshooting.
Modular design
Compact in size, easy to install and maintain, suitable for various crane control cabinet applications.
application area
Bridge crane and gantry crane
Realize precise control of lifting, walking, and variable amplitude mechanisms to ensure smooth and safe operations.
Longmen crane and container handling equipment
Supports overloaded tasks and provides efficient speed regulation and protection functions.
Automated warehousing and logistics system
Suitable for speed and position control of equipment such as stacker cranes and conveyor systems.
Mining and metallurgical equipment
Meet the requirements of high-intensity and high-frequency lifting and transportation, and improve the service life of equipment.

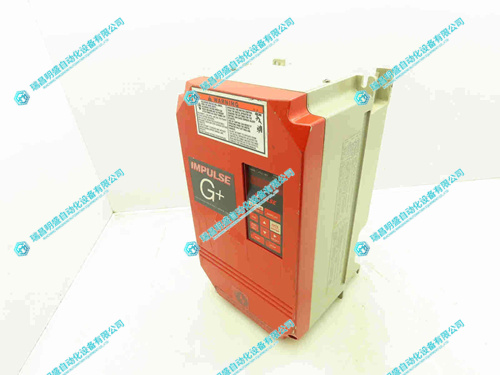

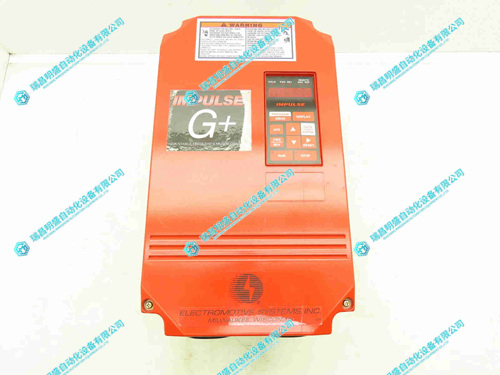

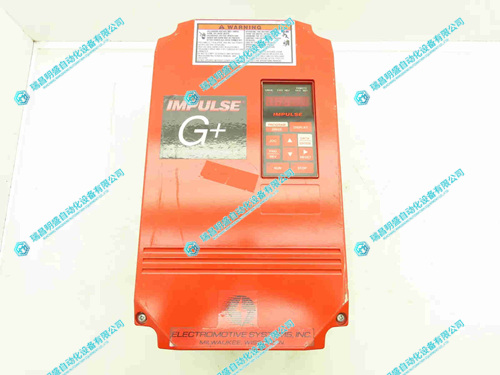

2.产 品 展 示
