Magnetek CIMR-F7U4011可调频驱动器 PDF资料
1.产 品 资 料 介 绍：
产品概述
Magnetek CIMR-F7U4011 是一款基于 Yaskawa F7 系列平台的 三相交流可调频驱动器（VFD），专为通用工业用途设计，支持多种电机控制方式，包括标准 V/f 控制和矢量控制。该驱动器通常用于控制 10 HP（7.5 kW）级别的三相感应电动机，适配 480V 级供电系统。
产品特点
1. 高可靠性设计
采用工业级元件和模块化构造，具有较高的耐热、抗尘和抗干扰能力，适合长时间连续运行的工况。
2. 多种控制模式
支持 V/f 控制、开环矢量控制和闭环矢量控制，满足不同工艺场景对速度精度、转矩响应的控制需求。
3. 灵活的参数设定
内置数字操作面板，用户可通过参数菜单进行调节、存储与复制配置，方便调试与维护。
4. 节能功能
可根据负载变化动态调整输出，降低能源消耗，提升运行效率，适用于变负载场合如风机、水泵等。
5. 完善的保护机制
具备过电流、过电压、欠压、过热、过载及接地短路等多重保护功能，提高设备运行的安全性。
6. 丰富的通讯接口
可选配通讯模块，支持 Modbus、DeviceNet、Profibus 等工业协议，便于与PLC或控制系统集成。
英文资料：
product overview
Magnetek CIMR-F7U4011 is a three-phase AC variable frequency drive (VFD) based on the Yaskawa F7 series platform, designed specifically for general industrial use, supporting multiple motor control methods including standard V/f control and vector control. This driver is typically used to control 10 HP (7.5 kW) level three-phase induction motors and is compatible with 480V level power supply systems.
Product Features
1. High reliability design
Adopting industrial grade components and modular construction, it has high heat resistance, dust resistance, and anti-interference capabilities, suitable for long-term continuous operation conditions.
2. Multiple control modes
Support V/f control, open-loop vector control, and closed-loop vector control to meet the control requirements for speed accuracy and torque response in different process scenarios.
3. Flexible parameter settings
Built in digital operation panel, users can adjust, store and copy configurations through parameter menu, making debugging and maintenance convenient.
4. Energy saving function
It can dynamically adjust the output according to changes in load, reduce energy consumption, and improve operational efficiency. It is suitable for variable load scenarios such as fans and pumps.
5. Improved protection mechanism
Equipped with multiple protection functions such as overcurrent, overvoltage, undervoltage, overheating, overload, and ground short circuit, it improves the safety of equipment operation.
6. Rich communication interfaces
Optional communication module, supporting industrial protocols such as Modbus, DeviceNet, Profibus, etc., for easy integration with PLC or control systems.

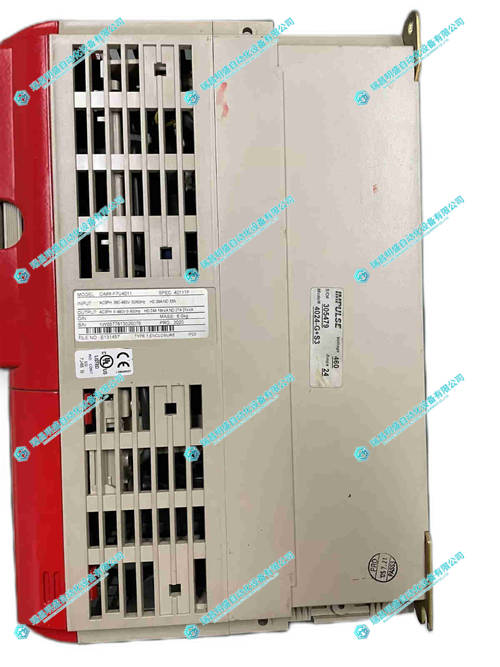

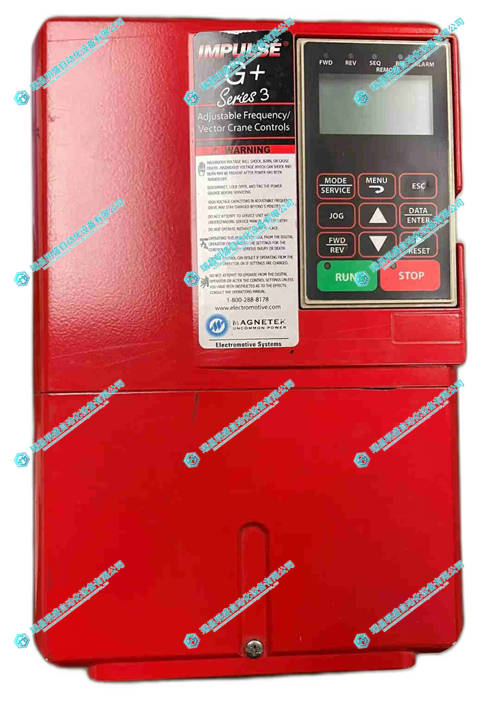

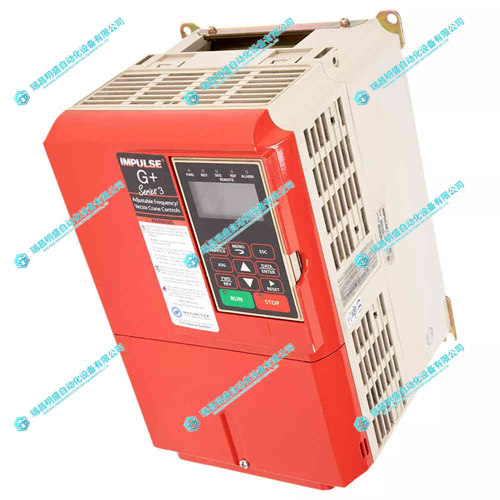

2.产 品 展 示
