Magnetek CIMR-F7U42P2变频驱动器 PDF资料
1.产 品 资 料 介 绍：
产品概述：
Magnetek CIMR-F7U42P2 是一款三相通用型变频驱动器（由 Magnetek 与 Yaskawa 合作开发的 F7 系列），额定功率大约为 2 HP（约 1.5 kW），适用于工业电机的调速与控制，尤其在泵、风机、传送带及加工设备中表现出色。
核心产品特点：
矢量控制与 V/f 控制
支持无传感器矢量控制和传统 V/f 控制模式
实现高启动转矩和稳定低速运行
适合对动态响应要求较高的应用场景
宽输入电压范围
适配三相 380–480V，提升电源兼容性
具备过压、欠压、缺相保护功能
内置滤波与电抗器（部分型号）
降低电磁干扰（EMI）
改善电源品质，提高系统稳定性
强大的保护功能
内置过载、过流、过热、短路等多种保护机制
支持故障自诊断与报警记录，便于维护
可编程 I/O 接口
多达 7 个数字输入、3 个数字输出、2 个模拟输入输出
支持灵活配置，实现自定义控制逻辑
通信与联网能力
支持 Modbus RTU 通讯（可选 Profibus、DeviceNet、Ethernet）
易于集成到上位机或 PLC 控制系统中
用户友好型操作界面
可选内置操作键盘或远程控制器
参数设置简便，支持快速复制和上传下载功能
英文资料：
Product Overview:
Magnetek CIMR-F7U42P2 is a three-phase universal variable frequency drive (F7 series developed by Magnetek in collaboration with Yaskawa) with a rated power of approximately 2 HP (approximately 1.5 kW). It is suitable for speed regulation and control of industrial motors, particularly in pumps, fans, conveyors, and processing equipment.
Core product features:
Vector control and V/f control
Support sensorless vector control and traditional V/f control mode
Realize high starting torque and stable low-speed operation
Suitable for application scenarios with high requirements for dynamic response
Wide input voltage range
Compatible with three-phase 380-480V to enhance power supply compatibility
Equipped with overvoltage, undervoltage, and phase loss protection functions
Built in filter and reactor (some models)
Reduce electromagnetic interference (EMI)
Improve power quality and enhance system stability
Powerful protection function
Built in overload, overcurrent, overheating, short circuit and other protection mechanisms
Support fault self diagnosis and alarm recording for easy maintenance
Programmable I/O interface
Up to 7 digital inputs, 3 digital outputs, 2 analog inputs/outputs
Support flexible configuration and achieve custom control logic
Communication and networking capabilities
Supports Modbus RTU communication (optional Profibus, DeviceNet, Ethernet)
Easy to integrate into upper computer or PLC control system
User friendly operating interface
Optional built-in operation keyboard or remote controller
Easy parameter setting, supports quick copying and uploading/downloading functions

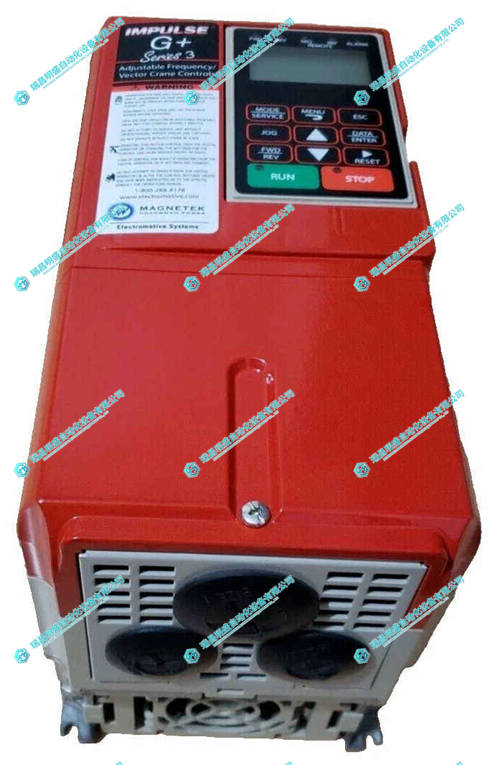

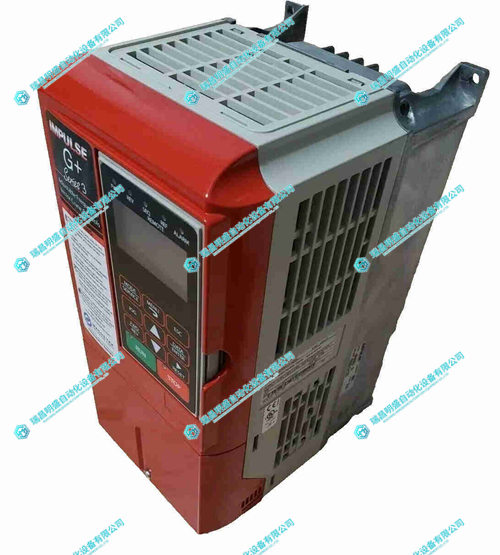

2.产 品 展 示
