Microsys COMP 2 激光技术控制板 PDF资料
1.产 品 资 料 介 绍：
产品名称
Microsys COMP 2 激光技术控制板
（Laser Control Board / Laser Controller）
产品概述
Microsys COMP 2 是一款专为工业激光系统设计的控制板，适用于激光切割、雕刻、焊接、打标等应用场景。该控制板用于精确控制激光器的功率、脉冲、位移同步与安全信号，具备高稳定性、高精度和多接口特性，是激光设备核心部件之一。
产品特点
精准激光控制
支持对激光器的脉冲宽度、频率、功率进行实时控制
精确配合 X/Y/Z 平台运动，确保激光路径与功率输出同步
多种激光类型兼容
兼容 CO₂、光纤、YAG、紫外等多种工业激光器
可调 TTL/Analog 输出，适配不同激光源接口标准
集成化控制逻辑
内建激光触发逻辑、延时控制、安全联锁功能
降低外围电路复杂性，提升整机集成度
高速响应与低延迟
采用高速 FPGA 或微处理器架构，实现毫秒级激光开关控制
支持高频率输入信号处理（如脉冲同步、编码器反馈）
丰富的通信接口
提供 RS232/RS485、CAN 或 TTL 控制信号输入
可连接上位机、PLC 或激光加工软件平台
安全与保护机制
具备急停输入、过流保护、温度保护等多种安全设计
支持激光功率异常、光束遮挡等异常状态检测与上报
工业级稳定性设计
PCB 板材选用高耐热 FR-4，多层布线提升抗干扰能力
满足长时间连续运行的要求
英文资料：
product name
Microsys COMP 2 Laser Technology Control Board
（Laser Control Board / Laser Controller）
product overview
Microsys COMP 2 is a control board designed specifically for industrial laser systems, suitable for applications such as laser cutting, engraving, welding, and marking. This control board is used for precise control of laser power, pulse, displacement synchronization, and safety signals. It has high stability, high precision, and multi interface characteristics, and is one of the core components of laser equipment.
Product Features
Precise laser control
Support real-time control of laser pulse width, frequency, and power
Accurately coordinate with the X/Y/Z platform movement to ensure synchronization between the laser path and power output
Compatible with multiple laser types
Compatible with CO ₂, fiber optics YAG、 Various industrial lasers such as ultraviolet
Adjustable TTL/Analog output, compatible with different laser source interface standards
Integrated control logic
Built in laser triggering logic, delay control, safety interlock function
Reduce the complexity of peripheral circuits and improve the overall integration of the machine
High speed response and low latency
Using high-speed FPGA or microprocessor architecture to achieve millisecond level laser switch control
Support high-frequency input signal processing (such as pulse synchronization, encoder feedback)
Rich communication interfaces
Provide RS232/RS485, CAN or TTL control signal input
Can connect to upper computer, PLC or laser processing software platform
Security and protection mechanisms
Equipped with various safety designs such as emergency stop input, overcurrent protection, temperature protection, etc
Support detection and reporting of abnormal states such as laser power and beam obstruction
Industrial grade stability design
High heat-resistant FR-4 is selected for PCB board, and multi-layer wiring enhances anti-interference ability
Meet the requirements for long-term continuous operation

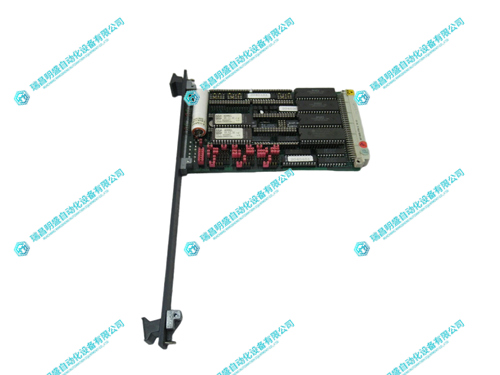

2.产 品 展 示
