Magnetek EDB4034EH动态制动电阻 PDF资料

1.产 品 资 料 介 绍：

一、产品概述

MAGNETE EDB4034EH 是一款用于交流变频器（VFD）系统的动态制动电阻器，主要用于在电机减速或制动过程中吸收回馈能量，防止母线电压升高，保护变频器和整个驱动系统的稳定运行。该型号适配较高功率等级和更高负载制动频率的工业应用场景。

二、产品特点

1. 高热容量设计

• 可承受频繁制动产生的大量再生能量，具有出色的散热能力和热容量，适用于重载、高惯性工况。

2. 高阻值匹配精准

• 根据驱动器参数精确匹配阻值与功率，确保系统制动时响应灵敏，避免过压跳闸或误动作。

3. 结构坚固耐用

• 金属外壳密封良好，具备较强的抗震动、抗腐蚀能力，适应严苛工业环境，保障长期稳定运行。

4. 安装简便灵活

• 支持标准化固定方式，既可内置控制柜，也可外置独立安装，便于系统集成与维护。

5. 高安全性保护

• 内部采用耐高温、阻燃材料，具备过热保护特性，避免因过载或故障引发安全隐患。

6. 兼容性强

• 可与 MAGNETEK 各系列变频器（如 G+、IMPULSE、VFD 系列）完美匹配，也适配多数工业 VFD 品牌。

7. 节能高效

• 动态吸收回馈能量，避免对变频器产生反冲压力，提高系统能效及电气稳定性。

8. 适用频繁启停系统

• 设计适用于高频率启动、减速、反转场合，如起重、电梯、传输线、机械加工等领域。

英文资料：

1、 Product Overview

MAGNETEK EDB4034EH is a dynamic braking resistor used in AC frequency converter (VFD) systems. It is mainly used to absorb feedback energy during motor deceleration or braking, prevent bus voltage rise, and protect the stable operation of the VFD and the entire drive system. This model is suitable for industrial applications with higher power levels and higher load braking frequencies.

2、 Product Features

High heat capacity design

It can withstand the large amount of regenerative energy generated by frequent braking, has excellent heat dissipation capacity and thermal capacity, and is suitable for heavy-duty and high inertia working conditions.

High resistance matching with precision

Accurately match resistance and power based on driver parameters to ensure sensitive response during system braking and avoid overvoltage tripping or misoperation.

Durable and sturdy structure

The metal shell has good sealing, strong resistance to vibration and corrosion, adapts to harsh industrial environments, and ensures long-term stable operation.

Easy and flexible installation

Support standardized fixed methods, which can be built-in control cabinets or independently installed externally, facilitating system integration and maintenance.

High security protection

Internally, high-temperature resistant and flame-retardant materials are used, with overheat protection characteristics to avoid safety hazards caused by overload or malfunction.

Strong compatibility

It can be perfectly matched with various series of frequency converters from MAGNETEK, such as G+, IMPULSE, VFD series, and is also compatible with most industrial VFD brands.

Energy saving and efficient

Dynamically absorbing feedback energy, avoiding recoil pressure on the frequency converter, improving system energy efficiency and electrical stability.

Suitable for frequent start stop systems

The design is suitable for high-frequency starting, deceleration, and reverse situations, such as lifting, elevators, transmission lines, mechanical processing, and other fields.

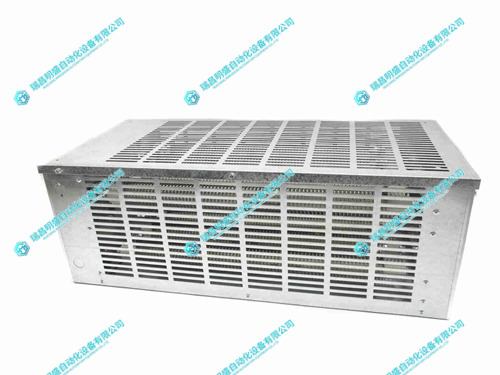

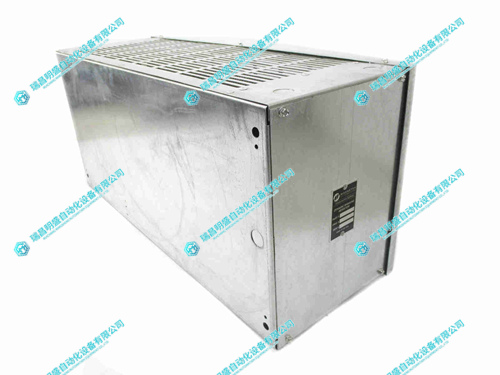

2.产      品      展      示
