Magnetek EDB4021ET动态制动电阻器 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
MAGNETEK EDB4021ET 是一款专为配合变频器使用的动态制动电阻器，主要功能是在电机制动或减速时吸收再生能量，将其转换为热能释放，防止变频器母线电压过高，从而保护驱动系统的稳定运行。该电阻器广泛用于具有高惯性或频繁启停需求的工业设备。
二、技术参数（典型）
型号：EDB4021ET
电压等级：460V AC
功率匹配：适用于约15 HP 的交流电机
适配电流：约24 A（满载电流）
类型：Class D 动态制动电阻器
安装方式：柜内或外置模块化安装
三、应用领域
起重与起升设备
起重机、电动葫芦、升降平台等设备频繁启停，制动过程中产生再生能量，EDB4021ET 可有效吸收这部分能量，保护变频器和电网稳定运行。
电梯与索道系统
在电梯下行或减速阶段，电机会回馈能量，该电阻器及时吸收电能并转换为热量，确保制动过程平稳安全。
输送与搬运系统
用于物流输送带、自动堆垛系统、机器人臂等需要快速启停的设备中，防止回生电压对控制系统造成冲击。
高惯性风机与水泵系统
大型风机或泵类设备在紧急停车时会因惯性释放大量能量，EDB4021ET 可有效防止过电压情况发生。
冶金与矿山机械
在高速运转或重载运行后的急停阶段，通过电阻器快速消耗回馈电流，防止设备损坏，提升系统可靠性。
英文资料：
1、 Product Overview
MAGNETEK EDB4021ET is a dynamic braking resistor designed specifically for use with frequency converters. Its main function is to absorb regenerative energy during motor braking or deceleration, convert it into thermal energy, and release it to prevent the bus voltage of the frequency converter from being too high, thereby protecting the stable operation of the drive system. This resistor is widely used in industrial equipment with high inertia or frequent start stop requirements.
2、 Technical parameters (typical)
Model: EDB4021ET
Voltage level: 460V AC
Power matching: suitable for AC motors of approximately 15 HP
Adaptive current: approximately 24 A (full load current)
Type: Class D dynamic braking resistor
Installation method: Modular installation inside or outside the cabinet
3、 Application Fields
Lifting and hoisting equipment
Cranes, electric hoists, lifting platforms and other equipment frequently start and stop, generating regenerative energy during the braking process. EDB4021ET can effectively absorb this energy, protecting the frequency converter and ensuring stable operation of the power grid.
Elevator and Cableway System
During the descent or deceleration phase of the elevator, the motor will feedback energy, and the resistor will absorb the electrical energy in a timely manner and convert it into heat, ensuring a smooth and safe braking process.
Conveyor and handling system
Used in equipment such as logistics conveyor belts, automatic stacking systems, robot arms, etc. that require rapid start stop to prevent the impact of regenerative voltage on the control system.
High inertia fan and water pump system
Large fan or pump equipment will release a large amount of energy due to inertia during emergency shutdown, and EDB4021ET can effectively prevent overvoltage situations from occurring.
Metallurgy and Mining Machinery
During the emergency stop phase after high-speed or heavy-duty operation, feedback current is quickly consumed through resistors to prevent equipment damage and improve system reliability.

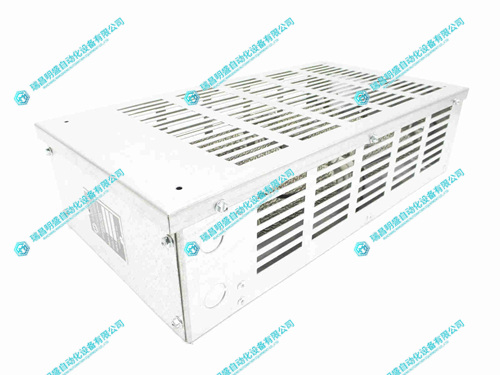

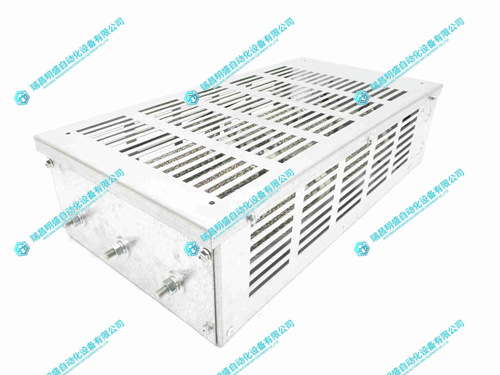

2.产 品 展 示
