Magnetek 6679-07-011 BG03电源板 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
型号：6679‑07‑011
内部标识：BG03 电源板
类型：高压（HV）电源供应板，用于 Magentek/Power‑One 系列设备中
二、技术特点与参数
用途：该电源板为灯具、电控设备或相关高压模块提供高压直流或脉冲电源，常见于工业电驱、照明调光器或特定驱动应用场景。
高压等级：额定最高电压为约 4 kV，适用于驱动 70W 灯类或高压负载
封装形式：安装在金属底板上，便于固定与散热
安全认证：符合 UL 94V‑0 阻燃标准（标识 RL CP5）
制造商：Magnetek / Power‑One 系列板卡
三、典型应用领域
高压照明设备
用于席式放电灯、日光灯镇流器或特定工业光源的电压点火与稳压
驱动 70W 灯类设备时提供稳定高压输出
工业电控系统
应用于 Magentek 控制电源中，为控制单元或主板模块提供隔离高压源
支持调光板、驱动模块或高压测试设备的供电需求
替换与维护用途
常作为库存备件提供，用于设备维修或更换故障电源板
在市场上可见全新或二手采购渠道，可供磁通、维修服务商使用
英文资料：
1、 Product Overview
Model: 6679-07-011
Internal identification: BG03 power board
Type: High Voltage (HV) power supply board, used in Magentek/Power One series equipment
2、 Technical features and parameters
Purpose: This power board provides high-voltage DC or pulse power for lamps, electrical control equipment, or related high-voltage modules, commonly used in industrial electric drives, lighting dimmers, or specific driving application scenarios.
High voltage level: The rated maximum voltage is about 4 kV, suitable for driving 70W lamps or high voltage loads
Packaging form: Installed on a metal base plate for easy fixation and heat dissipation
Safety certification: Complies with UL 94V-0 flame retardant standard (marked RL CP5)
Manufacturer: Magnetek/Power One series boards
3、 Typical application areas
High voltage lighting equipment
Voltage ignition and stabilization for seat discharge lamps, fluorescent lamp ballasts, or specific industrial light sources
Provide stable high voltage output when driving 70W lamp equipment
Industrial electronic control system
Applied in Magentek control power supply, providing isolated high voltage source for control units or motherboard modules
Support power supply requirements for dimming panels, driver modules, or high-voltage testing equipment
Replacement and maintenance purposes
Often provided as inventory spare parts for equipment maintenance or replacement of faulty power boards
New or second-hand purchasing channels can be seen in the market, which can be used by magnetic flux and maintenance service providers

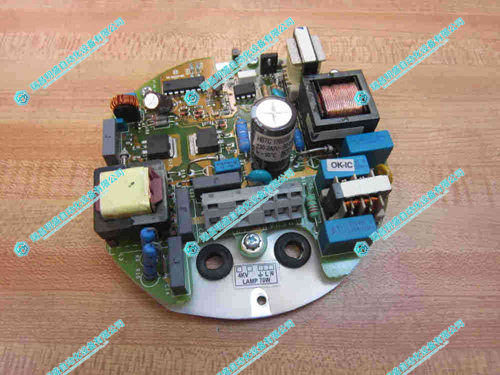

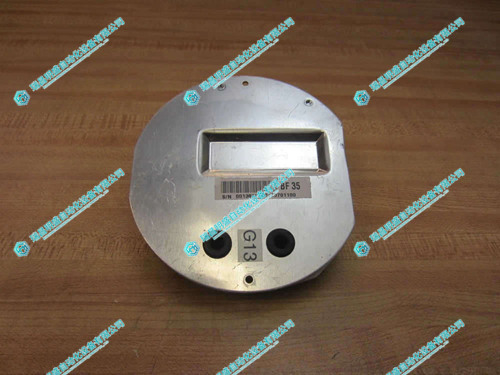

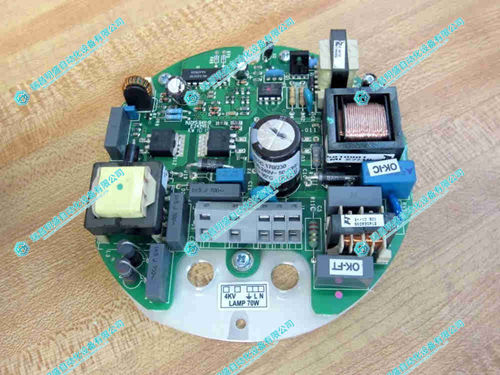

2.产 品 展 示
