Magnetek GPD503-DS305交流电机驱动器 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
MAGNETEK GPD503-DS305 是 GPD503 系列中的一款 三相交流电机驱动器（变频器），专为高性能工业电机控制应用设计。该驱动器支持通用三相感应电机，采用 V/f 控制方式，具备稳健的过载能力与环境适应性，适合用于多种工业自动化系统。
二、核心技术规格（典型）
型号：GPD503-DS305
适用电机类型：三相感应电机
输入电压：三相 380–460 VAC，50/60 Hz
控制方式：V/f（电压/频率）控制
输出频率范围：0.1 Hz 至 400 Hz
额定功率：具体依序号“DS305”所对应的 HP（需结合铭牌）
过载能力：150% 电流持续 1 分钟
冷却方式：风冷
安装方式：壁挂式或控制柜内嵌入式
三、主要产品特点
1. 稳健的 V/f 控制技术
提供标准曲线与可编程 V/f 曲线，适应不同负载类型（恒转矩、变转矩）
可通过滑差补偿与加减速设定实现动态响应优化
2. 多级保护功能
内置过压、欠压、过流、过热、接地短路等保护机制
故障检测功能快速响应，支持故障记录与自动复位设定
3. 可编程输入/输出接口
多达 5 路数字输入、2 路模拟输入
提供继电器输出和模拟电压/电流输出信号，用于状态指示或反馈控制
所有 I/O 可通过参数进行灵活功能配置
4. 简便的参数设置与调试
前面板操作器具备 LED 显示与多功能键控操作
提供参数快速复制功能，方便多机配置
具备基本自动调节功能，缩短启动调试时间
5. 环境适应性强
支持在恶劣环境中稳定运行（配合防尘措施）
宽温工作范围，适用于控制柜及现场设备安装
英文资料：
1、 Product Overview
MAGNETEK GPD503-DS305 is a three-phase AC motor driver (frequency converter) in the GPD503 series, designed specifically for high-performance industrial motor control applications. This driver supports universal three-phase induction motors and adopts V/f control mode, with robust overload capacity and environmental adaptability, suitable for use in various industrial automation systems.
2、 Core technical specifications (typical)
Model: GPD503-DS305
Applicable motor type: three-phase induction motor
Input voltage: three-phase 380-460 VAC, 50/60 Hz
Control mode: V/f (voltage/frequency) control
Output frequency range: 0.1 Hz to 400 Hz
Rated power: specific HP corresponding to the serial number "DS305" (to be combined with the nameplate)
Overload capacity: 150% current for 1 minute
Cooling method: air cooling
Installation method: wall mounted or embedded in control cabinet
3、 Main product features
1. Robust V/f control technology
Provide standard curves and programmable V/f curves to adapt to different load types (constant torque, variable torque)
Dynamic response optimization can be achieved through slip compensation and acceleration/deceleration settings
2. Multi level protection function
Built in protection mechanisms for overvoltage, undervoltage, overcurrent, overheating, grounding short circuit, etc
Quick response of fault detection function, supporting fault recording and automatic reset settings
3. Programmable input/output interface
Up to 5 digital inputs and 2 analog inputs
Provide relay output and analog voltage/current output signals for status indication or feedback control
All I/O can be flexibly configured for functionality through parameters
4. Convenient parameter setting and debugging
The front panel operator has LED display and multifunctional key control operation
Provide fast parameter copying function for convenient multi machine configuration
Equipped with basic automatic adjustment function, reducing startup and debugging time
5. Strong environmental adaptability
Support stable operation in harsh environments (with dust prevention measures)
Wide temperature working range, suitable for installation of control cabinets and on-site equipment

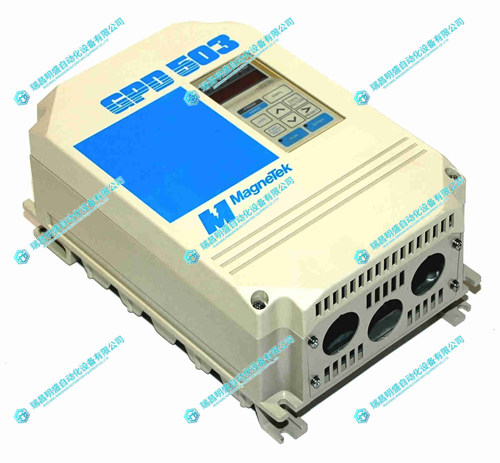

2.产 品 展 示
