Magnetek 46S03345-0400 控制电枢接口模块 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
Magnetek 46S03345-0400 是一款用于直流驱动系统中的电枢控制接口模块（Armature Interface Module）。该模块通常集成于工业直流驱动器中，用于调节、控制与监控电枢回路电压和电流，实现电机的稳定运行和保护。
它在 Magnetek 的直流驱动系统（如 GPD、DCS 系列等）中扮演关键作用，主要用于控制电枢电压输出、反馈信号处理及与主控制板的信号传递。
二、技术参数（典型指标，具体型号可能略有差异）
输入信号类型：模拟量（电压/电流）、数字控制信号
输出功能：控制电枢电压或调制 PWM 驱动信号
工作电压范围：24V 或更高（依据系统规格）
接口：端子或排线连接主控模块
附加功能：电流限幅、过压/欠压检测、电枢反馈调节、故障监控
冷却方式：依赖整机风冷或自然冷却
安装方式：插拔式或螺丝固定在驱动器主框架内部
三、应用场景
Magnetek 46S03345-0400 控制电枢接口模块广泛应用于以下工业设备和场景中：
工业直流电机驱动系统
用于控制重载直流电机的加速、减速、稳速过程
兼容动态制动与再生制动电路
金属加工设备
轧钢机、剪板机等大型负载设备中的直流驱动控制
印刷与造纸机械
精确控制张力与走纸速度的直流电驱系统
纺织机械
控制经纱卷绕、电枢动态调整及多电机同步
物料输送与起重系统
提供平稳的负载起动和速度控制
配合编码器闭环反馈用于闭环速度/转矩调节
英文资料：
1、 Product Overview
Magnetek 46S03345-0400 is an Armature Interface Module used in DC drive systems. This module is typically integrated into industrial DC drives to regulate, control, and monitor armature circuit voltage and current, achieving stable operation and protection of the motor.
It plays a key role in Magnetek's DC drive systems (such as GPD, DCS series, etc.), mainly used for controlling armature voltage output, feedback signal processing, and signal transmission with the main control board.
2、 Technical parameters (typical indicators, specific models may vary slightly)
Input signal type: analog (voltage/current), digital control signal
Output function: Control armature voltage or modulate PWM drive signal
Operating voltage range: 24V or higher (depending on system specifications)
Interface: Terminal or cable connection to the main control module
Additional functions: current limiting, overvoltage/undervoltage detection, armature feedback regulation, fault monitoring
Cooling method: relying on whole machine air cooling or natural cooling
Installation method: Plug in or screw fixed inside the drive main frame
3、 Application scenarios
The Magnetek 46S03345-0400 control armature interface module is widely used in the following industrial equipment and scenarios:
Industrial DC motor drive system
Used to control the acceleration, deceleration, and speed stabilization process of heavy-duty DC motors
Compatible with dynamic braking and regenerative braking circuits
Metal processing equipment
DC drive control in large load equipment such as rolling mills and shearing machines
Printing and papermaking machinery
DC electric drive system for precise control of tension and paper feed speed
Textile machinery
Control warp winding, armature dynamic adjustment, and multi motor synchronization
Material conveying and lifting system
Provide smooth load starting and speed control
Combined with encoder closed-loop feedback for closed-loop speed/torque regulation

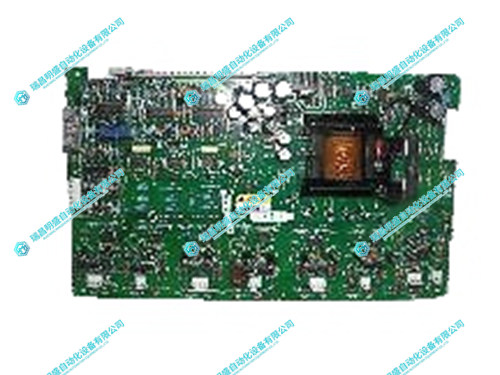

2.产 品 展 示
