Magnetek GPD503-DS306 交流电驱动器 PDF资料
1.产 品 资 料 介 绍：
MAGNETEK GPD503-DS306 交流电驱动器
产品特点
1. 精准的 PWM 控制技术
采用脉宽调制（PWM）输出方式，能提供平稳的电机运行和良好的低速扭矩控制，适合对速度要求较高的工业应用。
2. 宽电压适应能力
设计适用于三相 230V 交流电源，具有良好的电压容差，确保在电网波动时仍能稳定工作。
3. 多功能输入/输出接口
内置多组数字和模拟输入输出端口，可根据控制需求自由配置，用于实现多速运行、远程启停、故障反馈等功能。
4. 丰富的保护机制
具备过电压、过载、欠压、过热、短路、缺相等多种自保护功能，提升系统安全性和设备寿命。
5. 紧凑耐用的工业结构
外壳设计紧凑，适合安装在空间受限的控制柜内，具备良好的抗振动与耐温能力，满足工业现场环境要求。
6. 操作界面友好
支持面板直接编程与参数设定，调试简便，用户可通过显示屏快速读取状态和故障信息。
7. 高效率与节能表现
具有良好的能效表现，适合用于风机、水泵、输送机等负载特性明显的设备，帮助企业降低运行成本。
英文资料：
MAGNETEK GPD503-DS306 AC Driver
Product Features
1. Precise PWM control technology
Adopting pulse width modulation (PWM) output method can provide smooth motor operation and good low-speed torque control, suitable for industrial applications with high speed requirements.
2. Wide voltage adaptability
Designed for three-phase 230V AC power supply, with good voltage tolerance to ensure stable operation even during grid fluctuations.
3. Multi functional input/output interface
Built in multiple sets of digital and analog input/output ports, can be freely configured according to control requirements, used to achieve multi speed operation, remote start stop, fault feedback and other functions.
4. Rich protection mechanisms
Equipped with multiple self-protection functions such as overvoltage, overload, undervoltage, overheating, short circuit, and phase loss, it enhances system safety and equipment lifespan.
5. Compact and durable industrial structure
The compact shell design is suitable for installation in control cabinets with limited space, and has good anti vibration and temperature resistance capabilities, meeting the environmental requirements of industrial sites.
6. User friendly interface
Support panel direct programming and parameter setting, easy debugging, users can quickly read status and fault information through the display screen.
7. High efficiency and energy-saving performance
It has good energy efficiency performance and is suitable for equipment with obvious load characteristics such as fans, water pumps, and conveyors, helping enterprises reduce operating costs.

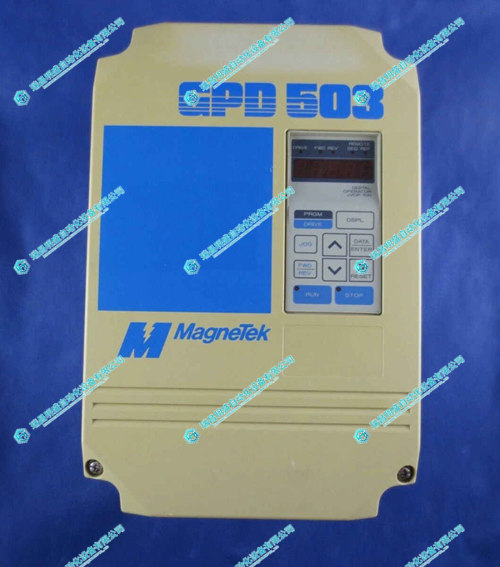

2.产 品 展 示
