1.产 品 资 料 介 绍：

MAGNETEK GPD505V-B034 逆变器
产品应用领域

MAGNETEK GPD505V-B034 是一款基于 PWM 控制的工业级变频逆变器，适用于对交流电机进行精确调速和节能控制的场合。该型号额定输出电流为 34A，适用于约 25 HP（18.5 kW）电机。

应用领域

1. 风机与水泵系统
   用于冷却塔、供水系统、通风设备等，支持 PID 控制，适用于恒压供水与节能通风需求。

2. 物料输送设备
   应用于输送带、提升机、送料设备等，实现柔性启动、速度调节与制动控制。

3. 起重与吊装设备
   适用于中小型桥式起重机、电动葫芦等，提升起停平稳性并减少机械冲击。

4. 加工机械设备
   用于锯切机、钻床、搅拌机等机械驱动，优化速度控制，提高设备精度与效率。

5. 楼宇自动化与 HVAC 系统
   驱动水泵、风机等空调系统组件，降低能源消耗并稳定系统运行。

6. 工业节能改造项目
   在老旧设备中用于替换工频控制系统，实现调速与节电功能升级，无需更换主电机。

英文资料：

MAGNETEK GPD505V-B034 inverter

Product application areas

MAGNETEK GPD505V-B034 is an industrial grade variable frequency inverter based on PWM control, suitable for precise speed regulation and energy-saving control of AC motors. This model has a rated output current of 34A and is suitable for motors of approximately 25 HP (18.5 kW).

application area

Fan and water pump system

Used for cooling towers, water supply systems, ventilation equipment, etc., supporting PID control, suitable for constant pressure water supply and energy-saving ventilation needs.

Material conveying equipment

Applied to conveyor belts, elevators, feeding equipment, etc., to achieve flexible starting, speed adjustment, and braking control.

Lifting and hoisting equipment

Suitable for small and medium-sized bridge cranes, electric hoists, etc., improving start stop stability and reducing mechanical impact.

Processing machinery equipment

Used for mechanical drives such as sawing machines, drilling machines, mixers, etc., optimizing speed control and improving equipment accuracy and efficiency.

Building Automation and HVAC Systems

Drive air conditioning system components such as water pumps and fans to reduce energy consumption and stabilize system operation.

Industrial energy-saving renovation project

Used in old equipment to replace power frequency control systems, achieve speed regulation and energy-saving function upgrades, without the need to replace the main motor.

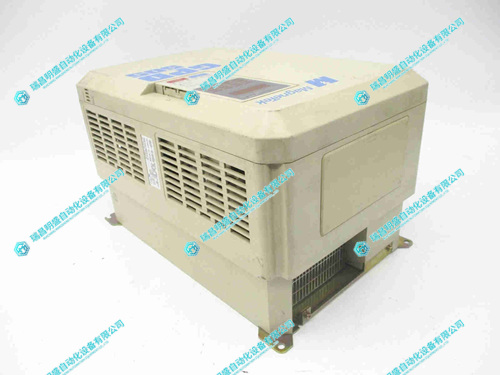

2.产      品      展      示
