Gasonics A60-002-03变压器 PDF资料
1.产 品 资 料 介 绍：
产品名称
Gasonics A60-002-03 变压器
（英文：Transformer Module）
一、产品概述
Gasonics A60-002-03 是一款应用于 Gasonics 系列等离子清洗/灰化设备中的 工艺电源变压器，主要用于将市电或系统供电转换为设备内部电子模块所需的稳定交流或直流电压。该变压器一般位于电源子系统中，是电流驱动、控制模块、阀控卡、电源滤波装置等部件的关键供电基础。
二、技术参数
类型：电源隔离变压器 / 工艺控制电源变压器
输入电压：
通常为 208VAC、220VAC 或 240VAC（三相或单相，视地区/配置）
输出电压：
多组输出，如 24VAC、12VAC、±15VAC、或 5VDC（二次侧可供多个模块使用）
功率等级：
典型在几十至几百 VA（具体依型号与用途）
绝缘等级：
工业级绝缘处理，具备过载与过温保护功能
冷却方式：
自然风冷或强制风冷（依据安装环境）
封装结构：
铁芯封装 / 铁壳屏蔽结构，适应高 EMI 环境
安装方式：
面板式或底板螺栓安装，配有标准端子或引线接头
认证与标准：
满足工业设备电气安全标准，可能具备 UL 或 CE 标识（视版本而定）
英文资料：
product name
Gasonics A60-002-03 Transformer
(English: Transformer Module)
1、 Product Overview
Gasonics A60-002-03 is a process power transformer used in Gasonics series plasma cleaning/ashing equipment, mainly used to convert mains or system power into stable AC or DC voltage required by the internal electronic modules of the equipment. This transformer is generally located in the power supply subsystem and serves as a key power supply foundation for components such as current drive, control module, valve control card, and power filtering device.
2、 Technical parameters
Type: Power Isolation Transformer/Process Control Power Transformer
Input voltage:
Usually 208VAC, 220VAC, or 240VAC (three-phase or single-phase, depending on region/configuration)
Output voltage:
Multiple outputs, such as 24VAC, 12VAC, ± 15VAC, or 5VDC (the secondary side can be used by multiple modules)
Power level:
Typically ranging from tens to hundreds of VA (depending on model and usage)
Insulation level:
Industrial grade insulation treatment with overload and over temperature protection functions
Cooling method:
Natural air cooling or forced air cooling (depending on the installation environment)
Encapsulation structure:
Iron core encapsulation/iron shell shielding structure, suitable for high EMI environments
Installation method:
Panel or base plate bolt installation, equipped with standard terminals or lead connectors
Certification and Standards:
Meets industrial equipment electrical safety standards and may have UL or CE markings (depending on version)

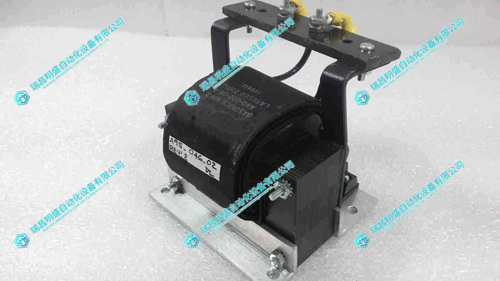

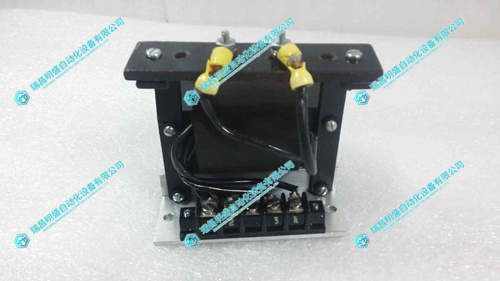

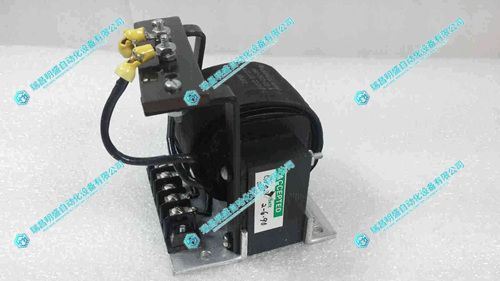

2.产 品 展 示
