Gasonics A95-108-02接口控制面板 PDF资料
1.产 品 资 料 介 绍：

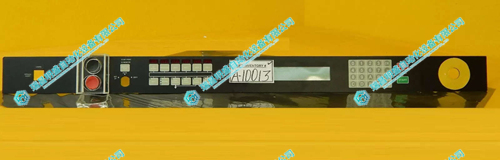

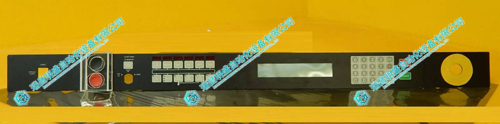

产品名称：Gasonics A95-108-02 接口控制面板
部件类型：人机界面（HMI）/信号接口板
主要功能：提供设备操作、状态显示与控制指令输入功能，作为用户与设备控制系统之间的界面
一、人机交互界面（HMI）核心部件
该面板用于 Gasonics 等离子处理设备（如 Aura、L3500、AE 系列等）中的操作前端，提供按钮、开关、LED 显示或信号指示，用于实时监控与控制。
典型用途：
显示设备运行状态（如“Processing”、“Ready”、“Fault”）
启动/停止处理流程或执行子任务
选择操作模式（如 Auto、Manual、Service）
报警状态和确认操作反馈
二、与主控系统信号通信的接口节点
A95-108-02 接口控制面板作为信号传输中介，连接操作人员输入与设备 PLC 或主控板之间的逻辑控制电路。
相关信号类型：
数字输入/输出（DI/DO）
TTL 或 24V 工业标准控制信号
控制继电器驱动、报警蜂鸣器触发
三、设备维护与调试辅助工具
该面板在设备维护或调试过程中，作为现场技术人员的主要操作接口，可实现快速启动、停止、复位或进入手动模式等功能。
维护应用：
进入手动模式手动测试升降台、阀门、RF
显示当前处理状态或报警代码
触发测试模式进行系统自检
英文资料：
Product Name: Gasonics A95-108-02 Interface Control Panel
Component type: Human Machine Interface (HMI)/Signal Interface Board
Main function: Provide device operation, status display, and control command input functions, serving as the interface between users and device control systems
1、 Human Machine Interaction Interface (HMI) Core Components
This panel is used for the front-end operation in Gasonics plasma processing equipment (such as Aura, L3500, AE series, etc.), providing buttons, switches, LED displays or signal indications for real-time monitoring and control.
Typical use:
Display device operating status (such as "Processing", "Ready", "Fault")
Start/stop processing flow or executing subtasks
Select the operating mode (such as Auto, Manual, Service)
Alarm status and confirmation operation feedback
2、 Interface nodes for signal communication with the main control system
The A95-108-02 interface control panel serves as a signal transmission intermediary, connecting the logic control circuit between the operator input and the equipment PLC or main control board.
Related signal types:
Digital Input/Output (DI/DO)
TTL or 24V industrial standard control signal
Control relay drive and trigger alarm buzzer
3、 Equipment maintenance and debugging auxiliary tools
This panel serves as the main operating interface for on-site technicians during equipment maintenance or debugging, and can achieve functions such as quick start, stop, reset, or entering manual mode.
Maintain the application:
Enter manual mode to manually test the lifting platform, valves RF
Display the current processing status or alarm code
Trigger test mode for system self-test
