Atlas Copco TC52S伺服驱动器 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
ATLAS COPCO TC52S 是一款高性能伺服驱动器，主要配合 Atlas Copco 的电动拧紧系统使用，负责驱动伺服电机，实现对扭矩、转速和位置的精准控制。该驱动器被广泛应用于高要求的自动化装配系统，具备极高的响应速度、稳定性和数据处理能力，特别适用于对拧紧质量要求严格的工业场合。
二、核心功能特点
型号：TC52S
控制对象：Atlas Copco 伺服紧固工具
控制方式：高精度扭矩控制、角度控制、速度控制
实时反馈：支持力矩-角度曲线监控，数据可记录与导出
兼容性强：可集成至 Power Focus 系列控制系统
通信接口：支持多种工业通信协议（如 Ethernet/IP、PROFINET、PROFIBUS）
保护机制：具有过载、短路、温度等多重保护功能
系统集成：易于与 MES、PLC 及 SCADA 系统对接
三、应用领域
1. 汽车制造
发动机、底盘、车身等关键部件的精密装配
配合多轴拧紧系统使用，提升整车装配一致性
2. 工程机械与重工制造
适用于高扭矩紧固，如车桥、结构件、液压元件等装配
保证大型部件的装配精度和安全性
3. 航空航天
用于高可靠性连接件的紧固任务
支持工艺数据全程追溯，符合航空质量体系
4. 工业设备装配
电机、发电机、泵等设备精密螺栓连接
实现可视化拧紧过程管理与数据分析
英文资料：
1、 Product Overview
The TC-52P controller is a fastening control device designed by Atlas Copco, mainly used for power tool management in industrial automated assembly lines. This controller supports multiple communication interfaces and control strategies, with high-precision fastening control and data acquisition functions, suitable for various automated production environments.
2、 Technical Parameters (Summary)
Model: TC-52P
Control functions: torque control, angle control, multi-stage program control
Communication interface: Supports PROFIBUS (P) fieldbus for easy integration with automation systems
Applicable tools: Compatible with Atlas Copco's various electric torque tools
Power supply: Industrial standard voltage input
Functional features:
Multi program storage and fast switching
Real time data monitoring and result recording
Fault diagnosis and alarm function
Support remote operation and software configuration
3、 Application Fields
automobile making
High precision fastening of key parts such as engine, gearbox, and vehicle body
Meet the requirements of quality management system and traceability
Industrial equipment assembly
Standardized assembly of industrial equipment such as motors, pumps, compressors, etc
Multi station and multi tool collaborative control
Aerospace manufacturing
Precise control of high demand fastening process
Complex multi-step program management
Electronics and Home Appliances Industry
Screw fastening of small precision components
Flexible production line support

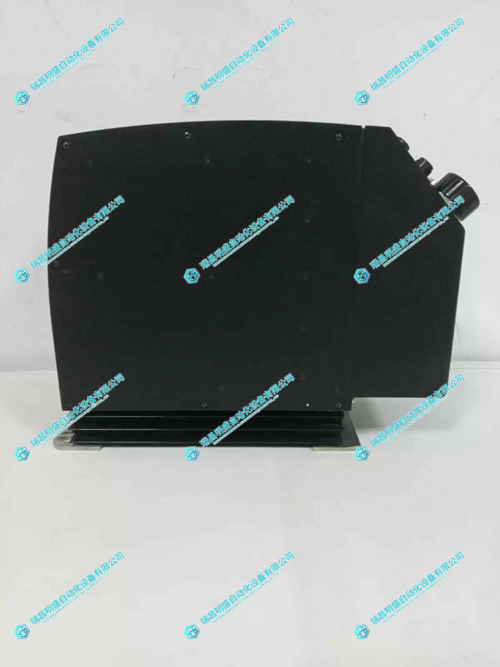

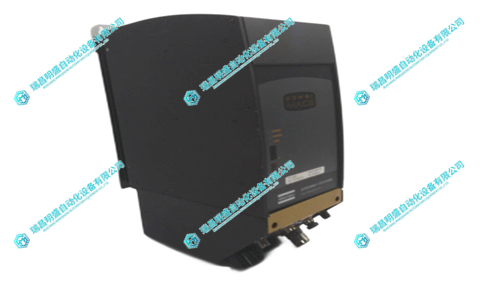

2.产 品 展 示
