Atlas Copco PF3109-G-HW处理器 PDF资料

1.产 品 资 料 介 绍：

中文资料：

一、产品概述

Atlas Copco PF3109-G-HW 是 PF3000 系列中的高性能处理器模块，主要用于驱动和管理 Atlas Copco 的电动拧紧工具（如 Tensor ST、ETX、STR 系列）。该型号为 “G”级（高级）控制器，具备多工具支持能力，集成电源、拧紧程序控制、过程监控和工业通信功能，是工业装配自动化中的核心控制单元。

型号说明：

• PF3109：表示支持9级功率段或更大扭矩范围的工具

• G：表示具备增强功能、可支持多程序、MES连接等扩展能力

• HW：指硬件标准配置版本

二、技术参数（简要）

• 兼容工具：Tensor ST、ETX、STR、EBL 等系列电动工具

• 拧紧方式：扭矩控制 / 角度控制 / 多阶段 / 复合控制

• 通信协议：以太网（Ethernet）、RS232、I/O；可选扩展支持 ProfiBus / DeviceNet / PROFINET

• 程序容量：支持上百个拧紧程序管理

• 焦点识别功能：支持拧紧点识别（Focus Control）

• 安装方式：标准工业控制柜或嵌入式产线安装

• 其他特性：

• 支持故障识别（滑牙、漏拧、超扭）

• 支持拧紧曲线存储与导出

• 可与 ToolsTalk PF 软件、MES/PLC 系统集成

三、应用领域

1. 汽车制造

• 用于发动机、悬挂、传动系统等装配线的关键连接件拧紧控制

• 适合需要多通道、多工位操作的柔性生产环境

• 与 MES 系统集成，实现车身编号与拧紧数据一一对应

2. 新能源汽车行业

• 电池模组结构拧紧、电驱系统外壳、电控装置的精密连接

• 高速总装线中多工位并行操作、焦点识别和程序切换功能

3. 轨道交通与重型工业设备

• 车体结构、减震器、制动系统等重型螺纹连接的高扭矩控制

• 支持中大型工具高负载连续作业，适合严苛工业环境

4. 工业自动化与机器人装配线

• 作为机器人拧紧工作站的核心控制器，实现拧紧工位智能管理

• 多种拧紧程序自动切换，适应不同工件型号和位置

5. 家电和电子制造

• 用于洗衣机、空调等大型家电的螺栓连接工艺控制

• 支持高节拍、高重复精度的小扭矩拧紧任务

英文资料：

1、 Product Overview

Atlas Copco PF3109-G-HW is a high-performance processor module in the PF3000 series, mainly used to drive and manage Atlas Copco's electric tightening tools (such as Tensor ST, ETX, STR series). This model is a "G" level (advanced) controller with multi tool support capabilities, integrating power supply, tightening program control, process monitoring, and industrial communication functions. It is the core control unit in industrial assembly automation.

Model Description:

PF3109: Tool that supports 9-level power range or larger torque range

G: Indicating enhanced functionality, support for multiple programs, MES connectivity and other extension capabilities

HW: Refers to the hardware standard configuration version

2、 Technical parameters (brief)

Compatible tools: Tensor ST, ETX, STR, EBL and other series of power tools

Tightening method: torque control/angle control/multi-stage/composite control

Communication protocols: Ethernet, RS232, I/O; Optional extension supports ProfiBus/DeviceNet/PROFINET

Program capacity: Supports management of hundreds of tightening programs

Focus recognition function: supports tightening point recognition (Focus Control)

Installation method: Standard industrial control cabinet or embedded production line installation

Other features:

Support fault identification (slipping teeth, missing twist, over twist)

Support tightening curve storage and export

Can be integrated with ToolsTalk PF software and MES/PLC systems

3、 Application Fields

1. Automobile manufacturing

Tightening control of key connectors used in assembly lines such as engines, suspensions, and transmission systems

Suitable for flexible production environments that require multi-channel and multi station operations

Integrate with MES system to achieve one-to-one correspondence between vehicle body number and tightening data

2. New energy vehicle industry

Tightening of battery module structure, precise connection of electric drive system casing and electronic control device

Multi station parallel operation, focus recognition, and program switching functions in high-speed assembly lines

3. Rail transit and heavy industrial equipment

High torque control of heavy-duty threaded connections such as vehicle structure, shock absorbers, and braking systems

Support high load continuous operation of medium and large tools, suitable for harsh industrial environments

4. Industrial automation and robot assembly line

As the core controller of the robot tightening workstation, it realizes intelligent management of the tightening workstation

Multiple tightening programs automatically switch to adapt to different workpiece models and positions

5. Home appliances and electronics manufacturing

Bolt connection process control for large household appliances such as washing machines and air conditioners

Support small torque tightening tasks with high tempo and high repeatability accuracy

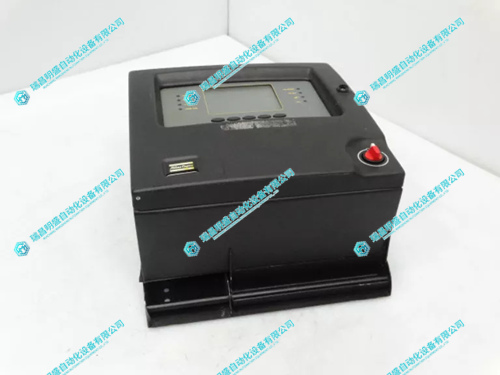

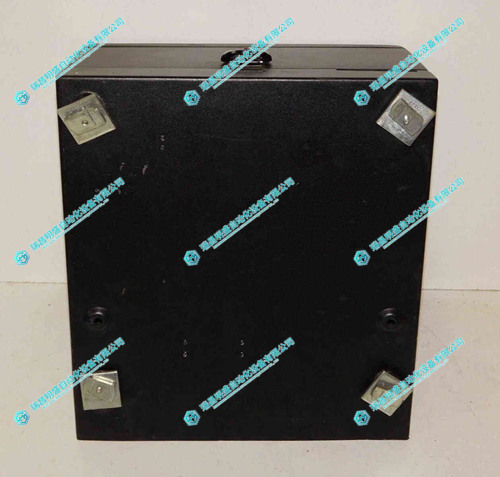

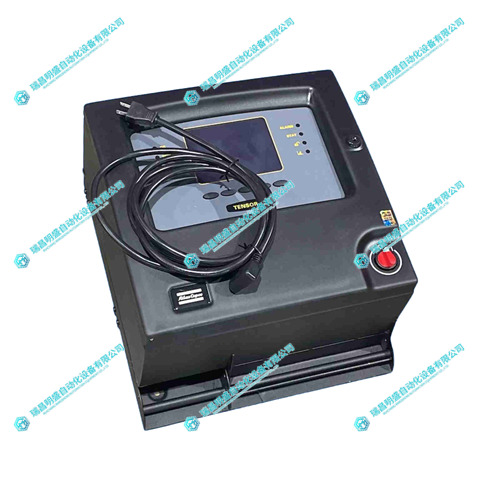

2.产      品      展      示

3.其他产品

KOLLMORGEN AKM42E-EKGNR-01伺服电机

ABB GDC801B101 印刷电路板

Bently 330108-91-05电源模块

4.其他英文产品

Asea 2668 170-3 Pcb Circuit Board

ASEA SNAT7600 driver control circuit board

ABB 3DDE300417 Input/Output Board

本篇文章出自瑞昌明盛自动化设备有限公司官网，转载请附上此链接:http://www.jiangxidcs

品牌：Atlas Copco

型号：PF3109-G-HW处理器

质保：一年

成色：全新/二手

优势产品：ABB、GE、FOXBORO、TRICONEX、BENTLY、A-B、MOTOROLA、HONEYWELL 、SCHNEIDER

                    WOODWARD、EMERSON、RELIANCE、DEIF、NI、XYVOM等

特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

应用行业：广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、烟草、塑胶机械、电力、水利、水处理/环保、市政工程、锅炉供暖、能源、输配电等

快递方式：国内顺丰、德邦、京东快递包邮，按照实际报价货期发货  P8123 DEIF DELOMATIC-3 DGU2机箱
