Atlas Copco PF3007-C-HW扭矩控制器 PDF资料

1.产 品 资 料 介 绍：

中文资料：

一、产品概述

Atlas Copco PF3007-C-HW 是 PF3000 系列中一款高性能、紧凑型扭矩控制器，主要用于控制 Atlas Copco 的电动拧紧工具（如 Tensor ST、ES、ETX 系列），实现扭矩与角度精确控制。该控制器内置智能拧紧算法，可集成于自动化产线与装配工位中，适用于对拧紧精度与可追溯性有较高要求的工业应用。

二、技术参数（简要）

• 控制方式：扭矩控制、角度控制、时间控制、复合拧紧策略

• 兼容工具：支持 Tensor ST、ES、ETX 等系列拧紧工具

• 通信接口：以太网、I/O、RS232、（可选 Profibus/DeviceNet）

• 数据功能：支持拧紧曲线记录、追溯码绑定、错误检测

• 安装形式：模块化设计，适合控制柜或产线工位集成使用

• 适配软件：与 ToolsTalk PF 软件或MES系统集成使用

三、应用领域

1. 汽车制造

• 动力总成（发动机、变速箱）、底盘系统的关键连接螺栓拧紧

• 仪表台、车门、座椅等装配线工位对扭矩一致性要求较高的场合

• 车体焊装后的高强度螺丝安装作业

2. 新能源汽车行业

• 电池模组安装、电机驱动系统的高精度拧紧

• 电控单元、冷却系统等部件对螺丝角度和扭矩的精细控制

3. 家电与电子产品制造

• 小家电装配（如洗衣机、电动工具、电动吸尘器）的批量装配

• 消费电子（如电视机、电路模块）中塑料件或金属件紧固控制

4. 轨道交通与工程机械

• 结构连接部位的中高扭矩螺栓拧紧

• 关键安全连接点的质量可追溯装配过程

5. 工业设备制造

• 工业机器人、自动化机械、电控柜等结构部件装配

• 精密机械组装，如机床导轨、滑台、线性传动系统的精密固定

英文资料：

1、 Product Overview

Atlas Copco PF3007-C-HW is a high-performance, compact torque controller in the PF3000 series, mainly used to control Atlas Copco's electric tightening tools (such as Tensor ST, ES, ETX series), achieving precise control of torque and angle. The controller is equipped with an intelligent tightening algorithm that can be integrated into automated production lines and assembly stations, making it suitable for industrial applications that require high tightening accuracy and traceability.

2、 Technical parameters (brief)

Control methods: torque control, angle control, time control, composite tightening strategy

Compatible tools: Supports tightening tools such as Tensor ST, ES, ETX series, etc

Communication interface: Ethernet I/O、RS232、 (optional Profibus/DeviceNet)

Data function: supports tightening curve recording, traceability code binding, and error detection

Installation form: Modular design, suitable for integrated use in control cabinets or production line workstations

Adaptation software: integrated with ToolsTalk PF software or MES system for use

3、 Application Fields

1. Automobile manufacturing

Tighten the key connecting bolts of the powertrain (engine, gearbox) and chassis system

In situations where assembly line workstations such as instrument panels, car doors, and seats require high torque consistency

Installation of high-strength screws after welding of the vehicle body

2. New energy vehicle industry

High precision tightening of battery module installation and motor drive system

Fine control of screw angle and torque by electronic control unit, cooling system and other components

3. Manufacturing of household appliances and electronic products

Batch assembly of small household appliances (such as washing machines, power tools, and electric vacuum cleaners)

Plastic or metal parts fastening control in consumer electronics (such as televisions, circuit modules)

4. Rail Transit and Engineering Machinery

Tightening of medium to high torque bolts at structural connection points

The quality of key safety connection points can be traced back to the assembly process

5. Industrial equipment manufacturing

Assembly of structural components such as industrial robots, automation machinery, and electrical control cabinets

Precision mechanical assembly, such as precision fixing of machine tool guide rails, slide tables, and linear transmission systems

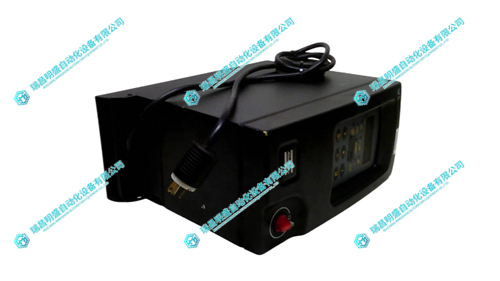

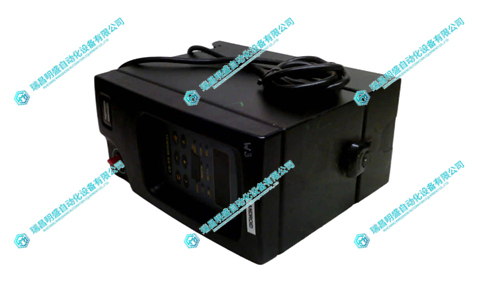

2.产      品      展      示
