Atlas Copco PF4000-C-DN-HW控制器 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Atlas Copco PF4000-C-DN-HW 控制器
产品概述：
PF4000-C-DN-HW 是 Atlas Copco Power Focus 4000 系列中的一款工业级拧紧控制器。该型号专为高精度电动工具提供控制、监测和通信功能，特别适用于对拧紧过程有高可靠性与数据追溯要求的工业装配环境。
型号说明：
PF4000：Power Focus 4000 系列
C：单通道控制器（支持一把工具）
DN：支持 DeviceNet 通信协议
HW：硬件授权版本（与软件激活版本区分）
核心功能：
控制和管理 Atlas Copco 电动工具（如 Tensor ST、Tensor S）
支持多种拧紧策略：扭矩控制、角度控制、组合策略等
实时采集并记录拧紧过程参数
过程错误自动报警与停机处理
可与 PLC、MES 系统集成，实现全流程追溯
通信接口与协议：
DeviceNet（工业总线）
USB、本地 I/O
可选 Open Protocol 支持（供 MES 系统调用）
应用领域：
汽车装配（发动机、底盘、内饰件）
电气设备和电机总装
家电制造及模块化生产
工业自动化控制线体
所有需要扭矩数据追踪的装配场景
产品优势：
工业级可靠性，适用于全天候生产环境
控制精度高，响应速度快
数据记录全面，支持追溯与质量分析
易于安装、配置与维护
与 Atlas Copco 工具系统无缝对接
英文资料：
Atlas Copco PF4000-C-DN-HW Controller
Product Overview:
PF4000-C-DN-HW is an industrial grade tightening controller in the Atlas Copco Power Focus 4000 series. This model is designed to provide control, monitoring, and communication functions for high-precision electric tools, especially suitable for industrial assembly environments that require high reliability and data traceability during the tightening process.
Model Description:
PF4000: Power Focus 4000 Series
C: Single channel controller (supports one tool)
DN: Supports DeviceNet communication protocol
HW: Hardware authorization version (distinguished from software activation version)
Core functions:
Control and manage Atlas Copco power tools (such as Tensor ST, Tensor S)
Support multiple tightening strategies: torque control, angle control, combination strategy, etc
Real time collection and recording of tightening process parameters
Automatic alarm and shutdown handling for process errors
Can be integrated with PLC and MES systems to achieve full process traceability
Communication interface and protocol:
DeviceNet (Industrial Bus)
USB、 Local I/O
Optional Open Protocol support (for MES system to call)
Application areas:
Automotive assembly (engine, chassis, interior parts)
Electrical equipment and motor assembly
Home appliance manufacturing and modular production
Industrial automation control line body
All assembly scenarios that require torque data tracking
Product advantages:
Industrial grade reliability, suitable for all-weather production environments
High control accuracy and fast response speed
Comprehensive data recording, supporting traceability and quality analysis
Easy to install, configure, and maintain
Seamless integration with Atlas Copco tool system

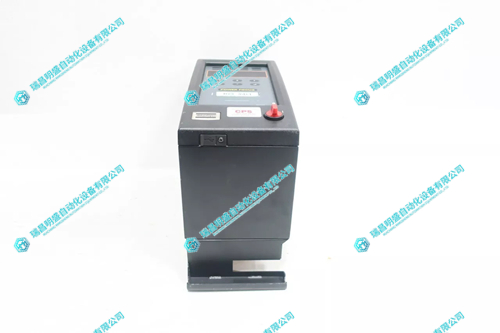

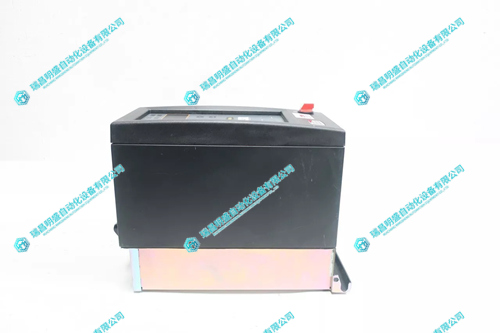

2.产 品 展 示
