KEBA D1323G-1温度模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
KEBA D1323G-1 是一款专用于工业自动化系统的 温度采集模块，用于测量和处理多路温度传感器信号。该模块能够接收来自热电偶、热阻（RTD）等多种类型的温度传感器输入，经过信号转换和滤波处理后，将温度数据传递给主控制系统，实现精准的温度监控与调节。广泛应用于注塑机温控、工业炉窑、塑料成型及其他需精确温度管理的设备中。
二、技术参数
型号：D1323G-1
功能类型：多通道温度采集模块
输入类型：
支持多种热电偶类型（如 K、J、T、E 等）
支持 PT100、PT1000 等热阻传感器
通道数：通常支持 8 路或更多温度输入
输入信号范围：依传感器类型不同，典型测量范围为 -200°C 至 +1200°C
分辨率：高精度 A/D 转换，保证温度测量精度达到 ±0.1°C 级别
响应时间：实时采样，支持快速温度变化监控
供电电压：24V DC
通信接口：与 KEBA 控制主板通过专用总线连接
工作温度范围：-10°C 至 +60°C，适应工业环境
安装方式：DIN 导轨安装，模块化设计方便扩展
防护等级：IP20，适合电控柜内部使用
英文资料：
KEBA D1323G-1 is a temperature acquisition module specifically designed for industrial automation systems, used for measuring and processing multiple temperature sensor signals. This module can receive inputs from various types of temperature sensors such as thermocouples and thermal resistance detectors (RTDs). After signal conversion and filtering, the temperature data is transmitted to the main control system to achieve accurate temperature monitoring and adjustment. Widely used in temperature control of injection molding machines, industrial furnaces, plastic molding, and other equipment that requires precise temperature management.
2、 Technical parameters
Model: D1323G-1
Function type: Multi channel temperature acquisition module
Input type:
Supports multiple thermocouple types (such as K, J, T, E, etc.)
Support thermal resistance sensors such as PT100 and PT1000
Number of channels: usually supports 8 or more temperature inputs
Input signal range: Depending on the type of sensor, the typical measurement range is -200 ° C to+1200 ° C
Resolution: High precision A/D conversion ensures temperature measurement accuracy reaches ± 0.1 ° C level
Response time: Real time sampling, supporting rapid temperature change monitoring
Power supply voltage: 24V DC
Communication interface: Connected to the KEBA control motherboard through a dedicated bus
Working temperature range: -10 ° C to+60 ° C, suitable for industrial environments
Installation method: DIN rail installation, modular design for easy expansion
Protection level: IP20, suitable for use inside electrical control cabinets

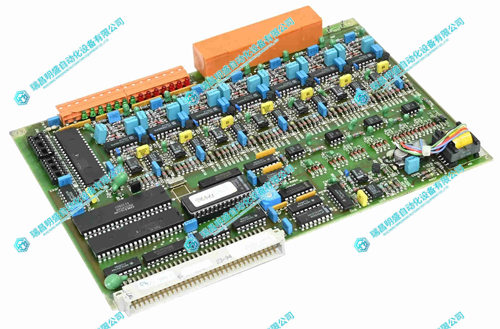

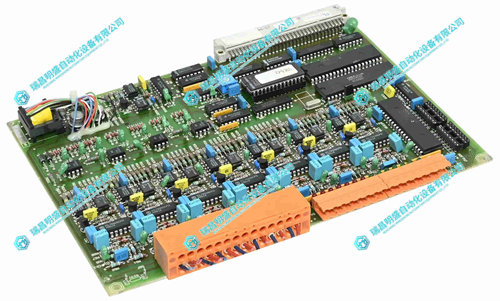

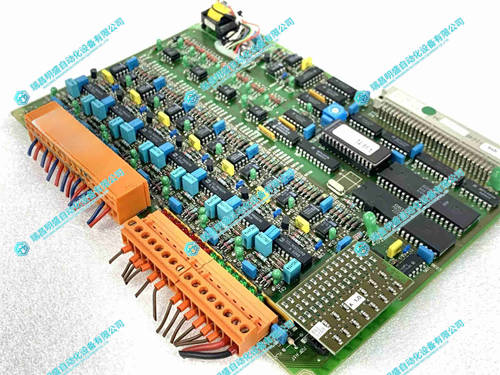

2.产 品 展 示
