KEBA D1456E-2输出板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
KEBA D1456E-2 是一款用于工业控制系统中的 数字输出板（Digital Output Board），专为 KEBA 自动化平台开发。该模块负责接收来自主控制器的输出指令，并将其转化为控制信号，用于驱动现场设备如继电器、电磁阀、指示灯等。D1456E-2 输出板具备多通道、高响应、高可靠性等特点，是实现工业设备状态控制的重要模块之一。
二、技术参数
型号：D1456E-2
类型：数字量输出板
输出通道数：一般为 16 或 32 路（具体取决于版本）
输出类型：晶体管输出，通常为 PNP（源型）
输出电压：24V DC（标准工业控制电压）
每通道输出电流：最大 0.5A（建议负载根据使用手册确认）
总输出电流：根据总线负载能力和散热条件限制（约 8A）
响应时间：< 1ms，高速逻辑切换能力
接线方式：通过排针、接线端子或中间连接板与设备连接
工作温度：-10°C ~ +60°C
防护等级：IP20，适用于电控柜内部环境
适配平台：与 KEBA KeControl / KePlast 系列主机模块兼容
三、应用领域
工业机器人系统
用于控制末端执行器、真空泵、电磁夹具等组件的启停。
注塑机自动控制系统
输出控制信号用于模具开合、顶出、冷却系统等。
装配线与物流输送系统
控制输送带电机、气动阀门、报警指示设备等。
数控设备与OEM专用机
作为逻辑输出模块，控制多通道动作切换或状态反馈。
英文资料：
KEBA D1456E-2 is a digital output board designed for industrial control systems, specifically developed for the KEBA automation platform. This module is responsible for receiving output instructions from the main controller and converting them into control signals for driving field devices such as relays, solenoid valves, indicator lights, etc. The D1456E-2 output board has the characteristics of multi-channel, high response, and high reliability, and is one of the important modules for achieving industrial equipment state control.
2、 Technical parameters
Model: D1456E-2
Type: Digital output board
Number of output channels: usually 16 or 32 channels (depending on the version)
Output type: transistor output, usually PNP (source type)
Output voltage: 24V DC (standard industrial control voltage)
Output current per channel: maximum 0.5A (it is recommended to confirm the load according to the user manual)
Total output current: limited by bus load capacity and heat dissipation conditions (approximately 8A)
Response time:<1ms, high-speed logic switching capability
Wiring method: Connect to the equipment through pin headers, terminal blocks, or intermediate connection boards
Working temperature: -10 ° C~+60 ° C
Protection level: IP20, suitable for the internal environment of the electrical control cabinet
Adaptation Platform: Compatible with KEBA KeControl/KePlast series host modules
3、 Application Fields
Industrial Robot System
Used to control the start and stop of components such as end effectors, vacuum pumps, electromagnetic fixtures, etc.
Automatic control system for injection molding machine
Output control signals for mold opening and closing, ejection, cooling systems, etc.
Assembly line and logistics conveying system
Control the conveyor belt motor, pneumatic valve, alarm indicator equipment, etc.
Numerical Control Equipment and OEM Specialized Machines
As a logical output module, it controls multi-channel action switching or state feedback.

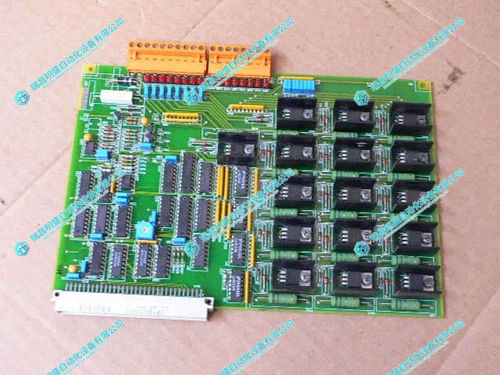

2.产 品 展 示
