KEBA 1770B-1处理器电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
KEBA 1770B-1 是 KEBA 自动化控制系统中的一款嵌入式处理器控制板（Processor Control Board），用于执行控制逻辑、通信管理和系统协调任务。它通常作为 KeControl 系列控制器的核心处理单元，集成于工业自动化设备，如注塑机、机器人、包装机械等，负责运行嵌入式操作系统、实时控制任务和与外围模块的通信协调。
**二、技术参数（简要）
产品型号：KEBA 1770B-1
板卡类型：主控处理器电路板 / 嵌入式控制单元
处理器架构：工业级 CPU（具体型号可能为 ARM 或 PowerPC 系列）
内存配置：带有 RAM、Flash 存储（具体容量根据系统版本可能不同）
通信接口：
Ethernet（工业网络通信）
CAN 总线（现场设备通信）
RS232/485、USB（调试/扩展）
工作电压：24V DC
工作温度：-10°C ~ +60°C（工业温度范围）
安装方式：机架插槽或模块化嵌入式安装
适配平台：KeControl C3 / C5、KePlast、KeMotion 系列控制系统
**三、应用领域
注塑机控制系统（KePlast 平台）
作为主处理器，负责注塑成型过程中的动作控制、温度调节、压力反馈和界面响应。
工业机器人与运动控制
用于机器人控制系统中的中央处理板卡，实现高速运动轨迹计算与实时控制逻辑。
自动化产线主控模块
管理传感器、执行器等外围设备的数据采集与指令下发，实现设备协同动作。
OEM 工业设备主控
广泛用于定制工业设备中，作为嵌入式核心 CPU 板，提供实时控制与人机接口支持。
英文资料：
KEBA 1770B-1 is an embedded processor control board in the KEBA automation control system, used for executing control logic, communication management, and system coordination tasks. It is usually used as the core processing unit of KeControl series controllers, integrated into industrial automation equipment such as injection molding machines, robots, packaging machinery, etc., responsible for running embedded operating systems, real-time control tasks, and communication coordination with peripheral modules.
**2、 Technical parameters (brief)
Product model: KEBA 1770B-1
Board type: main control processor circuit board/embedded control unit
Processor architecture: Industrial grade CPU (specific models may be ARM or PowerPC series)
Memory configuration: equipped with RAM and Flash storage (specific capacity may vary depending on system version)
Communication interface:
Ethernet (Industrial Network Communication)
CAN bus (field device communication)
RS232/485, USB (debugging/expansion)
Working voltage: 24V DC
Working temperature: -10 ° C~+60 ° C (industrial temperature range)
Installation method: Rack slot or modular embedded installation
Adaptation platforms: KeControl C3/C5, KePlast, KeMotion series control systems
**3、 Application Fields
Injection molding machine control system (KePlast platform)
As the main processor, responsible for action control, temperature regulation, pressure feedback, and interface response during the injection molding process.
Industrial Robots and Motion Control
Used as a central processing board in robot control systems to achieve high-speed motion trajectory calculation and real-time control logic.
Automated production line main control module
Manage the data collection and command issuance of peripheral devices such as sensors and actuators to achieve device collaborative actions.
OEM Industrial Equipment Master Control
Widely used in customized industrial equipment as an embedded core CPU board, providing real-time control and human-machine interface support.

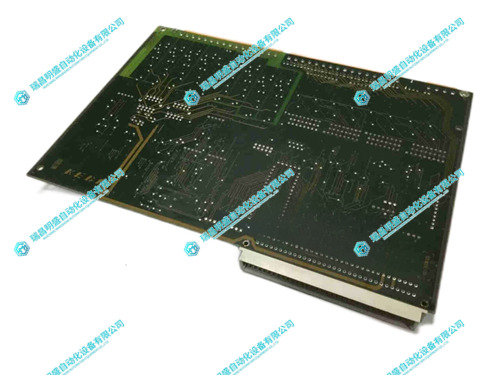

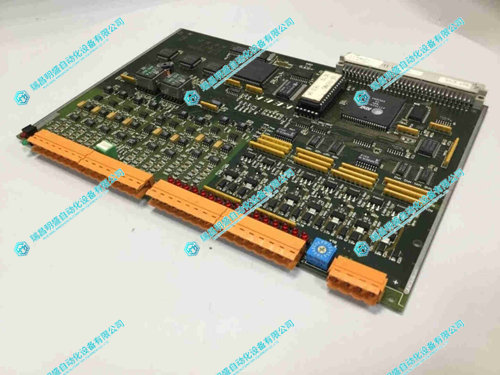

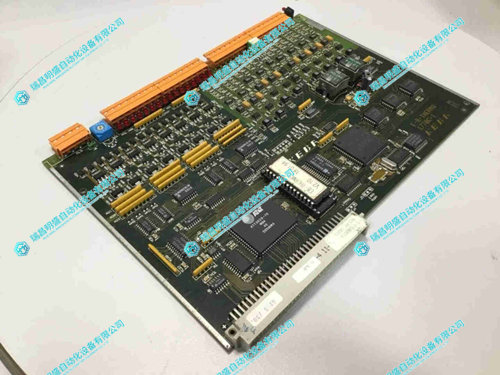

2.产 品 展 示
