KEBA TI-570热电偶输入模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
KEBA TI-570 热电偶输入模块** 是 KeControl 系列控制系统中的模拟量采集模块，专为接收和处理来自热电偶传感器的温度信号而设计。该模块通过高速、高精度的模拟-数字转换器（ADC），将热电偶的毫伏级信号转换为可被控制系统处理的数值数据，广泛应用于各种工业温控场合。
技术参数：
模块类型：热电偶模拟输入模块
输入通道数：8 路独立热电偶输入
支持热电偶类型：J、K、T、E、N、R、S、B 等多种标准热电偶
分辨率：16 位 A/D 转换精度
采样速率：每通道 50ms～250ms（依据配置）
测量范围：依据热电偶类型可覆盖 -200°C 至 +1800°C
冷端补偿：内置冷端自动补偿功能（CJC）
通道隔离：每通道电气隔离，抗干扰性能强
连接方式：通过系统背板或扩展总线连接至主控制器
工作电压：24V DC 供电
安装方式：标准 DIN 导轨安装
工作环境温度：0°C 至 +55°C
产品应用领域：
1. 注塑机温度控制系统
采集模具加热区、喷嘴、筒体等关键区域的温度信号。
与 KePlast 控制器配合，实现闭环温控。
2. 加热/冷却系统过程控制
用于电加热炉、蒸汽管线、电烘箱、热处理设备的温度监测。
实现多点同步采集与区域温度差控制。
3. 食品与制药设备监控
对灭菌、烘干、恒温保存等设备的温度进行精确测量。
满足GMP与HACCP等监管需求下的实时温度数据采集。
4. 包装与印刷行业
控制封口机、加热辊、热压等部位温度，确保工艺稳定性。
提供热封温区的实时反馈以防质量波动。
5. 冶金与陶瓷高温过程
采集高温烧结、熔炼炉等场景下的温度变化。
模块支持高温范围的热电偶类型（如 B、R、S 型）。
6. 新能源与储能设备
检测电池包、储能舱、光伏逆变器中的关键温度点。
实现安全监控与过温保护逻辑。
英文资料：
The KEBA TI-570 thermocouple input module is an analog acquisition module in the KeControl series control system, designed specifically for receiving and processing temperature signals from thermocouple sensors. This module converts the millivolt level signals of thermocouples into numerical data that can be processed by control systems through high-speed and high-precision analog-to-digital converters (ADCs), and is widely used in various industrial temperature control applications.
Technical parameters:
Module Type: Thermocouple Analog Input Module
Number of input channels: 8 independent thermocouple inputs
Support thermocouple types: J, K, T, E, N, R, S, B and other standard thermocouples
Resolution: 16 bit A/D conversion accuracy
Sampling rate: 50ms to 250ms per channel (depending on configuration)
Measurement range: Depending on the type of thermocouple, it can cover temperatures from -200 ° C to+1800 ° C
Cold end compensation: Built in cold end automatic compensation function (CJC)
Channel isolation: Each channel is electrically isolated, with strong anti-interference performance
Connection method: Connect to the main controller through the system backplane or expansion bus
Working voltage: 24V DC power supply
Installation method: Standard DIN rail installation
Working environment temperature: 0 ° C to+55 ° C
Product application areas:
1. Injection molding machine temperature control system
Collect temperature signals from key areas such as the heating zone, nozzle, and cylinder of the mold.
Cooperate with KePlast controller to achieve closed-loop temperature control.
2. Process control of heating/cooling system
Used for temperature monitoring of electric heating furnaces, steam pipelines, electric ovens, and heat treatment equipment.
Realize multi-point synchronous acquisition and regional temperature difference control.
3. Monitoring of food and pharmaceutical equipment
Accurately measure the temperature of sterilization, drying, and constant temperature storage equipment.
Real time temperature data collection to meet regulatory requirements such as GMP and HACCP.
4. Packaging and Printing Industry
Control the temperature of sealing machine, heating roller, hot pressing and other parts to ensure process stability.
Provide real-time feedback on the heat sealing temperature zone to prevent quality fluctuations.
5. High temperature processes in metallurgy and ceramics
Collect temperature changes in scenarios such as high-temperature sintering and melting furnaces.
The module supports thermocouple types with high temperature range (such as B, R, S type).
6. New energy and energy storage equipment
Detect key temperature points in battery packs, energy storage compartments, and photovoltaic inverters.
Implement safety monitoring and over temperature protection logic.

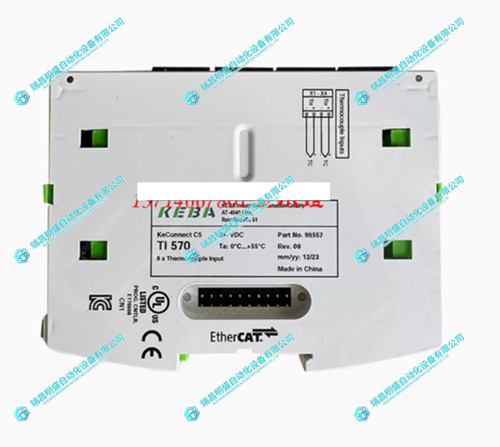

2.产 品 展 示
