UNIOP ETOP05-0045 操作界面 PDF资料
1.产 品 资 料 介 绍：
中文资料：
UniOP ETOP05-0045 操作界面简介
一、产品概述
UniOP ETOP05-0045 是一款紧凑型工业人机界面（HMI）触摸面板，配备 5.7 英寸单色液晶显示屏，适合中小型自动化系统的控制与监控需求。
二、主要技术参数
显示屏：5.7 英寸单色 LCD，分辨率 320×240 像素
触摸方式：电阻式触摸屏
背光：白色 LED 背光
存储容量：约 32MB 用户程序空间
电源输入：24V DC，约 0.6A
通信接口：支持 RS-232、RS-422、RS-485，可连接 PC 或打印机；支持额外的以太网模块扩展
软件支持：兼容 UniOP Designer 6，支持图形化设计、宏命令、报警管理、历史数据、配方管理及多语言界面
三、典型应用领域
小型工业自动化设备控制，如机械设备参数设置与状态监控
楼宇自动化系统，包括空调、电梯和水泵等控制
过程监控与数据管理，支持报警记录、趋势显示、配方切换等功能
系统集成，支持多种通信协议与现场总线扩展
旧设备维修和替代应用
英文资料：
Introduction to UniOP ETOP05-0045 Operating Interface
1、 Product Overview
UniOP ETOP05-0045 is a compact industrial human-machine interface (HMI) touch panel equipped with a 5.7-inch monochrome LCD display screen, suitable for the control and monitoring needs of small and medium-sized automation systems.
2、 Main technical parameters
Display screen: 5.7-inch monochrome LCD with a resolution of 320 × 240 pixels
Touch mode: resistive touch screen
Backlight: White LED backlight
Storage capacity: approximately 32MB user program space
Power input: 24V DC, approximately 0.6A
Communication interface: Supports RS-232, RS-422, RS-485, can be connected to PC or printer; Support additional Ethernet module expansion
Software support: Compatible with UniOP Designer 6, supporting graphical design, macro commands, alarm management, historical data, recipe management, and multilingual interface
3、 Typical application areas
Control of small industrial automation equipment, such as parameter setting and status monitoring of mechanical equipment
Building automation system, including control of air conditioning, elevators, water pumps, etc
Process monitoring and data management, supporting functions such as alarm recording, trend display, formula switching, etc
System integration, supporting multiple communication protocols and fieldbus extensions
Old equipment maintenance and replacement applications

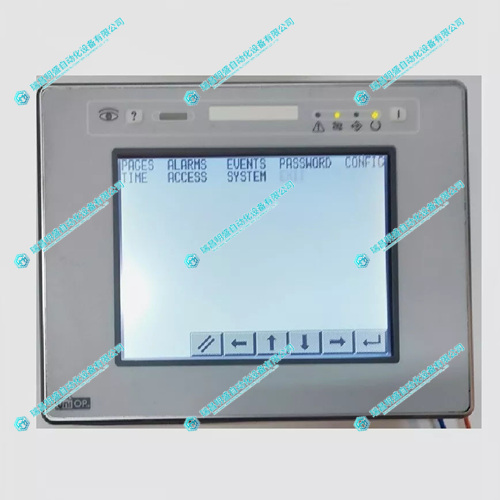

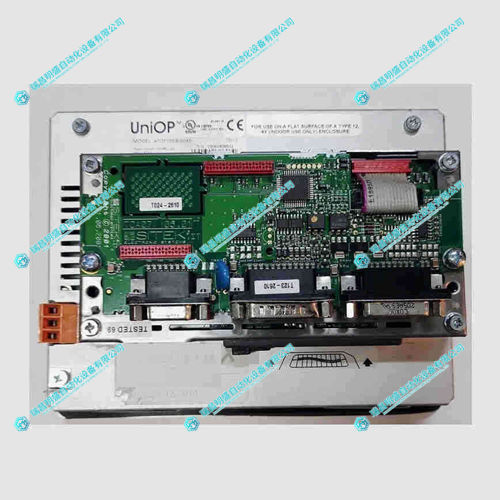

2.产 品 展 示
