Tokyo Electron 3208-000146-11输入/输出模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
TEL Tokyo Electron 3208-000146-11 输入/输出模块（Input/Output Module） 是 Tokyo Electron 半导体设备控制系统中的关键组成部分，主要用于实现设备与外部传感器、执行机构之间的信号交换，负责采集设备运行的各种输入信号并输出控制指令，保障工艺流程的准确执行。
一、基本信息
产品型号： 3208-000146-11
产品名称： 输入/输出模块（I/O Module）
制造商： Tokyo Electron Ltd.（TEL）
模块类别： 数字及模拟信号采集与输出模块
安装方式： 机架插拔式模块，集成于控制柜或机架系统中
二、主要功能
数字输入与输出
接收来自传感器、开关量信号的数字输入（DI），如限位开关、门控传感器、按钮状态等；
控制继电器、电磁阀等执行器的数字输出（DO），实现机械动作、工艺切换等。
模拟量输入与输出（如支持）
采集温度、压力、流量等模拟信号，通过A/D转换转化为数字数据；
输出模拟控制信号给执行机构，如阀门调节、电机调速等。
信号隔离与保护
内置光电隔离等电气保护设计，防止干扰和故障传播；
支持过压、过流保护，保障设备运行安全。
与主控制单元通信
通过背板总线或工业现场总线与中央控制器连接，实时传输采集数据与控制指令；
支持多模块组合，满足复杂设备多路信号管理需求。
英文资料：
The input/output module of TEL Tokyo Electron 3208-000146-11 is a key component of the Tokyo Electron semiconductor equipment control system. It is mainly used to exchange signals between the equipment and external sensors and actuators, collect various input signals for equipment operation, and output control instructions to ensure the accurate execution of the process flow.
1、 Basic Information
Product model: 3208-000146-11
Product Name: I/O Module
Manufacturer: Tokyo Electron Ltd. (TEL)
Module Category: Digital and Analog Signal Acquisition and Output Module
Installation method: Rack plug-in module, integrated into the control cabinet or rack system
2、 Main functions
Digital input and output
Receive digital inputs (DI) from sensors and switch signals, such as limit switches, door control sensors, button status, etc;
Control the digital output (DO) of actuators such as relays and solenoid valves to achieve mechanical actions, process switching, etc.
Analog input and output (if supported)
Collect analog signals such as temperature, pressure, and flow rate, and convert them into digital data through A/D conversion;
Output analog control signals to actuators, such as valve adjustment, motor speed regulation, etc.
Signal isolation and protection
Built in electrical protection design such as photoelectric isolation to prevent interference and fault propagation;
Support overvoltage and overcurrent protection to ensure the safe operation of equipment.
Communicate with the main control unit
Connect to the central controller through the backplane bus or industrial fieldbus to transmit real-time collected data and control instructions;
Support multiple module combinations to meet the management needs of complex devices with multiple signals.

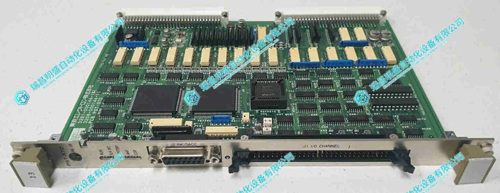

2.产 品 展 示
