Tokyo Electron 3281-000083-11电源分配板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
TEL Tokyo Electron 3281-000083-11 电源分配板（Power Distribution Board, PDB） 是一款应用于半导体设备中的关键供电管理模块，主要用于将来自电源单元（如 3D80 系列）的多路直流电压，分配到控制板卡、传感器模块、执行组件等各个子系统，确保整机各功能模块获得稳定、安全的电力支持。
一、基本信息
产品型号： 3281-000083-11
产品名称： 电源分配板（Power Distribution Board）
制造商： Tokyo Electron Ltd.（TEL）
安装方式： 机架插板式 / 背板挂装式
所属系统： 控制主机架 / I/O 子机架 / 电源机柜
二、核心功能
多路电源接入与转换
从主电源模块（如 3D80-001480-V1）输入 DC 电源（如 +24V、+12V、+5V、±15V DC）；
对输入电压进行滤波、稳压、保护处理。
电源分配与输出
将稳压后的各路电源通过分路电路输出至各个功能模块（如控制器、I/O 板、通信模块、执行器）；
通常支持多个独立供电回路，可接航空插头、背板插针、螺栓式端子等。
保护与监测功能
每路输出配备保险丝、电流限制、反接保护、防短路等安全电路；
支持过流、过温告警信号反馈至主控制器（如 E244 或 BX81 系统）。
电压指示与状态反馈
板载电压状态指示灯，方便运维人员判断工作状态；
一些型号支持连接数字监控板卡，进行远程电源状态采集与报警处理。
英文资料：
TEL Tokyo Electron 3281-000083-11 Power Distribution Board (PDB) is a critical power management module used in semiconductor equipment. It is mainly used to distribute multiple DC voltages from power units (such as 3D80 series) to various subsystems such as control boards, sensor modules, and execution components, ensuring stable and safe power support for all functional modules of the machine.
1、 Basic Information
Product model: 3281-000083-11
Product Name: Power Distribution Board
Manufacturer: Tokyo Electron Ltd. (TEL)
Installation method: rack plug-in/backboard hanging type
System: Control host rack/I/O sub rack/power cabinet
2、 Core functions
Multi channel power access and conversion
Input DC power (such as+24V,+12V,+5V, ± 15V DC) from the main power module (such as 3D80-001480-V1);
Filter, stabilize, and protect the input voltage.
Power distribution and output
Output the stabilized power supplies to various functional modules (such as controllers, I/O boards, communication modules, and actuators) through branch circuits;
It usually supports multiple independent power supply circuits and can be connected to aviation plugs, backplane pins, bolted terminals, etc.
Protection and monitoring functions
Each output is equipped with safety circuits such as fuses, current limits, reverse polarity protection, and short-circuit protection;
Support feedback of overcurrent and over temperature alarm signals to the main controller (such as E244 or BX81 system).
Voltage indication and status feedback
Onboard voltage status indicator light, convenient for operation and maintenance personnel to judge the working status;
Some models support connecting digital monitoring boards for remote power status acquisition and alarm processing.

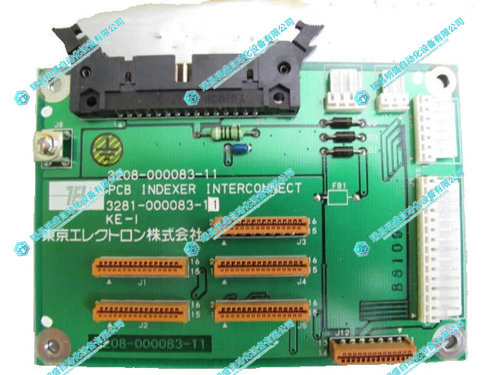

2.产 品 展 示
