Tokyo Electron 1B80-002394-11添加板 PDF资料
1.产 品 资 料 介 绍：
中文资料：

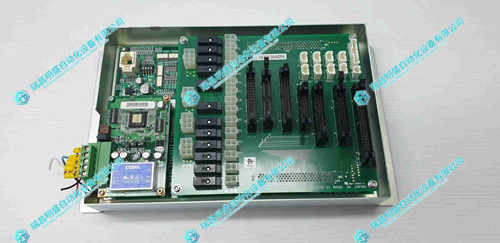

TEL Tokyo Electron 1B80-002394-11 添加板（Add-On Board） 是一块安装在东京电子（TEL）半导体设备主控制系统或功能模块中的扩展电路板，用于增强现有主板的功能、增加I/O接口、支持特定信号处理或通信扩展，是设备模块化设计的重要体现。
一、产品基本信息
| 项目 | 内容 |
|---|---|
| 产品名称 | 添加板 / 扩展板（Add-On Board） |
| 产品型号 | 1B80-002394-11 |
| 所属品牌 | Tokyo Electron Ltd.（东京电子） |
| 安装方式 | 插接式或堆叠式连接于主控板或子系统模块上 |
二、主要功能
功能扩展
为主控制板或I/O控制系统提供附加功能，如额外的输入/输出通道、模拟信号处理、温度/压力接口、光耦隔离等。
通信接口拓展
提供额外的串口、并口、CAN、RS-422/485或光纤通信接口，满足复杂设备间或模块间数据交互需求。
信号处理与适配
实现信号调理、隔离、放大、滤波等操作，保障主板处理的信号稳定有效。
定制用途
某些TEL设备特定工艺段中，此添加板可能作为“定制电路”平台，连接专用传感器或执行机构。
三、典型应用场景
设备控制系统升级或功能拓展
在原有主板不更换的情况下，增加更多外设连接能力或处理逻辑。
复杂I/O需求的场景
如多个传感器输入、电磁阀输出等，无法在单块主控板完成时，通过添加板实现补充。
设备模块化组装与维修
易于拆装、更换和功能升级，提升系统的可维护性和扩展性。
英文资料：
TEL Tokyo Electron 1B80-002394-11 Add On Board is an expansion circuit board installed in the main control system or functional module of Tokyo Electronics (TEL) semiconductor equipment. It is used to enhance the functionality of existing motherboards, increase I/O interfaces, support specific signal processing or communication expansion, and is an important manifestation of device modular design.
1、 Basic Product Information
Project Content
Product Name: Add On Board
Product model 1B80-002394-11
Belonging to Tokyo Electron Ltd
Installation method: Plug in or stacked connection to the main control board or subsystem module
2、 Main functions
Function Expansion
Provide additional functions for the main control board or I/O control system, such as additional input/output channels, analog signal processing, temperature/pressure interfaces, optocoupler isolation, etc.
Expansion of Communication Interface
Provide additional serial, parallel, CAN, RS-422/485, or fiber optic communication interfaces to meet the data exchange needs between complex devices or modules.
Signal processing and adaptation
Implement signal conditioning, isolation, amplification, filtering and other operations to ensure the stability and effectiveness of the signals processed by the motherboard.
Customized use
In certain TEL equipment specific process segments, this add-on board may serve as a "custom circuit" platform, connecting dedicated sensors or actuators.
3、 Typical application scenarios
Equipment control system upgrade or functional expansion
Add more peripheral connectivity or processing logic without replacing the original motherboard.
Scenarios with complex I/O requirements
When multiple sensor inputs, solenoid valve outputs, etc. cannot be completed on a single main control board, supplementation can be achieved by adding boards.
Modular assembly and maintenance of equipment
Easy to disassemble, replace, and upgrade functions, enhancing the maintainability and expandability of the system.
