TEL Tokyo Electron 3208-000048-12印刷电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
产品型号： TEL Tokyo Electron 3208-000048-12
产品类型： 印刷电路板（PCB，Printed Circuit Board）
功能定位： 半导体制造设备内部关键电子控制及信号处理模块
一、产品功能概述：
3208-000048-12 是 Tokyo Electron（TEL）专门为其半导体制造设备设计的一款高性能印刷电路板。该PCB负责关键控制信号的传输和处理，支持设备内多个子系统之间的数据交换和电气接口功能，是设备电子控制系统的重要组成部分。
二、主要应用领域：
半导体工艺设备的控制系统
用于刻蚀、沉积、扩散和清洗设备中，承担工艺控制信号的传输和处理。
设备内部信号连接平台
实现主控单元与I/O模块、传感器、执行器之间的电气连接。
工艺参数采集与调节电路
支持温度、压力、流量等传感器信号的采集与处理，协助实现工艺参数的实时监控。
模块化设备系统集成
作为设备模块化设计中的一部分，实现多功能电路的集成与协同工作。
设备维护与诊断辅助
集成自诊断和保护电路，提升设备运行可靠性与维护效率。
英文资料：
Product model: TEL Tokyo Electron 3208-0000048-12
Product type: Printed Circuit Board (PCB)
Functional positioning: Key electronic control and signal processing modules inside semiconductor manufacturing equipment
1、 Product Function Overview:
3208-000048-12 is a high-performance printed circuit board designed by Tokyo Electron (TEL) specifically for its semiconductor manufacturing equipment. This PCB is responsible for the transmission and processing of key control signals, supporting data exchange and electrical interface functions between multiple subsystems within the device, and is an important component of the electronic control system of the device.
2、 Main application areas:
Control system for semiconductor process equipment
Used in etching, deposition, diffusion, and cleaning equipment to transmit and process process process control signals.
Internal signal connection platform of the device
Implement electrical connections between the main control unit and I/O modules, sensors, and actuators.
Process parameter acquisition and adjustment circuit
Support the collection and processing of sensor signals such as temperature, pressure, and flow rate to assist in real-time monitoring of process parameters.
Modular equipment system integration
As part of the modular design of devices, achieve the integration and collaborative work of multifunctional circuits.
Equipment maintenance and diagnostic assistance
Integrating self diagnostic and protective circuits to enhance equipment reliability and maintenance efficiency.

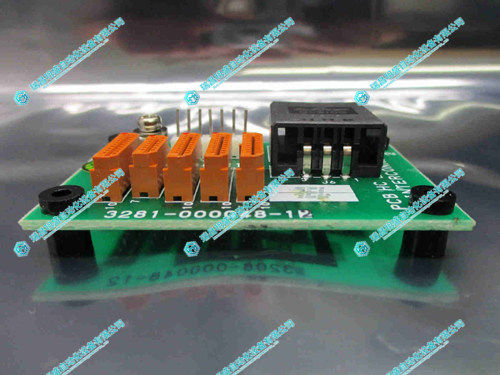

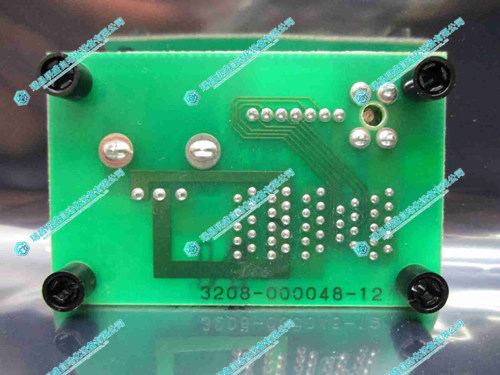

2.产 品 展 示
