TEL Tokyo Electron 3281-000227-11处理器模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
产品型号： TEL Tokyo Electron 3281-000227-11
产品类型： 处理器模块（Processor Module）
功能定位： 半导体设备中的核心控制处理单元，用于数据计算、信号调度与设备流程控制
一、产品功能概述：
3281-000227-11 是一款用于 Tokyo Electron 高端半导体设备中的嵌入式处理器模块，作为系统的“中央大脑”，主要负责设备运行逻辑的执行、工艺流程控制、子系统之间的协调管理以及现场信号的实时处理。通常与输入/输出模块、通信接口板、电源管理模块等配合使用。
二、主要应用领域：
设备主控系统核心控制单元
应用于 TEL 的刻蚀、沉积、清洗、扩散等各类设备中，执行控制程序，对传感器、执行器等各个子模块进行协调调度。
嵌入式控制逻辑处理
内置工艺控制逻辑、设备动作时序、温度/压力/气体等关键参数的计算与判断。
工艺参数控制与反馈运算
实时采集工艺参数（如腔体温度、真空压力、气体流速），进行处理后输出控制信号，确保制程精度与设备稳定性。
设备通信管理
通过与其他模块（如I/O接口板、通信适配器、上位机）通信，实现系统级同步与远程控制指令的响应。
人机界面（HMI）联动控制
支持与触控面板、图形化控制终端等人机界面设备协同运行，提供操作数据、告警信息与工艺状态显示。
远程维护与设备诊断支持
具备系统运行日志记录、错误码处理、软硬件自检功能，便于设备维护人员进行诊断与故障分析。
英文资料：
Product model: TEL Tokyo Electron 3281-000227-11
Product type: Processor Module
Functional positioning: The core control processing unit in semiconductor equipment, used for data calculation, signal scheduling, and equipment process control
1、 Product Function Overview:
3281-000227-11 is an embedded processor module used in high-end semiconductor equipment of Tokyo Electron. As the "central brain" of the system, it is mainly responsible for the execution of equipment operation logic, process flow control, coordination and management between subsystems, and real-time processing of on-site signals. Usually used in conjunction with input/output modules, communication interface boards, power management modules, etc.
2、 Main application areas:
Core control unit of equipment main control system
Applied to various equipment such as etching, deposition, cleaning, and diffusion in TEL, execute control programs to coordinate and schedule various sub modules such as sensors and actuators.
Embedded control logic processing
Calculation and judgment of key parameters such as built-in process control logic, equipment action timing, temperature/pressure/gas, etc.
Process parameter control and feedback calculation
Real time collection of process parameters (such as chamber temperature, vacuum pressure, gas flow rate), processing and outputting control signals to ensure process accuracy and equipment stability.
Equipment communication management
By communicating with other modules such as I/O interface boards, communication adapters, and upper computers, system level synchronization and remote control command response can be achieved.
Human Machine Interface (HMI) linkage control
Support collaborative operation with human-machine interface devices such as touch panels and graphical control terminals, providing operational data, alarm information, and process status display.
Remote maintenance and equipment diagnostic support
Equipped with system operation log recording, error code processing, and software and hardware self checking functions, it facilitates equipment maintenance personnel to diagnose and analyze faults.

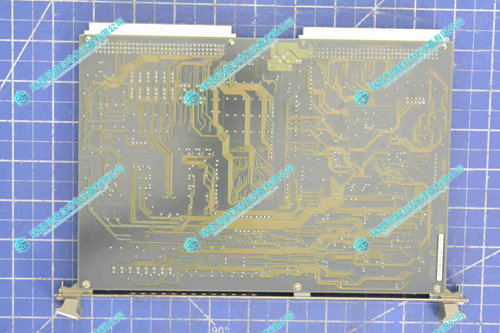

2.产 品 展 示
