TEL Tokyo Electron 3D81-000031-V3接口板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
产品型号：3D81-000031-V3
产品名称：接口板（Interface Board）
制造商：Tokyo Electron Ltd.（TEL）
部件类别：信号接口与通信模块
一、产品概述：
3D81-000031-V3 接口板是TEL半导体设备中的关键通信与信号转换模块。该接口板负责设备内部各子系统之间的信号传递、转换及协议适配，确保设备模块间高效、稳定的数据交换和控制信号传输。
二、主要功能：
| 功能模块 | 说明 |
|---|---|
| 多信号接口 | 支持数字和模拟信号的输入输出接口 |
| 通信协议支持 | 支持常用工业通信协议，如RS-232、RS-485、CAN等 |
| 信号隔离 | 采用电气隔离技术，提高抗干扰性能 |
| 状态监测 | 实时监控接口状态，支持故障报警 |
| 连接管理 | 方便模块间连接及维护，支持热插拔功能（如适用） |
三、技术参数（基于类似接口板规格推测）：
| 参数 | 说明 |
|---|---|
| 接口类型 | 多针连接器、端子排、D-sub等标准接口 |
| 信号类型 | TTL/CMOS数字信号，模拟信号 |
| 电源需求 | 5V或24V DC，视具体设计而定 |
| 通信速率 | 支持最高数百kbps至Mbps级别的通信速度 |
| 结构形式 | 插卡式或机架式安装设计 |
英文资料：
Product model: 3D81-000031-V3
Product Name: Interface Board
Manufacturer: Tokyo Electron Ltd. (TEL)
Component Category: Signal Interface and Communication Module
1、 Product Overview:
The 3D81-000031-V3 interface board is a key communication and signal conversion module in TEL semiconductor equipment. This interface board is responsible for signal transmission, conversion, and protocol adaptation between various subsystems within the device, ensuring efficient and stable data exchange and control signal transmission between device modules.
2、 Main functions:
Function module description
Multi signal interface supports input and output interfaces for both digital and analog signals
Communication protocol supports commonly used industrial communication protocols such as RS-232, RS-485, CAN, etc
Signal isolation adopts electrical isolation technology to improve anti-interference performance
Real time monitoring of interface status through status monitoring, supporting fault alarms
Connection management facilitates the connection and maintenance between modules, and supports hot swappable functionality (if applicable)
3、 Technical parameters (based on similar interface board specifications):
Parameter Description
Interface types include multi pin connectors, terminal blocks, D-sub, and other standard interfaces
Signal type TTL/CMOS digital signal, analog signal
The power requirement is 5V or 24V DC, depending on the specific design
Communication speed supports communication speeds ranging from hundreds of kbps to Mbps
Structural form card insertion or rack mounted installation design

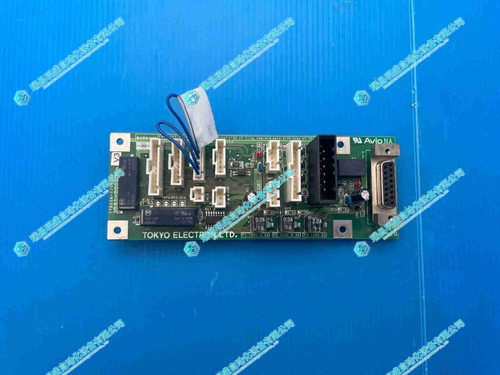

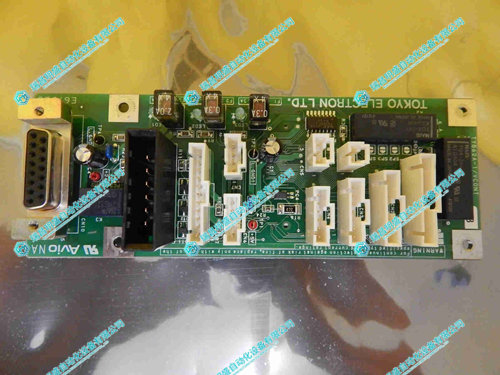

2.产 品 展 示
