TEL Tokyo Electron 2L81-050085-51模拟输入电子模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
产品型号：2L81-050085-51
产品名称：模拟输入电子模块（Analog Input Electronic Module）
制造商：Tokyo Electron Ltd.（TEL）
部件类别：信号采集模块 / 模拟输入模块
一、产品概述：
2L81-050085-51 是 Tokyo Electron 设备中用于采集和处理模拟信号的电子模块。它的主要功能是将来自各种传感器（如温度、压力、流量、位置等）的模拟信号进行准确采样、转换和传输，供设备控制系统进行后续处理与判断。
此模块是设备实现精细工艺控制和过程监测的关键组成部分。
二、主要功能：
| 功能模块 | 说明 |
|---|---|
| 模拟信号采集 | 支持多通道模拟输入，采集电压、电流等模拟量信号 |
| 信号转换 | 内置高精度模数转换器（ADC），将模拟信号转换为数字信号 |
| 信号调理 | 包含滤波、放大、隔离等电路，确保信号稳定可靠 |
| 采样速率控制 | 可配置采样频率，满足不同工艺控制需求 |
| 通信接口 | 将数字信号通过总线或接口传输给主控系统 |
三、技术参数（基于TEL模拟输入模块通用规格推测）：
| 项目 | 参数或说明 |
|---|---|
| 输入类型 | 电压输入（典型0-10V）、电流输入（4-20mA） |
| 输入通道数 | 多通道，常见8~16路 |
| 分辨率 | 12位或16位ADC |
| 采样速率 | 可达数kHz，支持高速采样 |
| 信号隔离 | 光耦或磁隔离保护输入端口 |
| 输入阻抗 | 高阻抗，适合传感器信号接入 |
| 电源需求 | 5V、12V或24V DC，视具体设备需求 |
| 连接方式 | 插拔式连接器或背板接口 |
英文资料：
Product model: 2L81-050085-51
Product Name: Analog Input Electronic Module
Manufacturer: Tokyo Electron Ltd. (TEL)
Component category: Signal acquisition module/Analog input module
1、 Product Overview:
2L81-050085-51 is an electronic module used in Tokyo Electron equipment for collecting and processing analog signals. Its main function is to accurately sample, convert, and transmit analog signals from various sensors (such as temperature, pressure, flow rate, position, etc.) for subsequent processing and judgment by the equipment control system.
This module is a key component for implementing fine process control and process monitoring in equipment.
2、 Main functions:
Function module description
Analog signal acquisition supports multi-channel analog input, collecting analog signals such as voltage and current
The signal conversion is equipped with a high-precision analog-to-digital converter (ADC), which converts analog signals into digital signals
Signal conditioning includes circuits such as filtering, amplification, and isolation to ensure stable and reliable signals
Sampling rate control can configure sampling frequency to meet different process control requirements
The communication interface transmits digital signals to the main control system through a bus or interface
3、 Technical parameters (based on the general specifications of TEL analog input module):
Project parameters or description
Input type: Voltage input (typical 0-10V), current input (4-20mA)
Multiple input channels, commonly ranging from 8 to 16 channels
Resolution 12 bit or 16 bit ADC
Sampling rate can reach several kHz, supporting high-speed sampling
Signal isolation optocoupler or magnetic isolation protection input port
High input impedance, suitable for sensor signal access
The power requirement is 5V, 12V, or 24V DC, depending on the specific equipment requirements
Connection method: plug-in connector or backplane interface

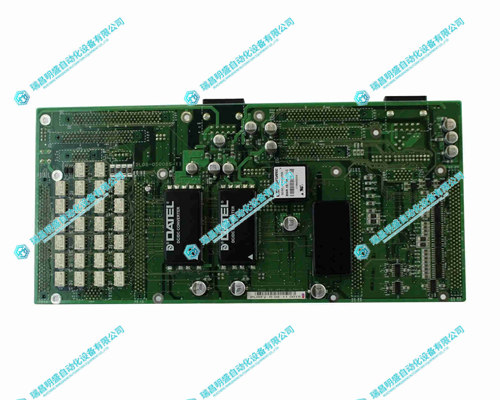

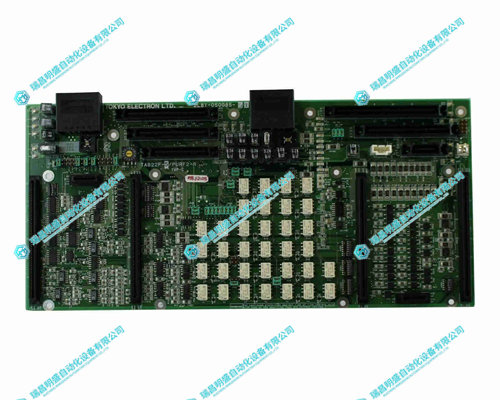

2.产 品 展 示
