TEL Tokyo Electron 3D81-000030-11电子连接板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
TEL Tokyo Electron 3D81-000030-11 电子连接板简介
产品定义：
3D81-000030-11 是 Tokyo Electron（TEL）设备中的电子连接板，主要作用是作为多个电路模块之间的信号与电源连接枢纽，实现设备内部模块间的高效通信和电力传输。主要功能：
集中连接不同电路板和子模块的信号线与电源线
实现模块间数据传输和电气隔离
提供稳定的接口连接，确保系统整体运行可靠性
适用设备类型：
广泛应用于 TEL 各类半导体制造设备，包括 CVD、Etch、ALD、清洗系统、自动搬运设备等。连接接口类型：
多针连接器
排针/排母接口
端子排连接等，支持高速信号和电源线连接
产品特点：
高密度接口设计，节省设备空间
优良的电气性能，低阻抗和低噪声传输
结构坚固，防震动设计适应洁净室环境
模块化设计，方便快速更换和维护
安装位置：
一般安装在设备控制柜或机箱内部，作为多个功能模块之间的桥梁。典型应用场景：
控制器与传感器接口连接
信号处理板与执行器驱动模块间的通信
电源分配模块与负载模块的电源连接
运动控制系统中多轴驱动信号的汇聚
英文资料：
Introduction to TEL Tokyo Electron 3D81-000030-11 Electronic Connection Board
Product definition:
3D81-000030-11 is an electronic connection board in Tokyo Electron (TEL) equipment, mainly used as a signal and power connection hub between multiple circuit modules, to achieve efficient communication and power transmission between internal modules of the equipment.
Main functions:
Centralize the connection of signal lines and power lines for different circuit boards and submodules
Realize data transmission and electrical isolation between modules
Provide stable interface connections to ensure the overall reliability of the system operation
Applicable device types:
Widely used in various semiconductor manufacturing equipment of TEL, including CVD, Etch, ALD, cleaning systems, automatic handling equipment, etc.
Connection interface type:
Multi pin connector
Pin/Mother connector
Terminal block connection, etc., supporting high-speed signal and power line connection
Product features:
High density interface design, saving equipment space
Excellent electrical performance, low impedance and low-noise transmission
Sturdy structure, anti vibration design suitable for clean room environment
Modular design for easy and quick replacement and maintenance
Installation location:
Generally installed inside the equipment control cabinet or chassis as a bridge between multiple functional modules.
Typical application scenarios:
Controller and sensor interface connection
Communication between signal processing board and actuator driver module
Power connection between power distribution module and load module
Convergence of Multi axis Drive Signals in Motion Control Systems

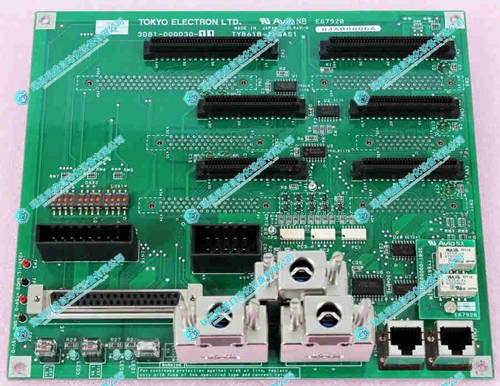

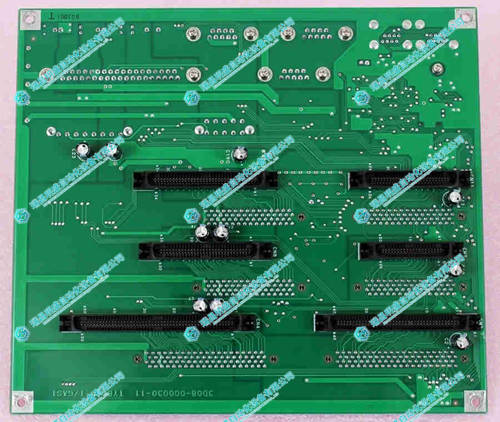

2.产 品 展 示
