KLA Tencor 710-652697-00传感器模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
KLA Tencor 710-652697-00 传感器模块 是KLA Tencor半导体检测设备中的重要电子单元，主要用于采集和处理来自各种传感器的信号，为设备的自动控制和检测功能提供准确的数据支持。
一、产品基本信息
型号：710-652697-00
类型：传感器模块（Sensor Module）
所属系列：KLA Tencor 710系列
功能定位：采集、放大、调理并传输传感器信号，作为控制系统的重要输入单元
二、主要功能
信号采集
接收多种传感器（如光学传感器、激光传感器、位置编码器等）的模拟或数字信号。
对信号进行放大、滤波和调理，保证信号质量。
信号转换
将采集的信号转换为标准格式，适配后续控制和处理单元。
支持多通道输入，实现多点数据采集。
数据传输
通过标准接口将信号传送到主控制板或数据处理模块。
支持实时数据更新，满足高速检测要求。
状态监测与保护
监控模块和传感器工作状态，防止异常信号影响设备运行。
内置电气保护机制，防止过流、过压损坏。
英文资料：
The KLA Tencor 710-652697-00 sensor module is an important electronic unit in the KLA Tencor semiconductor detection equipment, mainly used to collect and process signals from various sensors, providing accurate data support for the automatic control and detection functions of the equipment.
1、 Basic Product Information
Model: 710-652697-00
Type: Sensor Module
Series: KLA Tencor 710 Series
Functional positioning: Collecting, amplifying, conditioning, and transmitting sensor signals as an important input unit for control systems
2、 Main functions
signal acquisition
Receive analog or digital signals from various sensors such as optical sensors, laser sensors, position encoders, etc.
Amplify, filter, and condition the signal to ensure signal quality.
Signal Conversion
Convert the collected signals into standard format and adapt them to subsequent control and processing units.
Support multi-channel input and achieve multi-point data collection.
data transmission
Transmit signals to the main control board or data processing module through standard interfaces.
Support real-time data updates to meet high-speed detection requirements.
Status monitoring and protection
Monitor the working status of the monitoring module and sensors to prevent abnormal signals from affecting equipment operation.
Built in electrical protection mechanism to prevent damage caused by overcurrent and overvoltage.

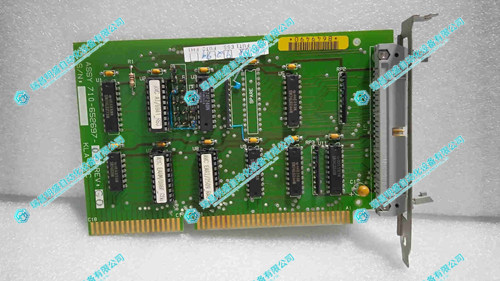

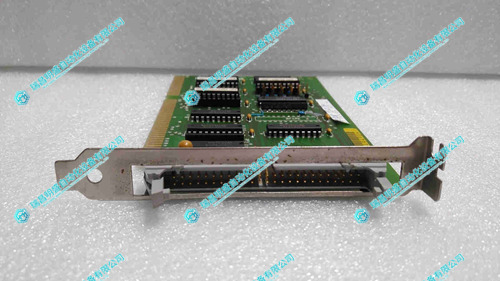

2.产 品 展 示
