Vibro-Meter SIM-275A 200-582-500-013 电源模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
一、产品概述
SIM-275A 是 Vibro-Meter（现为 Meggitt）为其 VM600 系列状态监测和保护系统提供的高可靠性 电源模块，订货号为 200-582-500-013。它负责为整个机架中的监测模块（如 MPC4、IOC4T、RLC16、CPUM 等）提供稳定的工作电源，是 VM600 系统运行的基础保障部件之一。
该模块具备输入冗余、过载保护、状态指示等功能，适用于电厂、压缩站、炼油厂等关键设备振动监测和保护场景。
二、产品型号与标识
| 项目 | 说明 |
|---|---|
| 产品名称 | 电源模块 |
| 型号 | SIM-275A |
| 订货号 | 200-582-500-013 |
| 所属平台 | Vibro-Meter VM600 系列 |
| 制造商 | Vibro-Meter / Meggitt SA（瑞士） |
三、技术参数
| 项目 | 参数说明 |
|---|---|
| 输入电压范围 | 18 ～ 36 VDC（宽电压输入） |
| 最大输入电流 | 6 A（根据负载而变化） |
| 输出电压 | 24 VDC（稳压输出） |
| 额定输出功率 | 约 150 W（典型值，取决于负载） |
| 输出电流能力 | 最大 6 A，适配机架总负载 |
| 状态指示 | LED 指示运行、故障、过载状态 |
| 电源冗余支持 | 支持双 SIM 电源冗余工作 |
| 保护功能 | 过流、过压、短路、过温保护 |
| 冷却方式 | 自然对流冷却（无风扇） |
| 安装方式 | 插入式，安装在 VM600 机架电源槽位 |
| 热插拔支持 | 是（Hot Swap） |
英文资料：
1、 Product Overview
SIM-275A is a high reliability power module provided by Vibro Meter (now Meggitt) for its VM600 series status monitoring and protection system, with order number 200-582-500-013. It is responsible for providing stable working power for the monitoring modules (such as MPC4, IOC4T, RLC16, CPUM, etc.) in the entire rack, and is one of the basic guarantee components for the operation of the VM600 system.
This module has functions such as input redundancy, overload protection, and status indication, and is suitable for vibration monitoring and protection scenarios of key equipment such as power plants, compression stations, and refineries.
2、 Product Model and Identification
Project Description
Product Name: Power Module
Model SIM-275A
Order number 200-582-500-013
Belonging to the Vibro Meter VM600 series platform
Manufacturer Vibro Meter/Meggitt SA (Switzerland)
3、 Technical parameters
Project parameter description
Input voltage range 18-36 VDC (wide voltage input)
Maximum input current 6 A (varies according to load)
Output voltage 24 VDC (regulated output)
Rated output power of approximately 150 W (typical value, depending on load)
Maximum output current capability of 6 A, compatible with the total load of the rack
Status indicator LED indicates running, fault, overload status
Power redundancy support supports dual SIM power redundancy operation
Protection functions include overcurrent, overvoltage, short circuit, and over temperature protection
Cooling method: natural convection cooling (fanless)
Installation method: plug-in, installed in the power slot of VM600 rack
Hot swappable support is (Hot Swap)

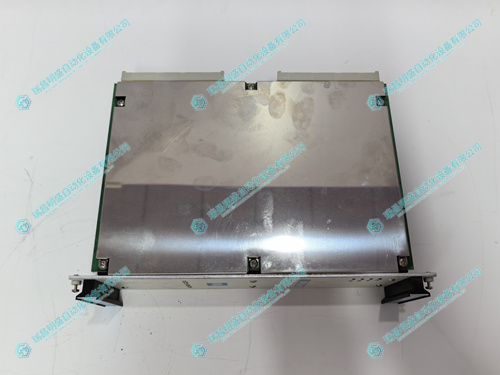

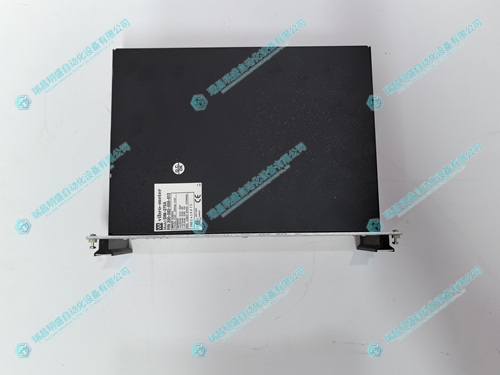

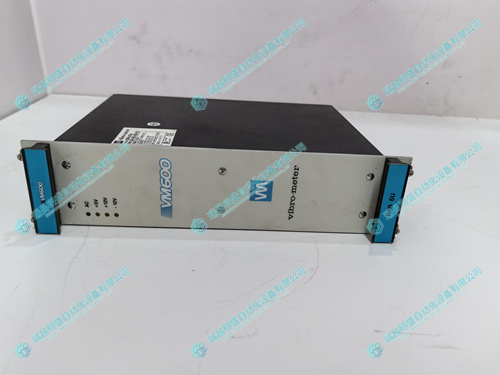

2.产 品 展 示
