KLA Tencor 710-404420-00输入输出模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
KLA Tencor 710-404420-00 输入输出模块（I/O Module）
产品概述
KLA Tencor 710-404420-00 是一款专为半导体检测与制造设备设计的高性能 输入/输出模块。它作为控制系统和执行机构之间的信号桥梁，负责多种数字与模拟信号的采集、传输与反馈，确保设备在高精度环境中实现精确控制与状态监控。
功能特性
多通道输入输出支持
同时处理多个通道的数字输入、输出和模拟信号。
支持TTL、电流环、光耦等信号类型。
高响应速度
实时处理来自传感器、执行器和主控制器的高速信号。
适用于对反应时间要求极高的制造过程控制。
信号隔离与抗干扰设计
模块集成电气隔离技术，有效防止系统间信号干扰。
具备过压保护和电流限制功能，提升稳定性。
模块化与可扩展性强
易于在设备系统中更换或升级。
可通过扩展槽或背板接口连接更多控制模块。
技术参数（参考）
输入类型：干接点输入、TTL电平、24V数字输入等
输出类型：继电器输出、晶体管输出、24V数字输出等
输入/输出通道数：通常为8-32通道（依据配置）
响应时间：< 1ms
通信方式：背板总线或局部串行通信
工作温度：0°C ~ 50°C
电源要求：5V 或 24V DC（依据版本）
英文资料：
KLA Tencor 710-404420-00 Input/Output Module
product overview
KLA Tencor 710-404420-00 is a high-performance input/output module designed specifically for semiconductor testing and manufacturing equipment. It serves as a signal bridge between the control system and the actuator, responsible for the acquisition, transmission, and feedback of various digital and analog signals, ensuring precise control and status monitoring of equipment in high-precision environments.
function characteristics
Multi channel input/output support
Simultaneously processing digital inputs, outputs, and analog signals from multiple channels.
Supports signal types such as TTL, current loop, optocoupler, etc.
High response speed
Real time processing of high-speed signals from sensors, actuators, and main controllers.
Suitable for manufacturing process control that requires extremely high reaction time.
Signal isolation and anti-interference design
Module integrated electrical isolation technology effectively prevents signal interference between systems.
Equipped with overvoltage protection and current limiting functions to enhance stability.
Strong modularity and scalability
Easy to replace or upgrade in the device system.
More control modules can be connected through expansion slots or backplane interfaces.
Technical parameters (reference)
Input types: dry contact input, TTL level, 24V digital input, etc
Output types: relay output, transistor output, 24V digital output, etc
Number of input/output channels: usually 8-32 channels (depending on configuration)
Response time:<1ms
Communication method: Backplane bus or local serial communication
Working temperature: 0 ° C~50 ° C
Power requirement: 5V or 24V DC (depending on version)

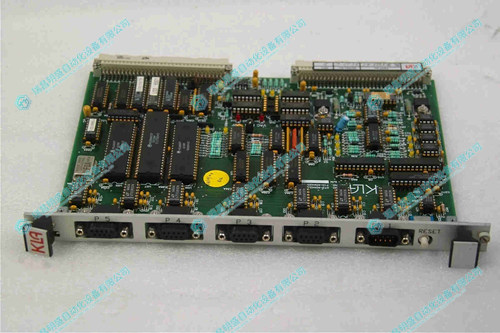

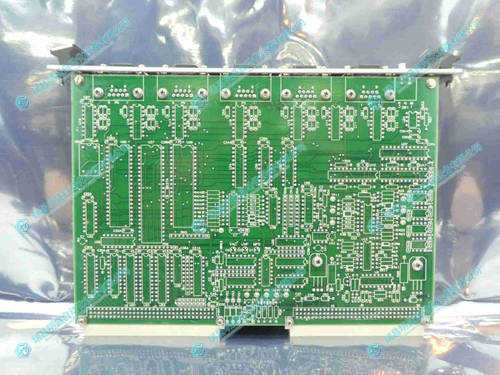

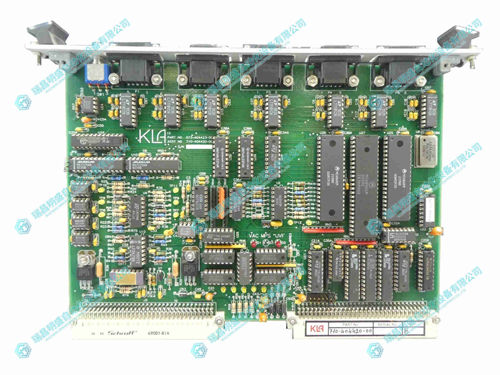

2.产 品 展 示
