VIBRO-METER 200-566-000-113 通信板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
一、基本信息
产品型号：200-566-000-113
产品名称：通信板（Communication Interface Board）
制造商：VIBRO-METER（现为 Meggitt 旗下品牌）
设备类别：状态监测系统接口模块
典型应用：工业旋转机械状态监测系统中的数据通信中继或采集接口模块
二、功能概述
VIBRO-METER 200-566-000-113 是一款专为机械振动监测系统设计的通信接口板，主要作为监测系统与上层控制系统（如 DCS、PLC、SCADA）之间的信号传输桥梁。它能够将来自传感器模块（如速度、加速度、位移等）或前端采集单元的模拟/数字信号，转换为标准通信协议进行传输。
三、技术特点
| 项目 | 参数说明 |
|---|---|
| 通信功能 | 提供与上位系统（如分析主机或SCADA系统）之间的数据通信功能 |
| 接口类型 | 可能支持 RS-232 / RS-422 / RS-485 / Modbus / CAN（根据具体配置） |
| 安装方式 | 通常安装于 19 英寸机架或专用机箱内部 |
| 适配系统 | Vibro-Meter VM600、VM600Mk2、COMPASS 等状态监测平台 |
| 兼容模块 | 可配合 MPC4、IOC4T、CPUM Mk2 等核心模块联动 |
| 工作电源 | 通常为 24V DC（需结合系统供电设计） |
| 隔离保护 | 通信接口带电气隔离设计，防止系统内干扰 |
| 使用环境 | 工业级耐温防干扰，适用于机组控制室、涡轮发电设备监测间等复杂电磁环境 |
英文资料：
1、 Basic Information
Product model: 200-566-000-113
Product Name: Communication Interface Board
Manufacturer: VIBRO-METER (now a brand under Meggitt)
Equipment category: Interface module for status monitoring system
Typical application: Data communication relay or acquisition interface module in industrial rotating machinery status monitoring system
2、 Function Overview
VIBRO-METER 200-566-000-113 is a communication interface board designed specifically for mechanical vibration monitoring systems, primarily serving as a signal transmission bridge between the monitoring system and upper level control systems such as DCS, PLC, SCADA. It can convert analog/digital signals from sensor modules (such as speed, acceleration, displacement, etc.) or front-end acquisition units into standard communication protocols for transmission.
3、 Technical features
Project parameter description
The communication function provides data communication between the upper system (such as the analysis host or SCADA system)
Interface types may support RS-232/RS-422/RS-485/Modbus/CAN (depending on specific configuration)
The installation method is usually installed inside a 19 inch rack or dedicated chassis
Adaptation system Vibro Meter VM600, VM600Mk2, COMPASS and other status monitoring platforms
Compatible modules can be linked with core modules such as MPC4, IOC4T, CPUM Mk2, etc
The working power supply is usually 24V DC (depending on the system power supply design)
Isolation protection communication interface with electrical isolation design to prevent interference within the system
Industrial grade temperature resistance and anti-interference are suitable for complex electromagnetic environments such as unit control rooms and turbine power generation equipment monitoring rooms

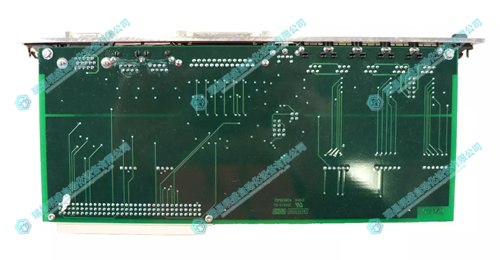

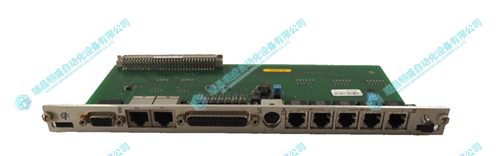

2.产 品 展 示
