GE 193X537ADG01直流驱动主控制板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
GE 193X537ADG01 是通用电气公司（General Electric）在其 193X 系列直流驱动控制系统中推出的主控制板（Main Control Board）。该板卡在 GE 直流驱动系统中扮演着核心角色，负责整个驱动系统的主控制逻辑，包括电机的速度控制、励磁调节、保护机制等功能。
技术规格与功能特点
产品类型：直流驱动主控制板
控制方式：模拟信号调节与数字控制逻辑相结合
输入信号：包括电压、电流、速度反馈、编码器信号等
输出信号：控制功率模块的驱动信号、反馈信号、报警信号等
电源要求：典型工作电压为 ±15V DC（通过系统电源提供）
信号输入与输出：支持模拟量输入（如速度、电流反馈）、数字信号输入（如开关触点、启动命令）
状态显示：板上可能包含 LED 状态指示灯，用于显示系统运行状态或故障诊断
调节功能：具有增益调节、偏移调节、响应时间调节等板载功能，用于调整控制精度和性能
元件配置：包含高精度电阻、电位器、晶体管、运算放大器等用于实现精确控制的核心元件
工作温度：典型工作温度范围为 -20°C 至 +70°C
应用领域
GE 直流驱动系统：如 GE Mark I、II、IV 等系列电机控制系统
电机控制与调速系统：主要用于直流电机的速度调节和励磁控制
工业自动化：在冶金、电力、石油化工、造纸等行业中广泛应用
替换与升级：用于老旧控制系统的维护和升级，替换旧款控制板以提高系统可靠性
动力驱动系统：适用于大型机械设备，如风机、水泵、传送带等自动化驱动控制
英文资料：
GE 193X537ADG01 is the Main Control Board introduced by General Electric in its 193X series DC drive control system. This board plays a core role in the GE DC drive system, responsible for the main control logic of the entire drive system, including motor speed control, excitation regulation, protection mechanism, and other functions.
Technical specifications and functional features
Product type: DC drive main control board
Control method: Combining analog signal regulation with digital control logic
Input signals: including voltage, current, speed feedback, encoder signals, etc
Output signals: control the driving signal, feedback signal, alarm signal, etc. of the power module
Power requirement: The typical operating voltage is ± 15V DC (provided by the system power supply)
Signal input and output: Supports analog input (such as speed and current feedback) and digital signal input (such as switch contacts and start commands)
Status display: The board may include LED status indicators to display the system's operating status or fault diagnosis
Adjustment function: It has onboard functions such as gain adjustment, offset adjustment, and response time adjustment, used to adjust control accuracy and performance
Component configuration: including high-precision resistors, potentiometers, transistors, operational amplifiers, and other core components used to achieve precise control
Working temperature: The typical working temperature range is -20 ° C to+70 ° C
application area
GE DC drive system: such as GE Mark I, II, IV series motor control systems
Motor control and speed regulation system: mainly used for speed regulation and excitation control of DC motors
Industrial automation: widely used in industries such as metallurgy, power, petrochemicals, and papermaking
Replacement and Upgrade: Used for maintenance and upgrade of old control systems, replacing old control boards to improve system reliability
Power Drive System: Suitable for automated drive control of large mechanical equipment such as fans, water pumps, conveyors, etc

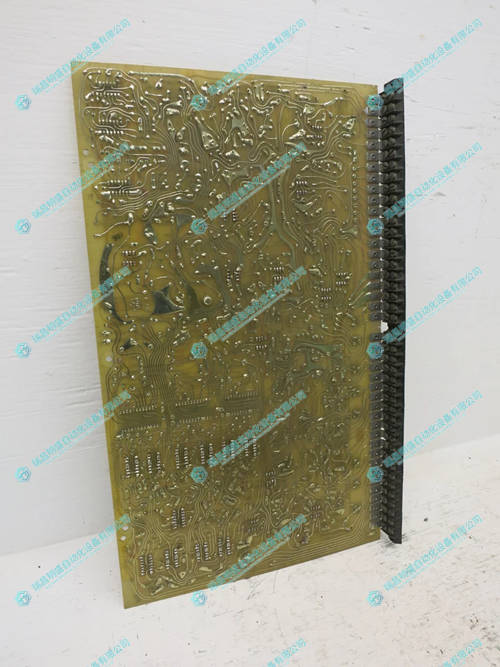

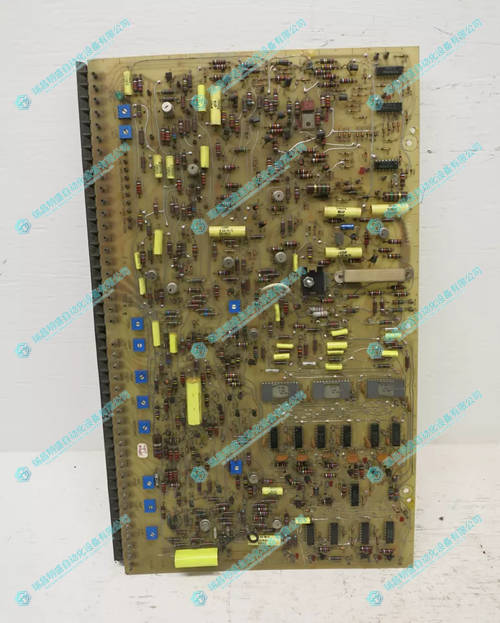

2.产 品 展 示
