GE 193X536AAG01过度板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
GE 193X536AAG01 是美国通用电气（General Electric）公司生产的 193X 系列自动化控制系统中的专用过渡板（Transition Board）。该模块通常作为主控制板与信号执行单元之间的中介接口板，用于完成信号的引出、转接、隔离、缓冲或物理位置过渡等功能，是整个工业驱动控制系统中不可或缺的连接部件。
技术参数与结构特点
产品类型：过渡板 / 接口转换板（Transition Board）
适配系统：GE 193X 系列自动化控制系统
结构形式：插卡式 PCB 模块，带有多路金手指端口与外接引脚接口
功能定位：
信号从控制板到外设的过渡与引出
执行模块信号汇总并反馈至主控模块
电气信号缓冲或光隔离
接口类型：一侧为标准金手指插槽接口，另一侧为螺丝端子或多芯插件连接
适用信号类型：模拟量信号、数字控制信号、电源传输线缆等
工作电压范围：根据系统供电等级（典型为 ±15V DC 或 24V 控制电源）
耐温范围：工业级，典型为 -20°C ~ +70°C
应用场合
GE DC/AC 电机驱动控制系统
大型自动化设备的信号转接与引线管理
工业现场环境中主控制板与远程 I/O 之间的连接
工控系统改造中旧款控制板的接口过渡应用
具备空间限制或多种信号线缆集成需求的设备
英文资料：
GE 193X536AAG01 is a specialized transition board in the 193X series automation control system produced by General Electric in the United States. This module usually serves as an intermediate interface board between the main control board and the signal execution unit, used to complete functions such as signal output, conversion, isolation, buffering, or physical position transition. It is an indispensable connecting component in the entire industrial drive control system.
Technical parameters and structural characteristics
Product type: Transition Board/Interface Conversion Board
Adaptation System: GE 193X Series Automation Control System
Structural form: Plug in PCB module with multiple gold finger ports and external pin interfaces
Functional positioning:
Transition and extraction of signals from control board to peripherals
Summarize module signals and provide feedback to the main control module
Electrical signal buffering or optical isolation
Interface type: One side is a standard gold finger slot interface, and the other side is a screw terminal or multi-core plug-in connection
Applicable signal types: analog signal, digital control signal, power transmission cable, etc
Working voltage range: Depending on the system power supply level (typically ± 15V DC or 24V control power supply)
Temperature resistance range: industrial grade, typically -20 ° C~+70 ° C
Application scenarios
GE DC/AC motor drive control system
Signal transfer and lead management of large-scale automation equipment
The connection between the main control board and remote I/O in industrial field environment
Interface Transition Application of Old Control Boards in Industrial Control System Renovation
Equipment with space limitations or multiple signal cable integration requirements

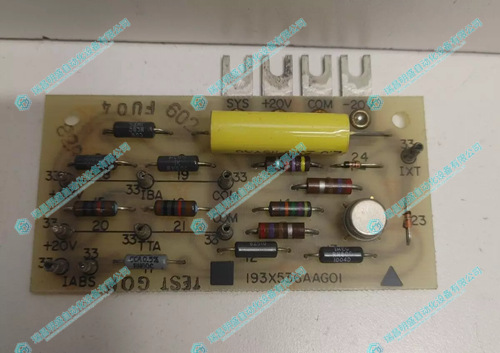

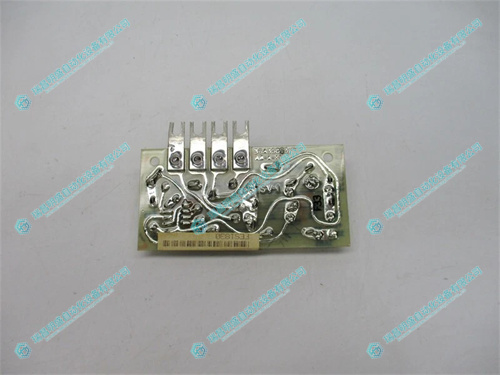

2.产 品 展 示
