GE 193X532ADG04现场控制板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
GE 193X532ADG04 现场控制板简介
GE 193X532ADG04 是美国通用电气公司（General Electric）推出的 193X 系列控制系统中的现场控制模块之一，主要用于早期 GE 工业驱动系统和过程自动化控制系统。该模块多用于调节与反馈控制回路中，适用于直流/交流电机控制、发电励磁、以及大型设备的自动运行控制。
技术规格与功能特点
控制类型：模拟信号处理控制板，具备一定逻辑控制能力
输入信号：电压输入、模拟反馈信号、数字控制信号等
输出信号：用于控制功率模块、执行单元、驱动板的模拟信号或逻辑控制量
安装方式：标准 GE 插卡式结构，插入主机架背板
电源要求：通常为 ±15V DC（通过系统统一供电）
板载元件：包含多个电位器、分立电路元件、运算放大器等
状态反馈：部分版本可能配有状态指示灯，用于运行状态判断或调试支持
可调参数：如增益（GAIN）、偏移（OFFSET）、响应时间等，通过电位器调节完成
应用领域
GE Mark 系列工业自动化系统（如 Mark I、II、IV 等）
直流电机励磁控制与调速系统
工业炉控、冶金连铸、轧制线驱动系统
发电厂励磁装置、变频控制回路
老旧工业设备维护与改造项目中的替换件需求
使用与维护要点
安装前必须断电，避免插拔操作时造成电弧或损坏接口。
防静电操作规范，接触板卡应佩戴静电环，避免静电击穿器件。
信号检查：使用万用表或示波器检查输入、输出端电压/波形是否正常。
定期维护：重点检查电解电容是否鼓胀、接插件有无氧化、焊点有无裂纹。
参数调节：若需调整控制效果，建议在原设备说明书指导下微调板载电位器。
英文资料：
Introduction to GE 193X532ADG04 Field Control Board
GE 193X532ADG04 is one of the on-site control modules in the 193X series control system launched by General Electric, mainly used in early GE industrial drive systems and process automation control systems. This module is commonly used in regulating and feedback control circuits, suitable for DC/AC motor control, power generation excitation, and automatic operation control of large equipment.
Technical specifications and functional features
Control type: Analog signal processing control board with certain logical control capability
Input signals: voltage input, analog feedback signal, digital control signal, etc
Output signal: an analog signal or logic control quantity used to control power modules, execution units, and drive boards
Installation method: Standard GE plug-in card structure, inserted into the motherboard backplane
Power requirement: Typically ± 15V DC (supplied uniformly through the system)
Onboard components: including multiple potentiometers, discrete circuit components, operational amplifiers, etc
Status feedback: Some versions may be equipped with status indicator lights for running status judgment or debugging support
Adjustable parameters: such as gain (GAIN), offset (OFFSET), response time, etc., can be adjusted through potentiometers
application area
GE Mark series industrial automation systems (such as Mark I, II, IV, etc.)
DC motor excitation control and speed regulation system
Industrial furnace control, metallurgical continuous casting, rolling line drive system
Excitation device and frequency conversion control circuit of power plant
Replacement parts requirements in maintenance and renovation projects for old industrial equipment
Key points for use and maintenance
Before installation, the power must be turned off to avoid arcing or damage to the interface during plugging and unplugging operations.
Anti static operation standards require wearing an electrostatic ring when in contact with the board to avoid electrostatic breakdown of the device.
Signal inspection: Use a multimeter or oscilloscope to check if the input and output voltage/waveform are normal.
Regular maintenance: Focus on checking whether the electrolytic capacitor is swollen, whether the connectors are oxidized, and whether there are cracks in the solder joints.
Parameter adjustment: If you need to adjust the control effect, it is recommended to fine tune the onboard potentiometer under the guidance of the original equipment manual.

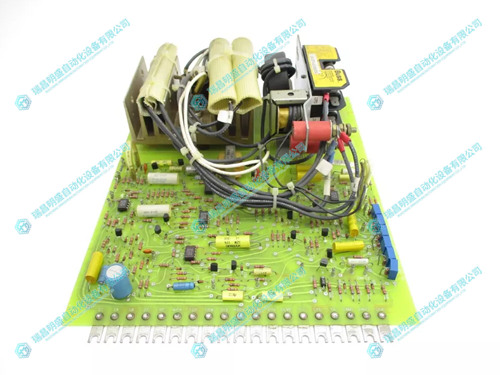

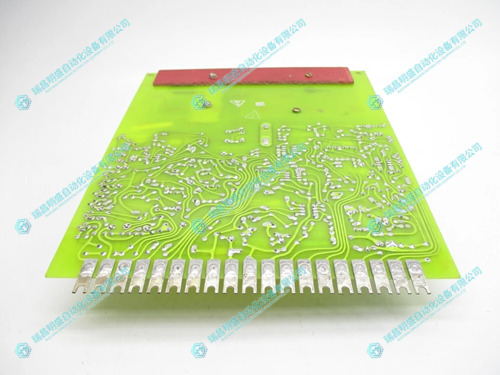

2.产 品 展 示
