HORNER ELECTRIC  HE693THM446分析温度模块 PDF资料

1.产 品 资 料 介 绍：

中文资料：

HORNER ELECTRIC HE693THM446 是一款专为 Horner Electric 系列自动化控制系统设计的 温度输入模块，广泛应用于需要温度监测和控制的工业自动化系统中。该模块通过采集来自不同类型温度传感器（如热电偶和RTD）的模拟信号，进行精确的温度测量，并将数据传输到控制系统，支持实时温度监控和分析。

主要特点：

1. 支持多种温度传感器类型

• HE693THM446 支持 热电偶（Thermocouple） 和 RTD（电阻温度探测器） 信号输入。

• 能够兼容多种常见类型的热电偶，如 K型、J型、T型、E型 等，以及 Pt100、Pt1000 等类型的RTD传感器。

2. 高精度与高分辨率

• 提供 高达16位的分辨率，能够精确捕获温度变化，确保数据的高精度采集。

• 支持温度范围广泛，可适应各种温度测量需求，确保系统在多变环境下的稳定运行。

3. 多通道输入

• 提供多个 温度输入通道，支持同时连接多个温度传感器。

• 可实现多点温度监控，适用于需要同时监测多个设备或区域温度的应用场景。

4. 精确的信号转换与处理

• HE693THM446模块通过内置的高精度 模数转换器（ADC）将温度传感器的模拟信号转换为数字信号，确保温度数据的准确性。

• 支持 温度补偿功能，能够根据外部环境因素，如热电偶的冷端补偿，提供更准确的温度测量结果。

5. 实时温度监测与报警功能

• 支持实时的温度数据采集与监控，可根据温度数据进行实时分析。

• 提供温度阈值设置和报警功能，当温度超出设定的安全范围时，系统会发出警报，以便及时采取措施。

6. 诊断与故障排除

• 该模块配备 状态指示灯，可显示模块的工作状态和故障信息，方便操作人员进行快速诊断。

• 能够检测 信号失真、断线 等问题，并及时报警，确保系统的可靠性和稳定性。

7. 易于配置和集成

• 配合 Horner Electric 的其他设备与软件（如 Proficy Machine Edition）进行配置和集成，能够迅速实现系统搭建。

• 通过 HMI（人机界面）或 SCADA 系统进行数据可视化与监控，提升操作效率。

8. 坚固耐用，适应工业环境

• HE693THM446 模块具有 工业级可靠性，能够承受高温、湿度、振动等恶劣的工作环境。

• 防护设计确保其在工业自动化中持续稳定运行，适合长时间使用。

英文资料：

HORNER ELECTRIC HE693THM446 is a temperature input module designed specifically for Horner Electric series automation control systems, widely used in industrial automation systems that require temperature monitoring and control. This module collects analog signals from different types of temperature sensors (such as thermocouples and RTDs) for accurate temperature measurement, and transmits the data to the control system, supporting real-time temperature monitoring and analysis.

Main features:

Supports multiple types of temperature sensors

HE693THM446 supports thermocouple and RTD signal input.

Compatible with various common types of thermocouples, such as K-type, J-type, T-type, E-type, as well as Pt100, Pt1000 and other types of RTD sensors.

High precision and high resolution

Providing a resolution of up to 16 bits, it can accurately capture temperature changes and ensure high-precision data acquisition.

Supports a wide temperature range and can adapt to various temperature measurement needs, ensuring stable operation of the system in changing environments.

Multi channel input

Provide multiple temperature input channels and support connecting multiple temperature sensors simultaneously.

It can achieve multi-point temperature monitoring, suitable for application scenarios that require monitoring the temperature of multiple devices or areas simultaneously.

Accurate signal conversion and processing

The HE693THM446 module converts the analog signal of the temperature sensor into a digital signal through a built-in high-precision analog-to-digital converter (ADC), ensuring the accuracy of temperature data.

Support temperature compensation function, which can provide more accurate temperature measurement results based on external environmental factors, such as cold end compensation of thermocouples.

Real time temperature monitoring and alarm function

Support real-time temperature data collection and monitoring, and can perform real-time analysis based on temperature data.

Provide temperature threshold setting and alarm function. When the temperature exceeds the set safe range, the system will issue an alarm to take timely measures.

Diagnosis and troubleshooting

This module is equipped with status indicator lights, which can display the working status and fault information of the module, making it convenient for operators to conduct quick diagnosis.

Capable of detecting signal distortion, disconnection, and other issues, and promptly alerting to ensure the reliability and stability of the system.

Easy to configure and integrate

By coordinating with Horner Electric's other devices and software (such as Proficy Machine Edition) for configuration and integration, system setup can be quickly achieved.

Visualize and monitor data through HMI (Human Machine Interface) or SCADA system to improve operational efficiency.

Durable and sturdy, suitable for industrial environments

The HE693THM446 module has industrial grade reliability and can withstand harsh working environments such as high temperature, humidity, and vibration.

The protective design ensures its continuous and stable operation in industrial automation, suitable for long-term use.

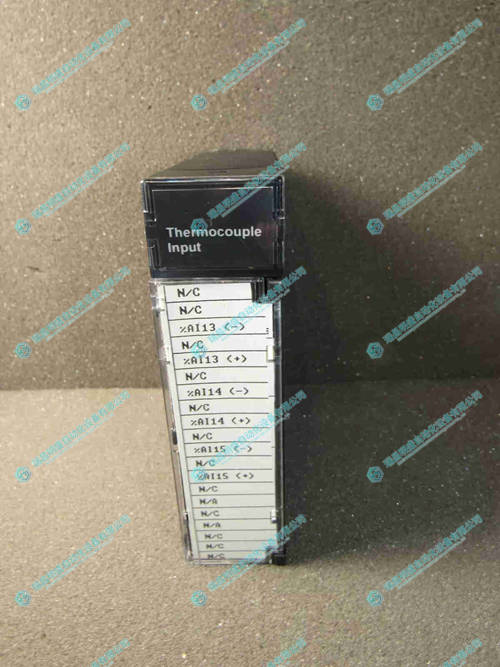

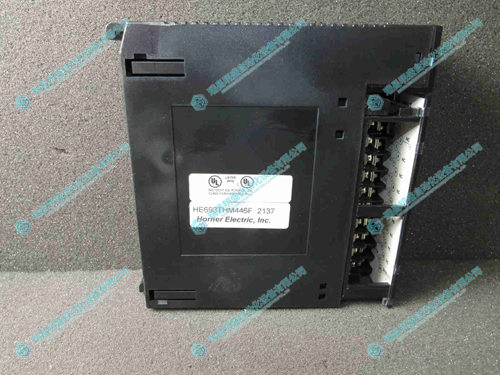

2.产      品      展      示
