HORNER ELECTRIC HE693THM884热电偶输入模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
HORNER ELECTRIC HE693THM884 是一款 热电偶输入模块，设计用于 GE Fanuc 90-30 PLC 系列，可用于接收和处理来自热电偶传感器的温度信号。该模块能够精确测量各种热电偶类型的温度，并通过 PLC 系统进行数据处理和控制，广泛应用于工业自动化系统中的温度监控与过程控制。
主要特点：
兼容性
专为 GE Fanuc 90-30 PLC 系列设计，直接插入 PLC 机架中，确保与其他自动化设备的良好兼容性。
适用于 Horner Electric 自动化系统，用于实时的温度监控与控制。
输入通道
提供 8 个独立的热电偶输入通道，能够同时处理多个热电偶信号。
支持的热电偶类型
K型（铬镍-铝镍热电偶）
J型（铁-铜合金热电偶）
T型（铜-铜镍热电偶）
E型（铜-合金热电偶）
R型（铂-铂/铑热电偶）
S型（铂-铂/铑热电偶）
B型（铂-铑热电偶）
N型（镍铬-镍铝热电偶）等
支持 多种热电偶类型，包括：
温度测量范围
K型：-270°C 至 +1372°C
J型：-210°C 至 +1200°C
T型：-200°C 至 +400°C
E型：-200°C 至 +900°C
R/S型：0°C 至 +1768°C
B型：+400°C 至 +1820°C
N型：-200°C 至 +1300°C
各种热电偶的测量范围根据不同的传感器类型有所不同。
冷端补偿
自动冷端补偿功能，确保外部环境温度变化不会影响热电偶测量的准确性，保证温度数据的可靠性。
精度与分辨率
精度：±0.25%
分辨率：0.1°C 或更高，具体取决于热电偶类型和测量范围。
通信与数据传输
提供 数字化输出，可以通过 PLC 程序 获取温度数据，并进行实时监控和控制。
LED 状态指示
模块配有 LED 指示灯，用于显示模块工作状态、信号输入和故障警告，方便操作和维护。
英文资料：
HORNER ELECTRIC HE693THM884 is a thermocouple input module designed for the GE Fanuc 90-30 PLC series, which can be used to receive and process temperature signals from thermocouple sensors. This module can accurately measure the temperature of various types of thermocouples and process and control the data through a PLC system. It is widely used in temperature monitoring and process control in industrial automation systems.
Main features:
compatibility
Specially designed for the GE Fanuc 90-30 PLC series, it can be directly inserted into the PLC rack to ensure good compatibility with other automation equipment.
Suitable for Horner Electric automation systems for real-time temperature monitoring and control.
Channel
Provide 8 independent thermocouple input channels, capable of processing multiple thermocouple signals simultaneously.
Supported thermocouple types
Supports multiple types of thermocouples, including:
K-type (chromium nickel aluminum nickel thermocouple)
J-type (iron copper alloy thermocouple)
T-type (copper copper nickel thermocouple)
E-type (copper alloy thermocouple)
R-type (platinum platinum/rhodium thermocouple)
S-type (platinum platinum/rhodium thermocouple)
B-type (platinum rhodium thermocouple)
N-type (nickel chromium nickel aluminum thermocouple), etc
Temperature measurement range
K-type:- 270 ° C to+1372 ° C
J-type:- 210 ° C to+1200 ° C
T-shaped:- 200 ° C to+400 ° C
Type E:- 200 ° C to+900 ° C
R/S type: 0 ° C to+1768 ° C
Type B:+ 400 ° C to+1820 ° C
N-type:- 200 ° C to+1300 ° C
The measurement range of various thermocouples varies depending on the type of sensor.
Cold Junction Compensation
The automatic cold end compensation function ensures that external temperature changes do not affect the accuracy of thermocouple measurements, ensuring the reliability of temperature data.
Accuracy and Resolution
Accuracy: ± 0.25%
Resolution: 0.1 ° C or higher, depending on the thermocouple type and measurement range.
Communication and Data Transmission
Provide digital output, temperature data can be obtained through PLC program, and real-time monitoring and control can be carried out.
LED status indication
The module is equipped with LED indicator lights, which are used to display the working status, signal input, and fault warnings of the module, facilitating operation and maintenance.

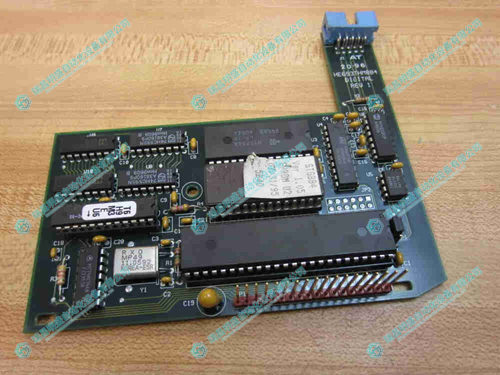

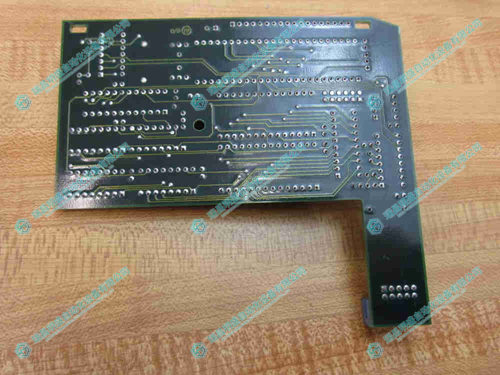

2.产 品 展 示
