ProSoft PLX82-EIP-PNC 通信模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
ProSoft PLX82-EIP-PNC 通信模块 是 ProSoft Technology 提供的一款高性能工业通信模块，专为自动化系统中的设备间通信而设计。此模块的主要功能是通过 EtherNet/IP 协议连接和集成不同品牌和类型的设备，尤其是在支持 Profinet 的设备与 EtherNet/IP 网络之间的通信。它可以与多种 PLC、控制器和工控设备进行通信，是工业自动化中常见的接口模块。
产品概述
功能描述
- 协议转换：ProSoft PLX82-EIP-PNC 模块可在 EtherNet/IP 和 Profinet 网络之间进行通信转换，允许 Profinet 设备和 EtherNet/IP 网络中的设备进行数据交换。
- 多种设备支持：支持多个设备类型的连接，包括 PLC、HMI、机器人控制器等，简化系统集成。
- 网络互操作性：提高系统的互操作性，实现不同工业协议和设备间的无缝数据传输。
应用场景
- 在不同控制系统和设备之间进行数据传输，适用于需要不同网络协议间转换的场景。
- 工业自动化、生产线管理、数据采集与监控等领域。
- 适用于多协议兼容的工业环境，尤其是在 Profinet 和 EtherNet/IP 之间的集成需求。
技术规格
| 参数 | 规格说明 |
|---|---|
| 型号 | PLX82-EIP-PNC |
| 协议支持 | EtherNet/IP 与 Profinet |
| 接口类型 | RJ45 Ethernet 接口 |
| 数据传输速率 | 10/100 Mbps |
| 供电电压 | 24V DC |
| 工作温度范围 | -25°C 至 +70°C |
| 湿度范围 | 5% 至 95%（无凝结） |
| 尺寸 | 100 mm x 120 mm x 40 mm |
| 安装方式 | DIN 导轨安装 |
| 设备连接 | 支持连接多种设备，如 PLC、HMI、传感器等 |
| 协议转换功能 | 支持从 Profinet 到 EtherNet/IP 或反向转换 |
| 支持的应用协议 | I/O 消息、控制器通讯、数据采集 |
英文资料：
The ProSoft PLX82-EIP-PNC communication module is a high-performance industrial communication module provided by ProSoft Technology, designed specifically for inter device communication in automation systems. The main function of this module is to connect and integrate devices of different brands and types through the EtherNet/IP protocol, especially for communication between devices that support Profinet and EtherNet/IP networks. It can communicate with various PLCs, controllers, and industrial control devices, and is a common interface module in industrial automation.
Product Overview
Function Description
Protocol Conversion: The ProSoft PLX82-EIP-RNC module can perform communication conversion between EtherNet/IP and Profinet networks, allowing Profinet devices and devices in EtherNet/IP networks to exchange data.
Multiple device support: Supports connections for multiple device types, including PLC HMI、 Robot controllers, etc., simplify system integration.
Network interoperability: Improve system interoperability and achieve seamless data transmission between different industrial protocols and devices.
Application scenarios
Data transmission between different control systems and devices is suitable for scenarios that require conversion between different network protocols.
In the fields of industrial automation, production line management, data acquisition and monitoring.
Suitable for multi protocol compatible industrial environments, especially for integration requirements between Profinet and EtherNet/IP.
technical specifications
Parameter specification description
Model PLX82-EIP-NPC
The protocol supports EtherNet/IP and Profinet
Interface type RJ45 Ethernet interface
Data transmission rate 10/100 Mbps
Supply voltage 24V DC
Working temperature range -25 ° C to+70 ° C
Humidity range 5% to 95% (no condensation)
Size 100mm x 120mm x 40mm
Installation method: DIN rail installation
The device connection supports connecting multiple devices, such as PLC HMI、 Sensors, etc
The protocol conversion function supports converting from Profinet to EtherNet/IP or vice versa
Supported application protocols for I/O messages, controller communication, and data collection

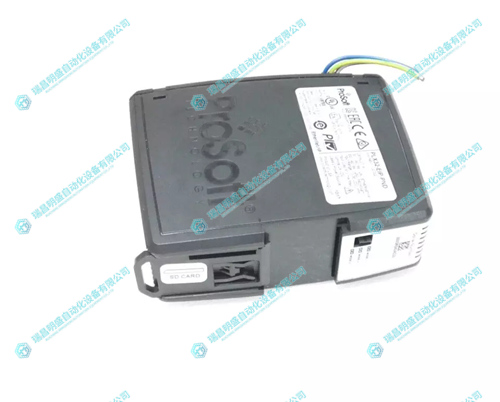

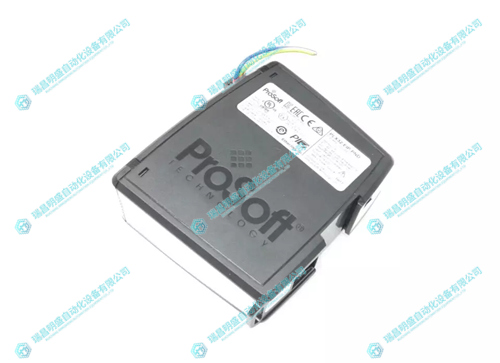

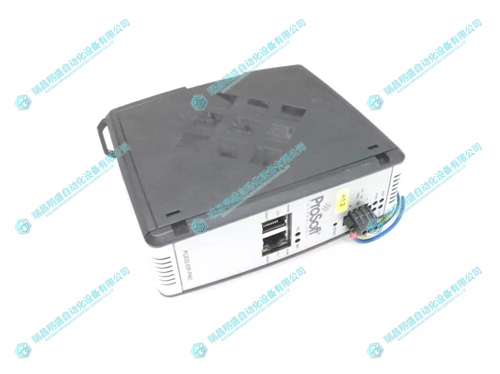

2.产 品 展 示
