GE IC3600EPSB1直流电源供应板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
IC3600EPSB1 直流电源供应板 是 GE（通用电气）Speedtronic 系列控制系统中的一个关键组件，专门用于为系统中的其他模块提供稳定的直流电源。它的作用是将输入的交流电（AC）转换为所需的直流电（DC），为系统中的敏感电子元件提供持续稳定的电力支持。
产品概述
- 型号：IC3600EPSB1
- 类型：直流电源供应板（DC Power Supply Board）
- 功能：
- 将外部交流电源（AC）转换为直流电源（DC），并为控制系统内的其他模块提供所需的电力。
- 提供稳定的电压输出，确保各个模块和电路在工作过程中不会受到电力波动的影响。
技术特点
AC/DC 转换功能：
- IC3600EPSB1 可以将交流电输入（如工业电源电压）转换为直流电源，以适应控制系统的电源需求。
- 确保电力转换过程中的效率与稳定性，避免电压波动对系统产生不利影响。
输出稳定性：
- 提供稳定的直流输出电压，适应 GE Speedtronic 控制系统的工作需求。
- 输出电压通常会根据控制系统的需求进行调节，以保证系统稳定运行。
多重保护机制：
- 内置过载保护、短路保护和过热保护功能，有效避免由于电流过大或过热导致的电源故障。
- 确保电源供应过程中的稳定性，即使在高负载或异常情况下也能够维持正常工作。
紧凑的设计：
- 采用紧凑的电路板设计，方便安装在控制机架或系统控制柜中，节省空间并提高系统的整洁度。
- 板上的连接端口与 Speedtronic 系统兼容，便于安装和更换。
高效能与长寿命：
- 该电源供应板具有较高的转换效率，并能够持续稳定工作多年，降低系统故障率。
- 适用于长时间运行的工业环境，保证设备的持久性。
英文资料：
The IC3600EPSB1 DC power supply board is a critical component in the GE Speedtronic series control system, specifically designed to provide stable DC power to other modules in the system. Its function is to convert the input alternating current (AC) into the required direct current (DC), providing continuous and stable power support for sensitive electronic components in the system.
Product Overview
model: IC3600EPSB1
Type: DC Power Supply Board
Function:
Convert external AC power to DC power and provide the necessary power to other modules within the control system.
Provide stable voltage output to ensure that each module and circuit is not affected by power fluctuations during operation.
Technical features
AC/DC conversion function:
IC3600EPSB1 can convert AC input (such as industrial power voltage) into DC power to meet the power requirements of control systems.
Ensure efficiency and stability during the power conversion process, and avoid adverse effects of voltage fluctuations on the system.
Output stability:
Provide stable DC output voltage to meet the operational requirements of GE Speedtronic control system.
The output voltage is usually adjusted according to the requirements of the control system to ensure stable operation of the system.
Multiple protection mechanisms:
Built in overload protection, short circuit protection, and overheating protection functions effectively prevent power failures caused by excessive current or overheating.
Ensure stability during the power supply process, even under high loads or abnormal conditions, to maintain normal operation.
Compact design:
Adopting a compact circuit board design, it is convenient to install in control racks or system control cabinets, saving space and improving the cleanliness of the system.
The connection ports on the board are compatible with the Speedtronic system, making it easy to install and replace.
High efficiency and long lifespan:
This power supply board has high conversion efficiency and can operate stably for many years, reducing the system failure rate.
Suitable for long-term industrial environments, ensuring the durability of equipment.

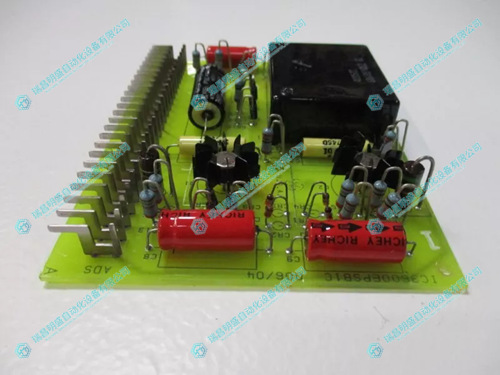

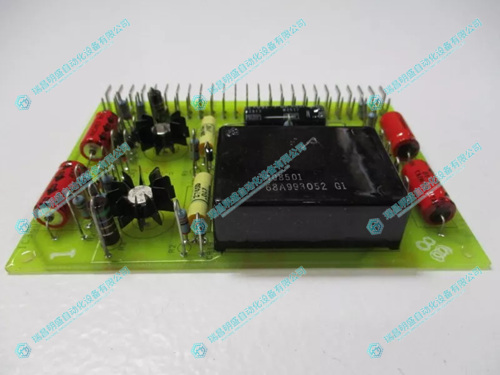

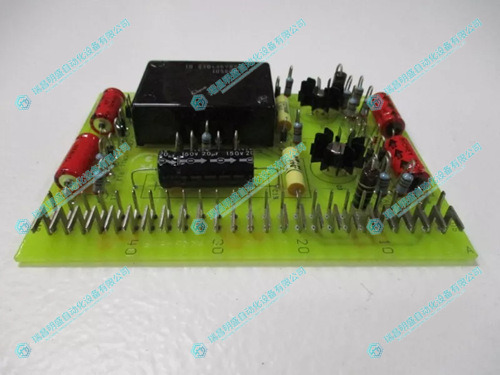

2.产 品 展 示
